SELV bluetooth / mesh > ID series > built-in & independent

Product description

Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certification
Integrated wireless module for wireless ecosystem
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Support real-time data feedback
Smooth dimming with dimming range 1-100% (amplitude dimming)
Loop through connection comply with 2.5 mm² engineering cable entry specifications

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)
166688	ID ECSCB 42/230/300-1050 BH21 NFC MM	42W	220-240VAC 220-240VDC	15-52	300-1050	92%	97 x 43 x 21.4
166718	ID ECSCB 42/230/300-1050 BH21 NFC ML	42W	220-240VAC 220-240VDC	15-52	300-1050	92%	97 x 43 x 21.4
166671	ID ECSCB 28/230/150-700 BH21 NFC MM	28W	220-240VAC 220-240VDC	15-52	150-700	89%	97 x 43 x 21.4
166701	ID ECSCB 28/230/150-700 BH21 NFC ML	28W	220-240VAC 220-240VDC	15-52	150-700	89%	97 x 43 x 21.4

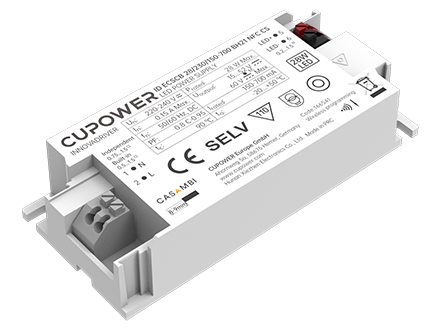

166541	ID ECSCB 28/230/150-700 BH21 NFC CS	28W	220-240VAC 220-240VDC	15-52	150-700	90%	97 x 43 x 21.4
166558	ID ECSCB 42/230/300-1050 BH21 NFC CS	40W	220-240VAC 220-240VDC	15-52	300-1050	89%	97 x 43 x 21.4

Power range:	2-40 W
Adjustable output current:	NFC
Dimming interface:	Bluetooth
Dimming range:	1-100%
Flicker-free:	PstLM＜1, SVM＜0.4
Flicker-freeInput votage shock:	320 V AC, 1 h
Operating temperature range:	Ta -20...+50 ℃
Power factor:	＞ 0.9
Surge protection:	L-N: 1 kV, L/N-GND: 2 kV
Start up time:	＜ 500 ms @ 230 V
Lifetime:	50,000 h
Type of Protection:	I/II
Warranty:	5 year

166541_ID_ECSCB_28_230_150-700_BH21_NFC_CS
166701_ID_ECSCB_28_230_150-700_BH21_NFC_ML
166671_ID_ECSCB_28_230_150-700_BH21_NFC_MM
166718_ID_ECSCB_42_230_300-1050_BH21_NFC_ML
166688_ID_ECSCB_42_230_300-1050_BH21_NFC_MM
166558_ID_ECSCB_42_230_300-1050_BH21_NFC_CS
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

3D_SELV_bluetooth_ID_series_built-in_independent
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
