SELV DALI DT6 > DF series

Product description

Constant current drivers with wide operating windows
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise control of multiple functions
Smooth, flicker free dimming with dimming range 1-100% (amplitude dimming)

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)
162512	XZ-DF54B-540140-BA (DIP-SWITCH)	54 W	120-347VAC	10-54	350-1400	89%	278 x 30 x 21

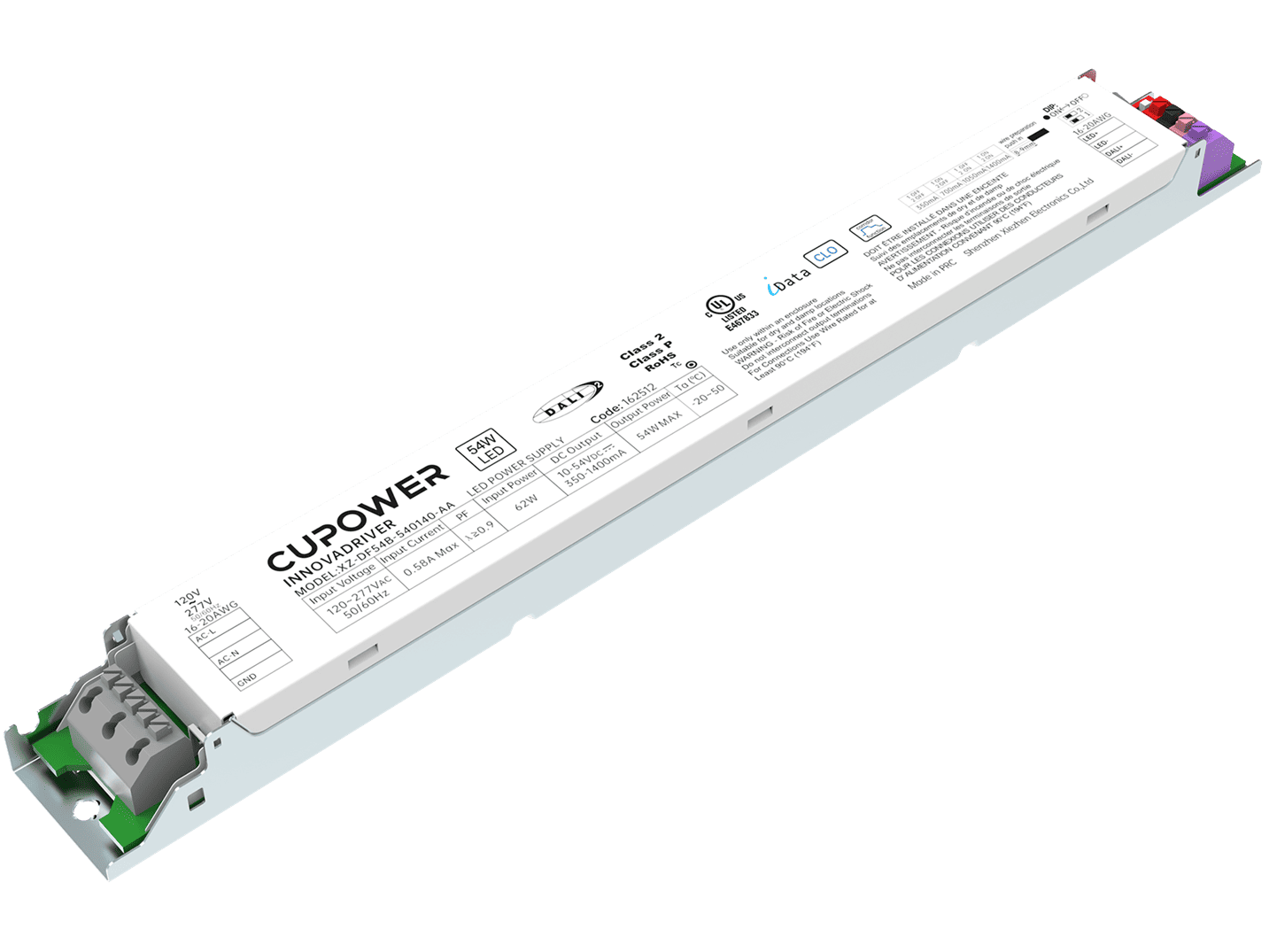

163502	XZ-DF54B-540140-AA (DIP-SWITCH)	54 W	120-277VAC	10-54	350-1400	89%	278 x 30 x 21
163212	XZ-DF54B-540140-BB (NFC)	54 W	120-347VAC	10-54	150-1400	89%	278 x 30 x 21
163205	XZ-DF54B-540140-AB (NFC)	54 W	120-277VAC	10-54	150-1400	89%	278 x 30 x 21

Power range:	54 W
Adjustable output current:	NFC
Dimming interface:	DALI-2
Dimming range:	1...100%
Flicker-free:	/
Flicker-freeInput votage shock:	/
Operating temperature range:	Ta -20...+50 ℃
Power factor:	＞ 0.9
Surge protection:	L-N: 1 kV, L/N-GND: 2 kV
Start up time:	＜ 750 ms @ 120 V, ＜ 500 ms @ 277 V，＜ 500 ms @ 347 V
Lifetime:	50,000 h
Type of Protection:	I
Warranty:	5 year

162512_XZ_DF54B_540140_BA_DIP
163205_XZ_DF54B_540140_AB_NFC
163212_XZ_DF54B_540140_BB_NFC
163502_XZ_DF54B_540140_AA_DIP
Download all

UL_SELV_DALI_DT6_DF_series
Download all

3D_SELV_DALI_DT6_DF_series
Download all

N/A
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
