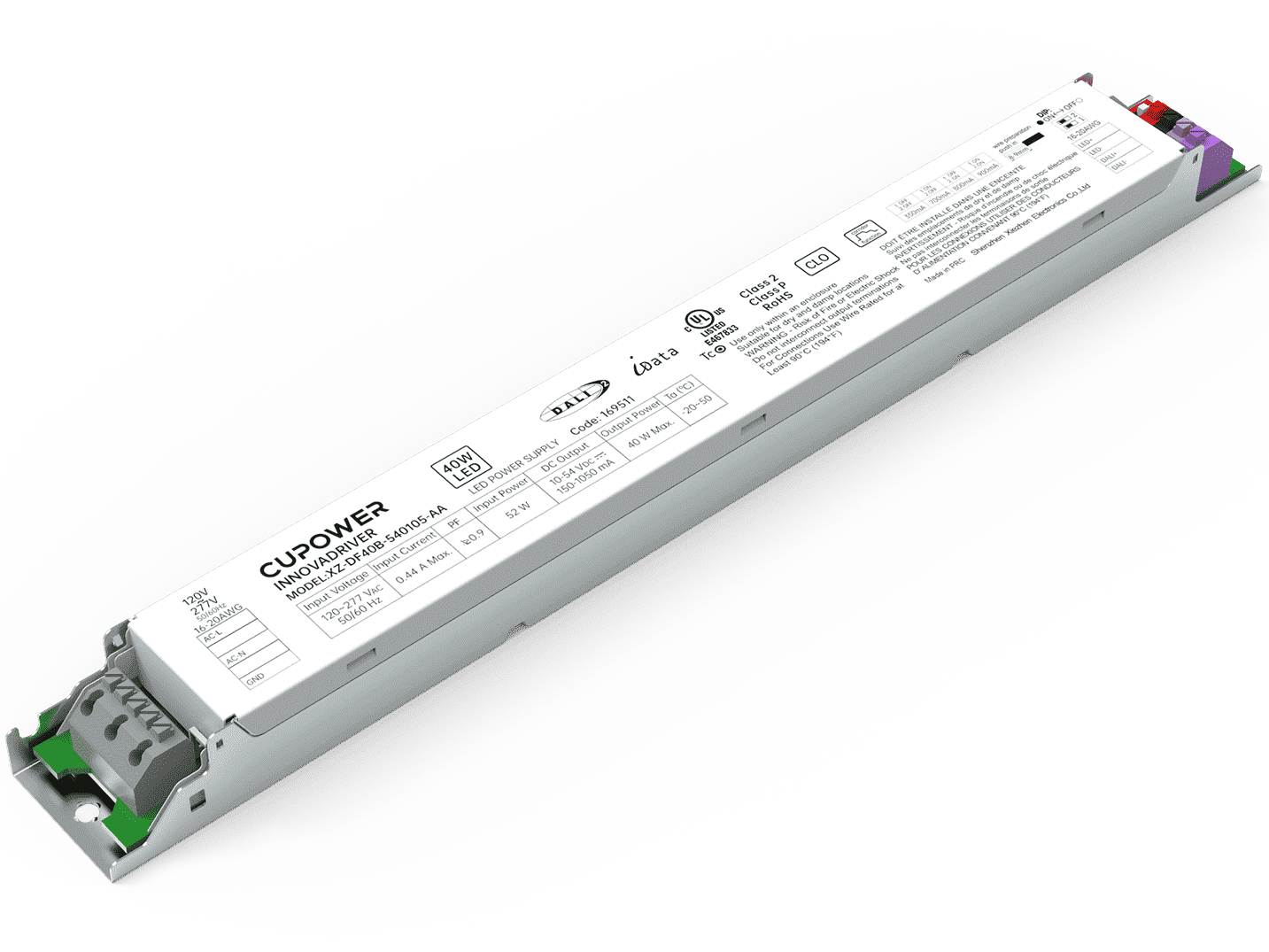

169511 XZ-DF40B-540105-AA

< Back

L278 x W30 x H21 mm

WT: 0.205 kg

Product description

Built-in isolated adjustable power LED driver
Supports DALI-2
Supports i-Data function (DALI part 251, 252, 253)
Flicker-free LED driver
Current adjustment via DIP switch
Output current 350…1050 mA
Max. output power 40 W
Constant lumen output (CLO)
For luminaires with protection class l,class l l
5 years warranty

Swipe for more

Rated input voltage range:	120...277 Vac
Max.input voltage range:	108...305 Vac
Safety frequency range:	50/60 Hz
Rated input current:	0.44 A @ 120 Vac
THD:	≤ 10%
Output current tolerance:	± 5%
Output voltage max.:	60 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.5 W
Output PstLM:	N/A
Output SVM:	N/A
Dimming mode:	N/A
Dimming range:	1%...100%
Adjustable output current:	DIP
Withstand voltage:	I/P-FG:1.8 kVac, < 5 mA 60 s; I/P-DA: 1.8 kVac, < 5 mA 60 s O/P-FG: 0.6 kVac, < 5 mA 60 s; O/P-DA: 0.6 kVac, < 5 mA 60 s DA-FG: 0.6 kVac, < 5 mA 60 s; I/P-O/P: 1.8 kVac, < 5 mA 60 s

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-DF40B-540105-AA	350...1050 mA	120...277 Vac	10...54 V	89%	± 5%	> 0.9

Operating temperature:	-20...+50℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 80℃: 50,000 hrs @ 120 Vac
Maximum Tc temperature:	80℃
