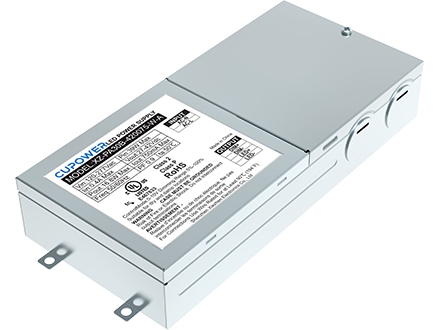

162635 XZ-PA60B-YYYXXX-Y-A

< Back

L188 x W84 x H34.5 mm

WT: N/A

Questions Order a Sample
Product description
• Input voltage coverage of 120-277 V/120-347 V
• Power and color temperature, low flicker, Flicker-free, multiple combinations available
• Various housing combinations: standard, large wiring space, ultra-large wiring space optional
• Input interface: wire, terminal optional
Rated input voltape range:120...277 Vac
Max.input voltage range:108...305 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:50/60 Hz
Rated input current:0.75 A@ 120Vac
THD:≤ 20%
Inrush current [Aµs]:N/A
MCB Quantity B10A:N/A
MCB Quantity C10A:N/A
MCB Quantity C10A:N/A
MCB Quantity B16A:N/A
Output current tolerance:± 5%
Output voltage max:55 V
Ripple:≤ 30%
Standby power consumption:< 0.5 W@120Vac
Output PstLM:N/A
Output SVM:N/A
Dimming mode:0-10 V
Dimming range:7%...100%
Adjustable output current:FIXED
Withstand voltage:I/P-O/P:1.8KVac,<5mA 60 sec;I/P-FG:1.8KVac,<5mA 60 sec;I/P-DIM:1.8KVac,<5mA 60sec;O/P-FG:0.6KVac,<5mA 60sec;DIM-FG:0.6KVac,<5mA 60sec


Model Number
               (Full Model)		output
               Current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent ACCURACYPower Factor
XZ-PA60B-420XXX-Y-A

1150...1500 mA

120...277 Vac27...42 V88%± 5%> 0.9


Operating temperature:-20...+50℃
Storage temperature:-40...+90℃
Working humidity:10%...90%
Store humidity:5%...90%
Driver lifetime:50,000 hrs
Maximum Tc temperature:N/A
Pcs./ carton:32 pcs
carton size:432*357*205 mm
Gross weight:N/A
