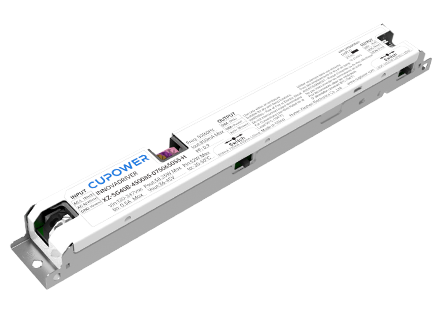

162345 XZ-SG60B-450XXX-VVVWWWZZZ-T

< Back

L267 x W27 x H20 mm

WT: N/A

Questions Order a Sample
Product description
• Input voltage coverage of 120-277 V/120-347 V
• SELV 0/1-10 V dimming solution
• 12 V auxiliary power supply, expandable for various sensors and controllers
• Power and color temperature, low flicker, flicker-free, multiple combinations available
Rated input voltape range:120...347 Vac
Max.input voltage range:108...380 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:50/60 Hz
Rated input current:0.7 A @ 230 Vac
THD:≤ 20%
Inrush current [Aµs]:N/A
MCB Quantity B10A:N/A
MCB Quantity C10A:N/A
MCB Quantity C10A:N/A
MCB Quantity B16A:N/A
Output current tolerance:± 5%
Output voltage max.:55/60 Vdc
Ripple:≤ 5%
Standby power consumption:< 0.5 W @ 120 Vac
Output PstLM:<1 at full load @ rated input voltage
Output SVM:<0.4 at full load @ rated input voltage
Dimming mode:0-10 V
Dimming range:5%...100%
Adjustable output current:DIP
Withstand voltage:I/P-O/P:1.8KVac,<5mA 60 sec;I/P-FG:1.8KVac,<5mA 60 sec;I/P-DIM:1.8KVac,<5mA 60sec;O/P-FG:0.6KVac,<5mA 60sec;DIM-FG:0.6KVac,<5mA 60sec


Model Number
               (Full Model)		output
               Current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent ACCURACYPower Factor
XZ-SC50B-450XXX-VVVWWWZZZ-T

500...1300 mA

120...347 Vac    30...45 V88%± 5%> 0.9


Operating temperature:-20...+66℃
Storage temperature:-40...+85℃
Working humidity:10%...90%
Store humidity:5%...90%
Driver lifetime:at tc<70℃: 50,000 hrs; at tc＜60℃: 100,000 hrs @ 120 Vac
Maximum Tc temperature:70℃
Pcs./ carton60 pcs
carton sizeL332*W297*H186 mm
Gross weightN/A
