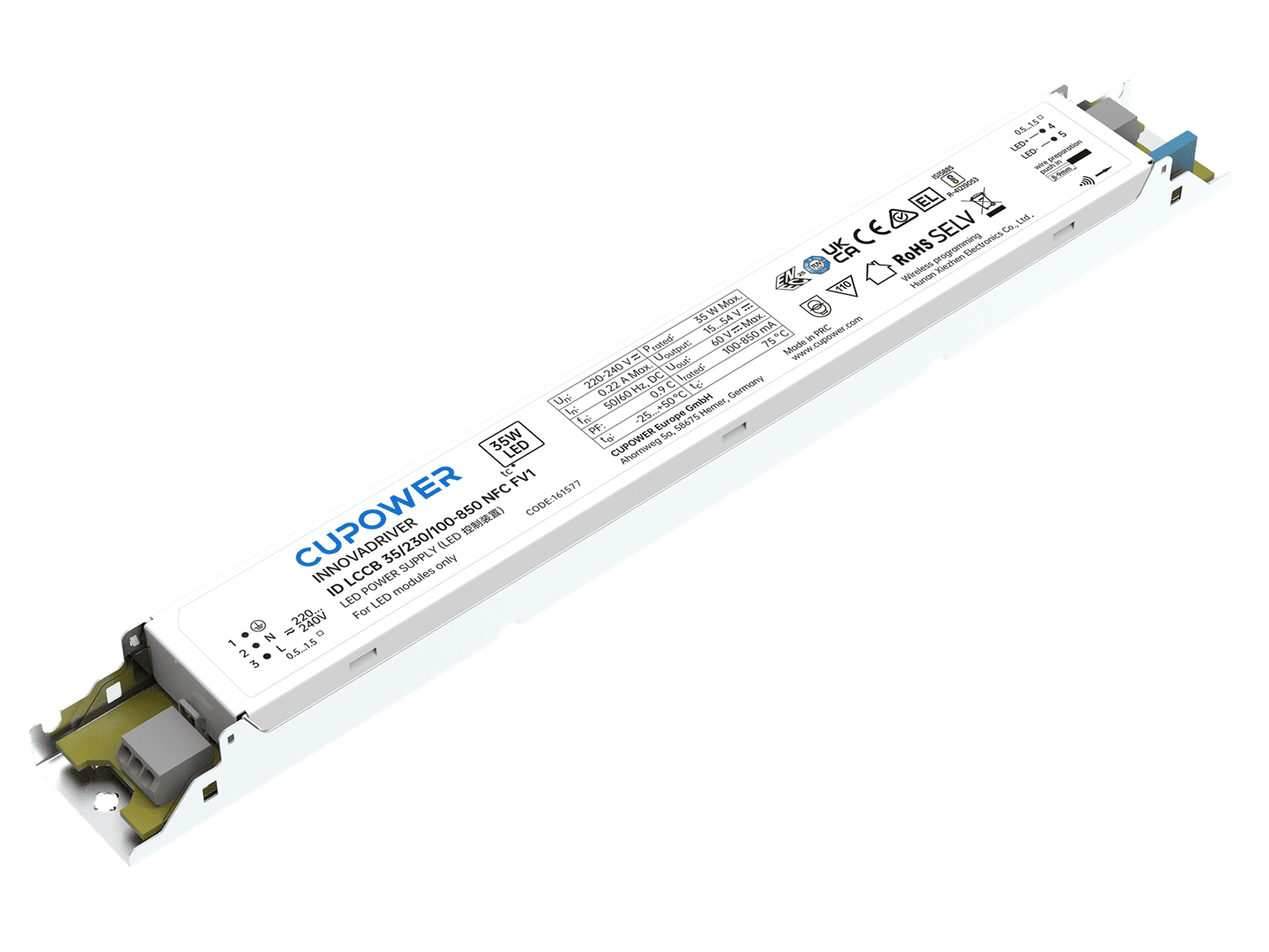

161577 ID LCCB 35/230/100-850 NFC FV1

< Back

L278 x W30 x H21 mm

WT: 0.18kg

Product description

• Constant current driver with wide operating windows
• High power factor
• Flicker-free
• Supports NFC readers for precise control of multiple functions
• Suitable for Class I luminaires

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.22 A@230 Vac
THD:	≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 16.3A、Inrush current Twidth: 204 μs
MCB Quantity B10A:	22
MCB Quantity C10A:	37
MCB Quantity B16A:	35
MCB Quantity C16A:	59
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	60 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	NFC
Withstand voltage:	I/O:3.0kVac, I/FG: 1.5 kVac, O/FG: 1.5 kVac; < 5 mA, 60 sec

Model number
(Full Model)

Output
current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID LCCB 35/230/100-850 NFC FV1

100...850 mA

220...240 Vac

220...240 Vdc

15...54 V

87%

± 5%

> 0.9

Operating temperature:	-20…+50°C
Storage temperature:	-25…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc < 75°C: 50,000 hrs; at Tc 65°C: 100,000 hrs @230Vac
Maximum Tc temperature:	75°C
