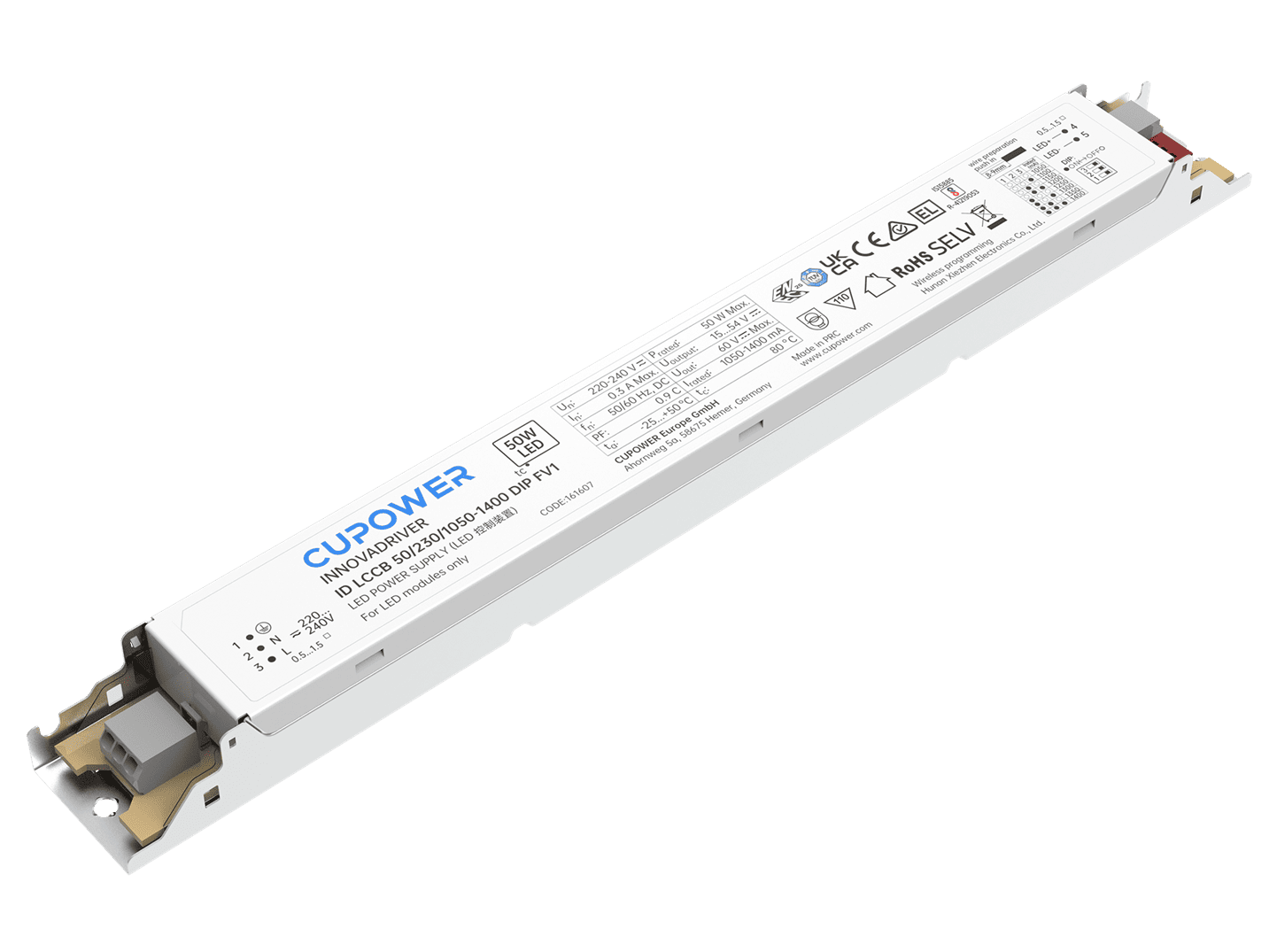

161607 ID LCCB 50/230/1050-1400 DIP FV1

< Back

L278 x W30 x H21 mm

WT: 0.21 kg

Questions Order a Sample
Product description
• Constant current drivers with wide operating windows
• High power factor
• Flicker-free
• DIP switch for multi-current setting
• Suitable for Class I luminaires
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.3 A@230 Vac
THD:≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 21.6A、Inrush current Twidth: 276 μs
MCB Quantity B10A:10
MCB Quantity C10A:17
MCB Quantity B16A:17
MCB Quantity C16A:28
Output current tolerance:± 5% at rated input voltage range
Output voltage max:60 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

I/O:3.0kVac, I/FG: 1.5 kVac, O/FG: 1.5 kVac; < 5 mA, 60 sec

Product nameOutput
                 current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID LCCB 50/230/1050-1400 DIP FV11050...1400 mA

220...240 Vac

220...240 Vac

15...54 V88%± 5%> 0.9


Operating temperature:-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc < 80°C: 50,000 hrs; at Tc 70°C: 100,000 hrs @230 Vac
Maximum Tc temperature:80°C
Pcs./ carton:56 pcs
Carton size:375 x 325 x 185 mm
Gross weight:12.3 kg
