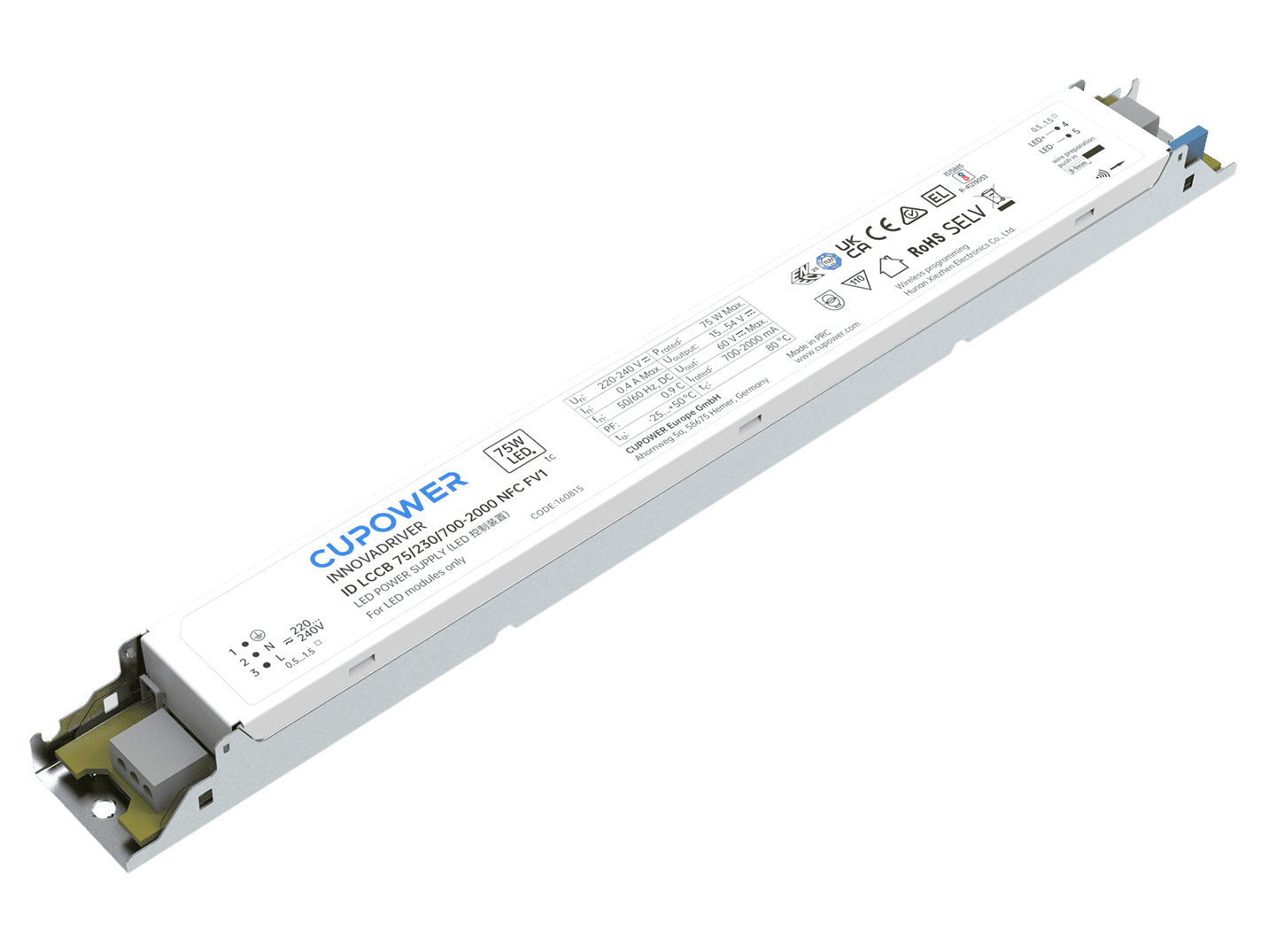

160815 ID LCCB 75/230/700-2000 NFC FV1

< Back

L302 x W30 x H21 mm

WT: 0.308 kg

Product description
• Constant current driver with wide operating windows
• High power factor
• Flicker-free
• Supports NFC readers for precise control of multiple functions
• Suitable for Class I luminaires
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.45 A @ 230 Vac
THD:≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 24.5A, Inrush current Twidth: 312 μs
MCB Quantity B10A:8
MCB Quantity C10A:13
MCB Quantity B16A:13
MCB Quantity C16A:22
Output current tolerance:± 5% at rated input voltage range
Output voltage max:60 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:NFC
Withstand voltage:

I/O:3.0kVac, I/FG: 1.5 kVac, O/FG: 1.5 kVac; < 5 mA, 60 sec

Model number
               (Full Model)
Output
                 current
Input
               voltage
Output
               voltage
Efficiency                @full loadCurrent accuracyPower factor
ID LCCB 75/230/700-2000 NFC FV1700...2000 mA

220...240 Vac

220...240 Vdc

15...54 V88%± 5%> 0.9


Operating temperature:-20…+50°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc < 80°C: 50,000 hrs; at Tc 70°C: 100,000 hrs @230Vac
Maximum Tc temperature:80°C
Pcs./ carton:40 pcs
Carton size:352 x 277 x 185 mm
Gross weight:10.6 kg
