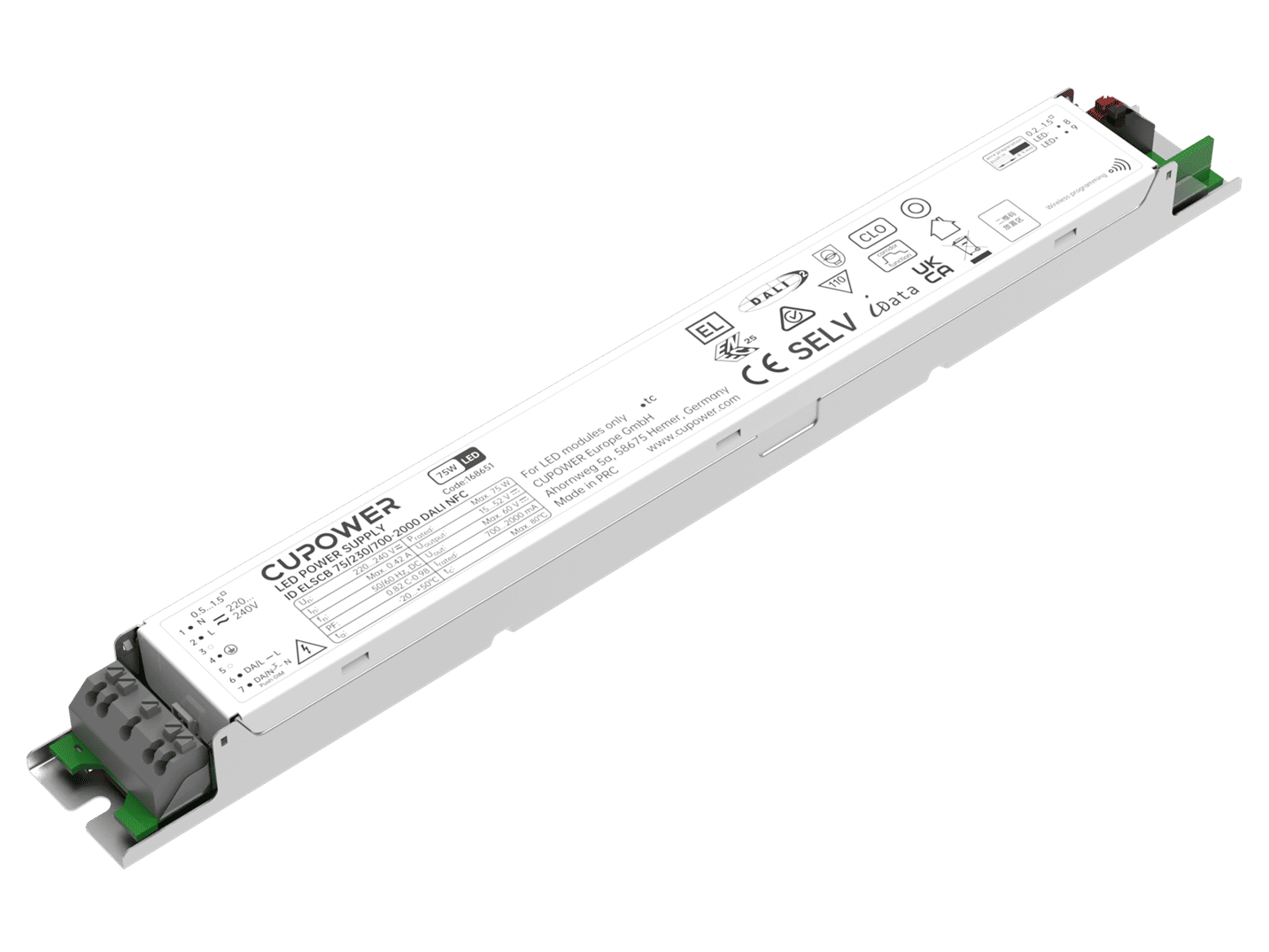

168651 ID ELSCB 75/230/700-2000 DALI NFC

< Back

L278 x W30 x H21 mm

WT: 0.214 kg

Product description

Built-in isolated adjustable power LED driver
Supports DALI-2, push DIM control
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 700…2000 mA
Max. output power 75 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Constant lumen output (CLO)
For luminaires with protection class l
5 years warranty

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176…276 Vdc; operational safety range
Safety frequency range:	0/50/60 Hz
Rated input current:	0.42 A @ 230 Vac & 0.42 A @ 230 Vdc
THD:	≤ 10%
Inrush current:	46.6 A, 149 μs
MCB Quantity B10A:	15
MCB Quantity C10A:	22
MCB Quantity B16A:	24
MCB Quantity C16A:	35
Output current tolerance:	± 5%
Output voltage max.:	≤ 60 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	˂ 0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2, push dimming
Dimming range:	1%...100% （7...2000 mA)
Adjustable output current:	NFC
Withstand voltage:	l/p-FG: 1.5 kVac, < 5 mA 60 s; I/p-DA: 1.5 kVac, < 5 mA 60 s l/p-O/p: 3.75 kVac, < 5 mA 60 s, O/p-DA: 1.5 kVac, < 5 mA 60 s O/p-FG: 1.5 kVac, < 5 mA 60 s, DA-FG: 1.5 kVac, < 5 mA 60 s

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELSCB 75/230/700-2000 DALI NFC

700...2000 mA

220...240 Vac

220...240 Vdc

15...52 V

91%

± 5%

0.9 (Output Power > 30 W)

Operating temperature:	-20…+50℃
Storage temperature:	-25…+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 75℃: 50,000 hrs; at Tc 65℃: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	80℃
