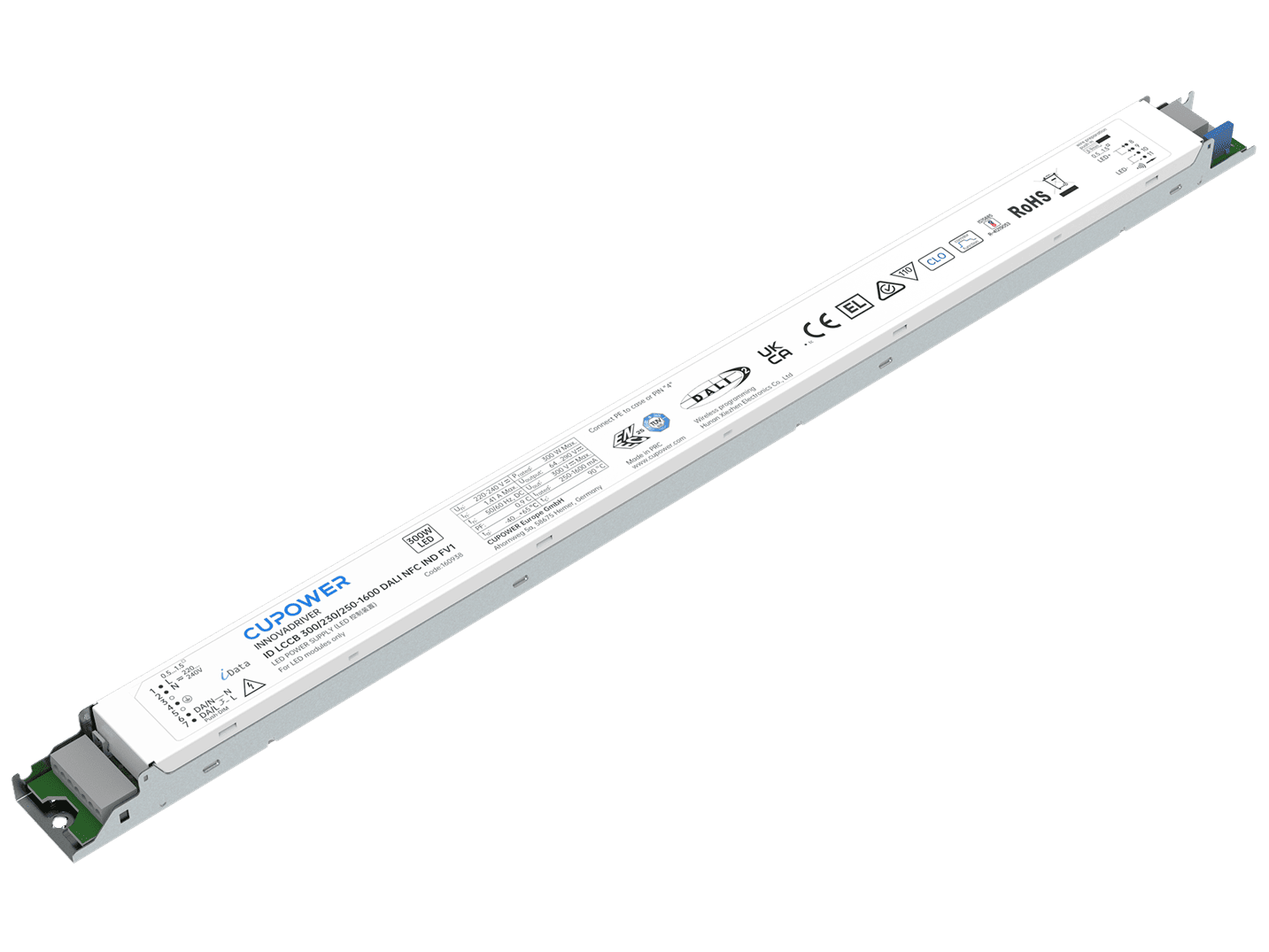

160938 ID LCCB 300/230/250-1600 DALI NFC IND FV1

< Back

L480 x W30 x H21 mm

WT: 0.48 kg

Product description

Constant current drivers with wide operating windows
Supports DALI-2 and push DIM
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Smooth dimming with dimming range 1-100% (amplitude dimming)
Standby power consumption < 0.3 W, meets ErP energy efficiency certification
High surge protection L-N: 4 kV, L/N-GND: 4 kV
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	1.41 A @ 230 Vac
THD:	≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 15.5 A; Inrush current Twidth: 126 μs
MCB Quantity B10A:	6
MCB Quantity C10A:	6
MCB Quantity B16A:	10
MCB Quantity C16A:	10
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	300 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/P-FG: 1.5 kVac, < 5 mA 60 sec

Model Number
(Full Model)

output
Current

Input
voltage

Output
voltage

Efficiency @full load

Current ACCURACY

Power Factor

ID LCCB 300/230/250-1600 DALI NFC IND FV1

250...1600 mA

220...240 Vac

220...240 Vdc

64...290 V

95%

± 5%

> 0.9

(@ 75...300 W)

Operating temperature:	-40…+65°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc < 85°C: 50,000 hrs;
Maximum Tc temperature:	90°C

Pcs./ carton:	20 pcs
carton size:	500 x 128 x 128 mm
Gross weight:	11 kg
