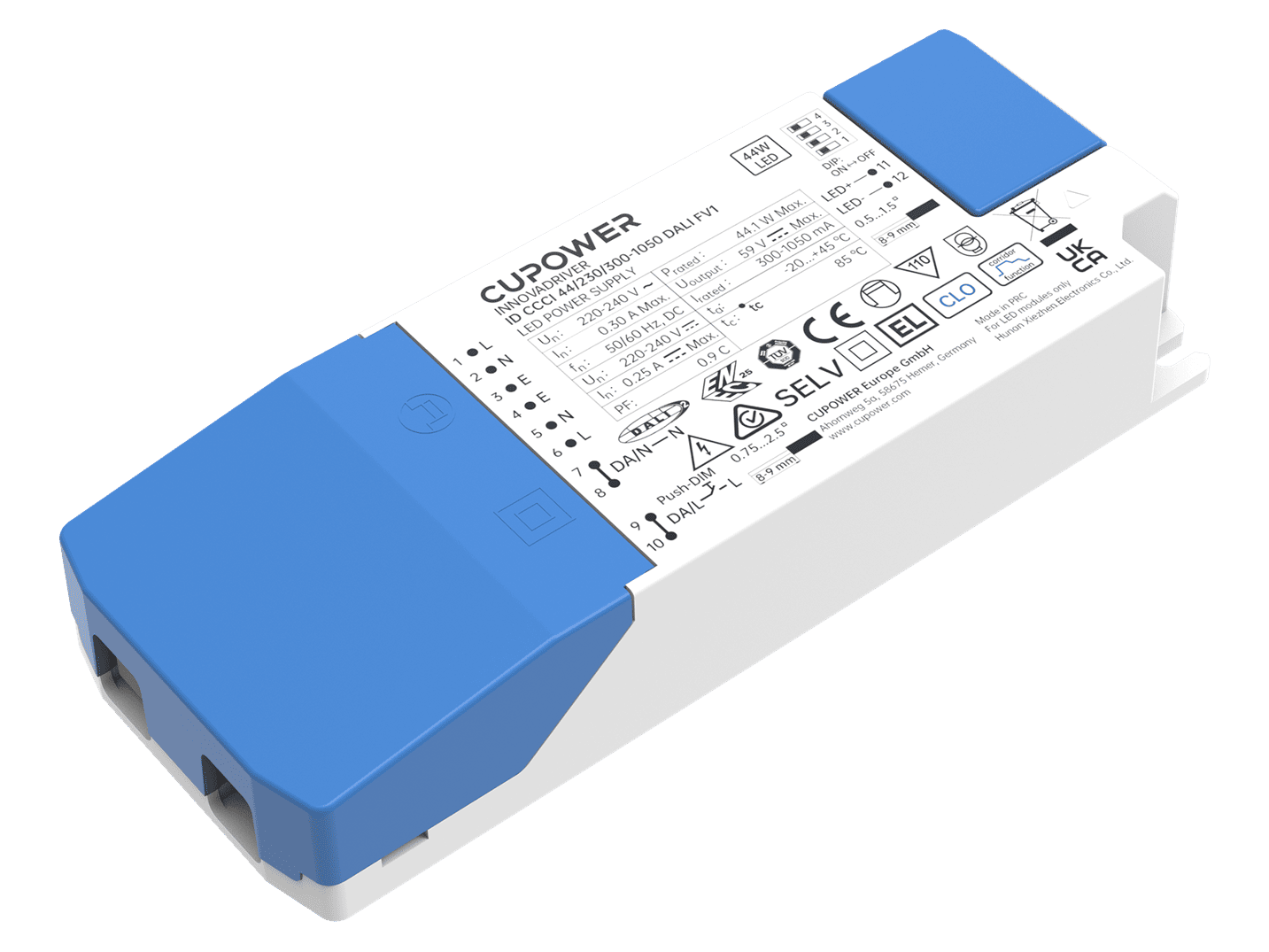

160709 ID CCCI 44/230/300-1050 DALI FV1

< Back

L170 x W65 x H30 mm

WT: 0.188 kg

Product description

Constant current driver with wide operating windows
Supports DALI-2 and push DIM
Smooth dimming with dimming range 1-100% (amplitude dimming)
DIP switch for multi-current setting
Complies with IEC/EN 60598-1, including cotton cover test requirements (maximum current 950 mA for 40W)
Loop through connection comply with 2.5mm² engineering cable entry specifications
Standby power consumption ﹤ 0.5 W, meets ErP energy efficiency certification

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.3 A @ 230 Vac
THD:	≤ 15%
Inrush current [Aµs]:	Inrush current lpeak: 5.6 A Inrush current Twidth: 50 μs
MCB Quantity B10A:	41
MCB Quantity C10A:	41
MCB Quantity B16A:	66
MCB Quantity C16A:	66
Output current tolerance :	± 5%
Output voltage max.:	59 Vdc
Ripple:	≤ 5%
Standby power consumption:	≤ 0.5 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	1％...100％
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.0 kVac, < 5 mA 60 sec; I/P-DA/P: 1.5 kVac, < 5 mA 60 sec;O/P-DA/P: 1.5 kVac, < 5 mA 60 sec

Model Number

(Full Model)

output

Current

Input

voltage

Output

voltage

Efficiency
@full load

Current ACCURACY

Power Factor

ID CCCI 44/230/300-1050 DALI FV1

300...1050 mA

220...240 Vac

220...240 Vdc

6...52 V

88%

± 5%

> 0.9

Operating temperature:	-20…+45°C
Storage temperature:	-40…+80°C
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 85°C: 50,000 hrs; at Tc＜75°C: 100,000 hrs @230 Vac
Maximum Tc temperature:	85°C
