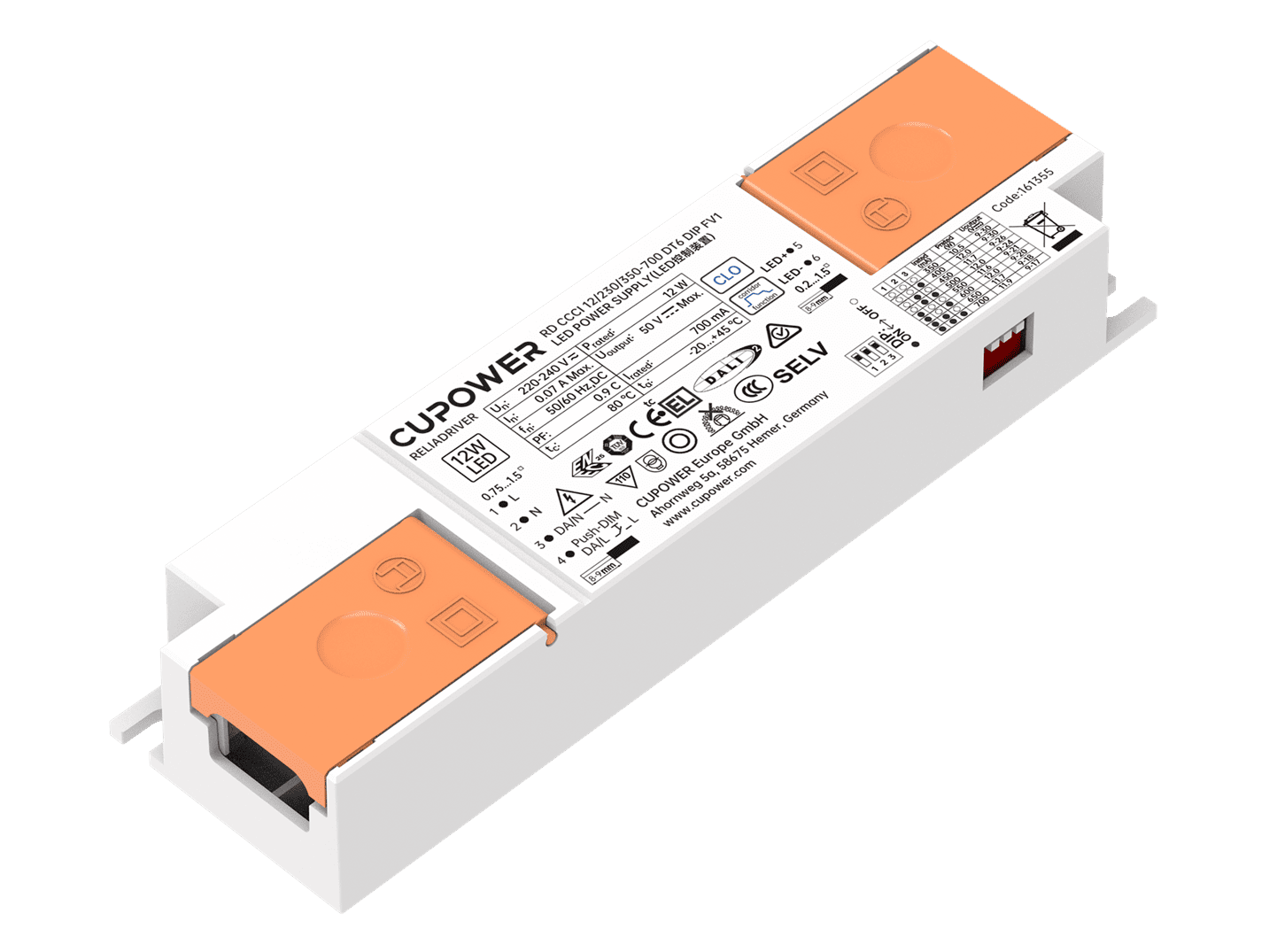

161362 RD CCCI 12/230/350-700 DT6 DIP FV1

< Back

L133 x W38 x H21 mm

WT: 0.07 kg

Product description

• Constant current driver with wide operation windows
• Supports DALI-2 and push DIM
• Smooth dimming with dimming range 0.1-100%
• DIP switch for multi-current setting
• Standby power consumption < 0.5 W, meets ErP energy efficiency certification
• For 1.5 mm2 wiring on primary and secondary side

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vac
DC operation voltage range:	198...278 Vac
Safety frequency range:	0/50/60 Hz
Rated input current:	0.07 A @ 230 Vac
THD:	≤ 10%
Inrush current :	Inrush current lpeak: 4.77 A、Inrush current Twidth: 35 μs
MCB Quantity B10A:	127
MCB Quantity C10A:	127
MCB Quantity B16A:	203
MCB Quantity C16A:	203
Output current tolerance:	± 5%
Output voltage max:	50 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.5 W
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	0.1％...100％
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75KVac,＜5mA 60 sec,I/P-DA: 1.5KVac,＜5mA 60 sec；O/P-DA: 1.5VKac,＜5mA 60 sec

Model Number

(Full Model)

output

Current

Input

voltage

Output

voltage

Efficiency
@full load

Current ACCURACY

Power Factor

RD CCCI 12/230/350-700 DT6 DIP FV1

350...700 mA

220...240 Vac

220...240 Vdc

9...30 V

84.5% at 400mA

81.5% at 700mA

± 5%

> 0.9

Operating temperature:	-20…+45°C
Storage temperature:	-25…+85°C
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc < 80°C: 50,000 hrs; at Tc＜70°C: 100,000 hrs @230 Vac
Maximum Tc temperature:	80°C
