• Push terminal design, easy to install
• High power factor, suitable for Class II luminaires
• SELV 1-10 V dimming solution
• Smooth dimming with dimming range 5-100% (amplitude dimming)
• DIP switch for multi-current setting
• Suitable for Class II luminaires
• For 1.5 mm² wiring on primary and secondary side
Rated input voltape range:
220...240 Vac
Max.input voltage range:
198...264 Vac
Rated input current DC range:
N/A
DC operation voltage range:
N/A
Safety frequency range:
50/60 Hz
Rated input current:
0.17 A @ 230 Vac
THD:
≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:
Inrush current lpeak: 9.2 A、Inrush current Twidth: 90 μs
MCB Quantity B10A:
63
MCB Quantity C10A:
63
MCB Quantity B16A:
101
MCB Quantity C16A:
101
Output current tolerance:
± 5%
Output voltage max:
59 Vdc
Ripple:
≤ 5%
Standby power consumption:
< 0.5 W
Output PstLM:
<1 at full load @ rated input voltage
Output SVM:
<0.4 at full load @ rated input voltage
Dimming mode:
1-10V
Dimming range:
1%...100%
Adjustable output current:
DIP
Withstand voltage:
I/P-O/P: 3.75 KVac,< 5 mA 60 sec, I/P-DA: 1.5 KVac,< 5 mA 60 sec; O/P-DA: 1.5 KVac,< 5 mA 60 sec
Model Number
(Full Model)
output
Current
Input
voltage
Output
voltage
Efficiency
@full load
Current ACCURACY
Power Factor

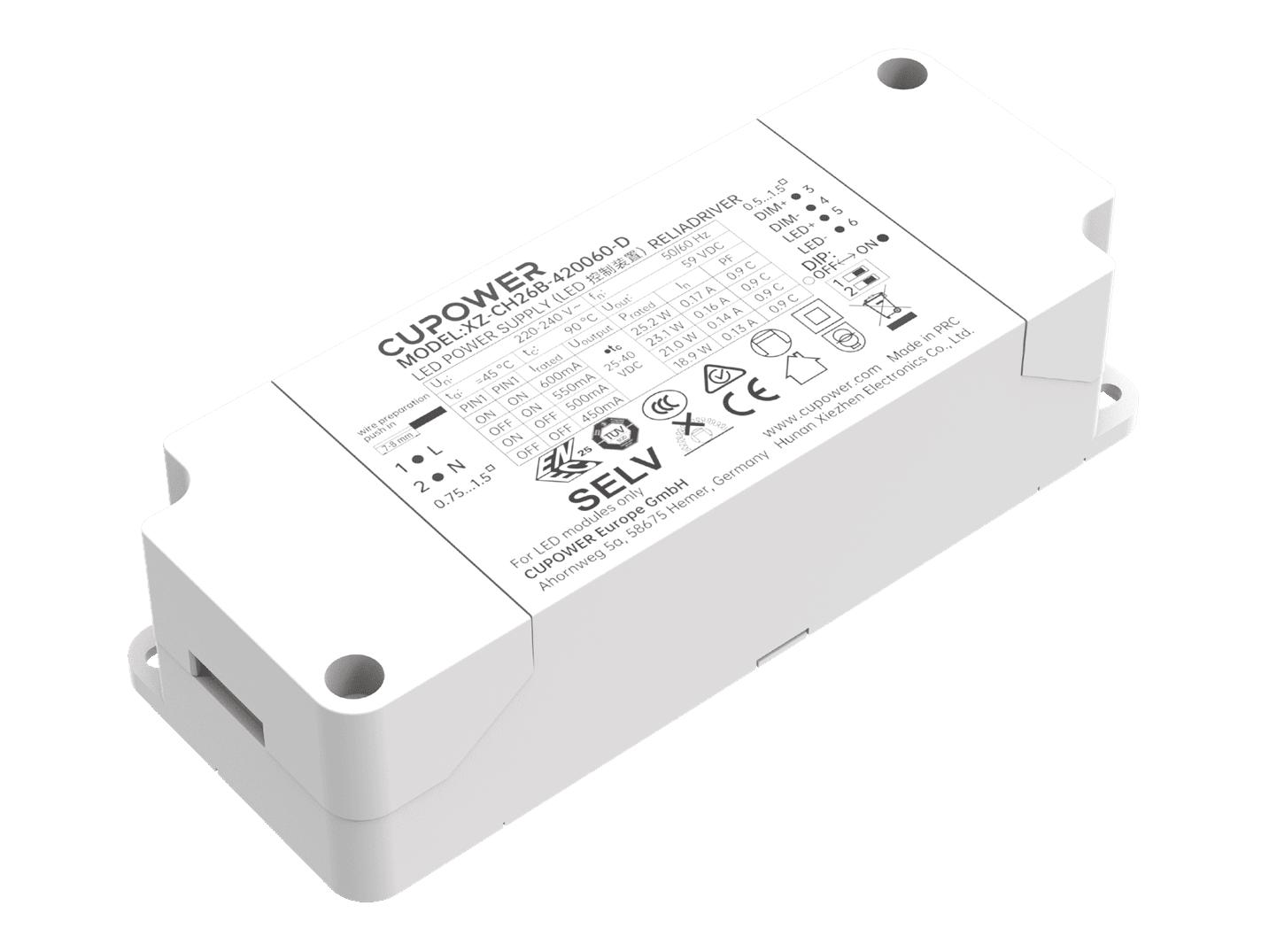

XZ-CH26B-420060-D
450...600 mA
220...240 Vac
30...42 V
85%
± 5%
>0.9
Operating temperature:
-20…+45°C
Storage temperature:
-40…+85°C
Working humidity:
10%…90%
Store humidity:
5%...90 %
Driver lifetime:
at Tc < 85°C: 30,000 hrs; at Tc 75°C: 50,000 hrs @230 Vac
