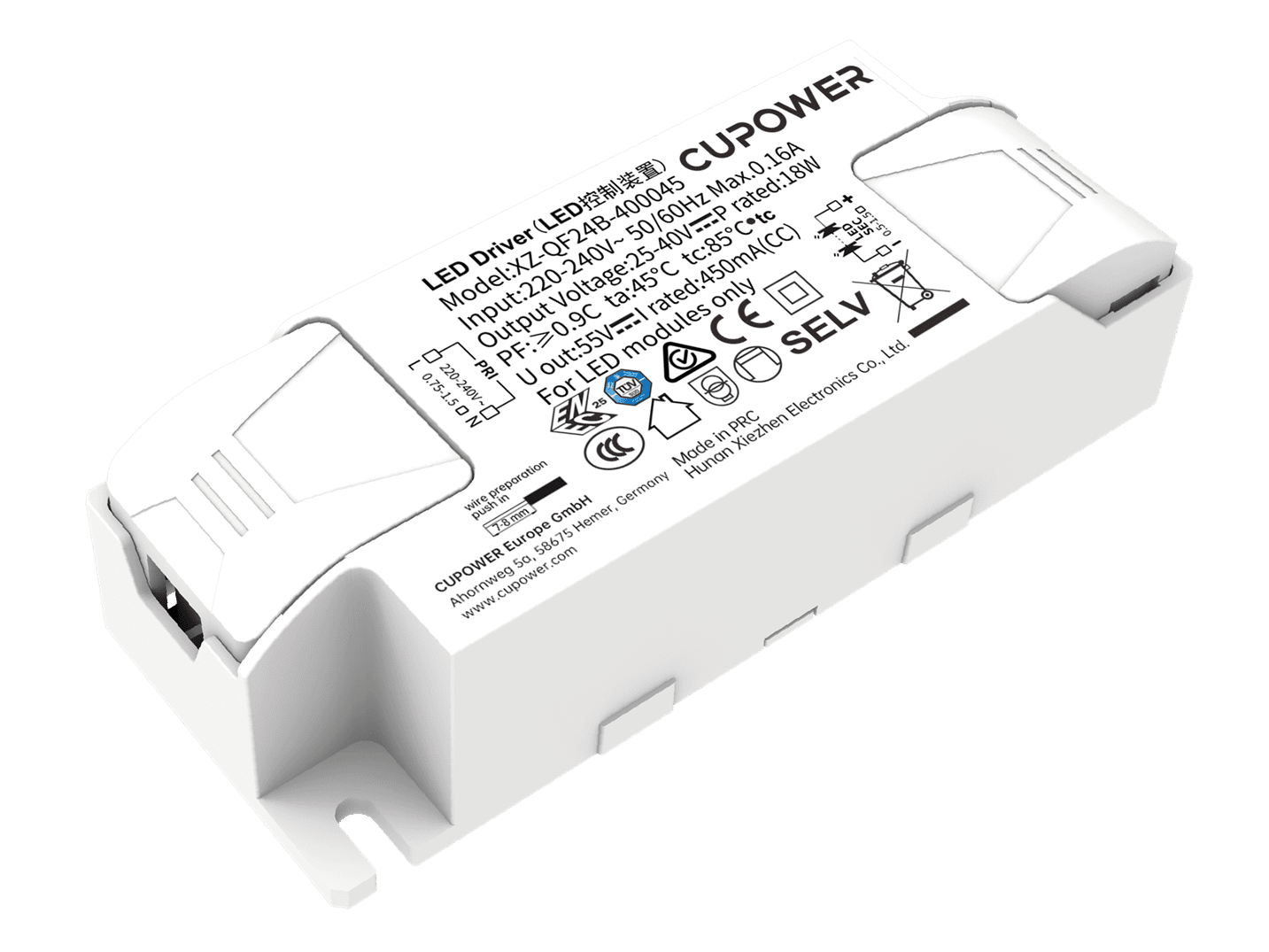

161751 XZ-QF24B-400XXX

< Back

L93 x W36 x H24.5 mm

WT: 0.055 kg

Product description
• SELV power supply
• High power factor
• Flicker-free
• Push terminal design, easy to install
• Suitable for Class II luminaires
• For 1.5 mm² wiring on primary and secondary side
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:50/60 Hz
Rated input current:0.16 A @ 230 Vac
THD:≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 4.4 A、Inrush current Twidth: 39 μs
MCB Quantity B10A:73
MCB Quantity C10A:73
MCB Quantity B16A:117
MCB Quantity C16A:117
Output current tolerance:± 5% at rated input voltage range
Output voltage max:55 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:< 1 at full load @ rated input voltage
Output SVM:< 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:FIXED
Withstand voltage:

I/P-O/P: 3.75 KVac,< 5 mA 60 sec, I/P-DA: 1.5 KVac,< 5 mA 60 sec; O/P-DA: 1.5 KVac,< 5 mA 60 sec

Model Number
               (Full Model)
output
               Current
Input
               voltage
Output
               voltage
Efficiency                @full loadCurrent ACCURACYPower Factor
XZ-QF24B-400XXX360...450 mA

220...240 Vac

25...40 V83%± 5%> 0.9


Operating temperature:-20…+45°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%…90%
Driver lifetime:at Tc < 85°C: 30,000 hrs; at Tc 75°C: 50,000 hrs @230 Vac
Maximum Tc temperature:85°C
Pcs./ carton:80 pcs
carton size:300 x 252 x 180 mm
Gross weight:4.9 kg
