SELV power supply
High power factor
Flicker-free
Loop through connection comply with 2.5mm² engineering cable entry specifications
Supports 3-step color temperature selection via sliding switch (CCT selection)
Complies with IEC/EN 60598-1, including cotton cover test requirements (maximum current 850 mA)
Suitable for Class I/II luminaires
Suitable for DC operation
Rated input voltape range:
220...240 Vac
Max.input voltage range:
198...264 Vac
Rated input current DC range:
220...240 Vdc
DC operation voltage range:
198...278 Vdc
Safety frequency range:
0/50/60 Hz
Rated input current:
0.3 A @ 230 Vac
THD:
≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:
Inrush current lpeak: 16.2 A、Inrush current Twidth: 294 μs
MCB Quantity B10A:
14
MCB Quantity C10A:
24
MCB Quantity B16A:
23
MCB Quantity C16A:
39
Output current tolerance:
± 5%
Output voltage max:
60 Vdc
Ripple:
≤ 5%
Standby power consumption:
N/A
Output PstLM:
<1 at full load @ rated input voltage
Output SVM:
<0.4 at full load @ rated input voltage
Dimming mode:
N/A
Dimming range:
N/A
Adjustable output current:
DIP
Withstand voltage:
I/P-O/P: 3.75 KVac, ＜ 5 mA 60 sec
Model Number
(Full Model)
output
Current
Input
voltage
Output
voltage
Efficiency
@full load
Current ACCURACY
Power Factor

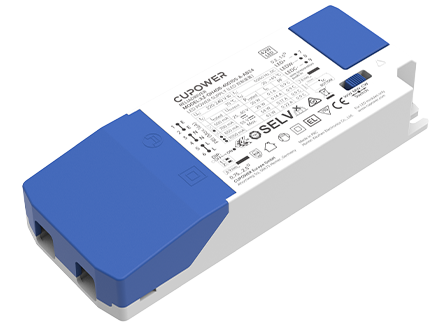

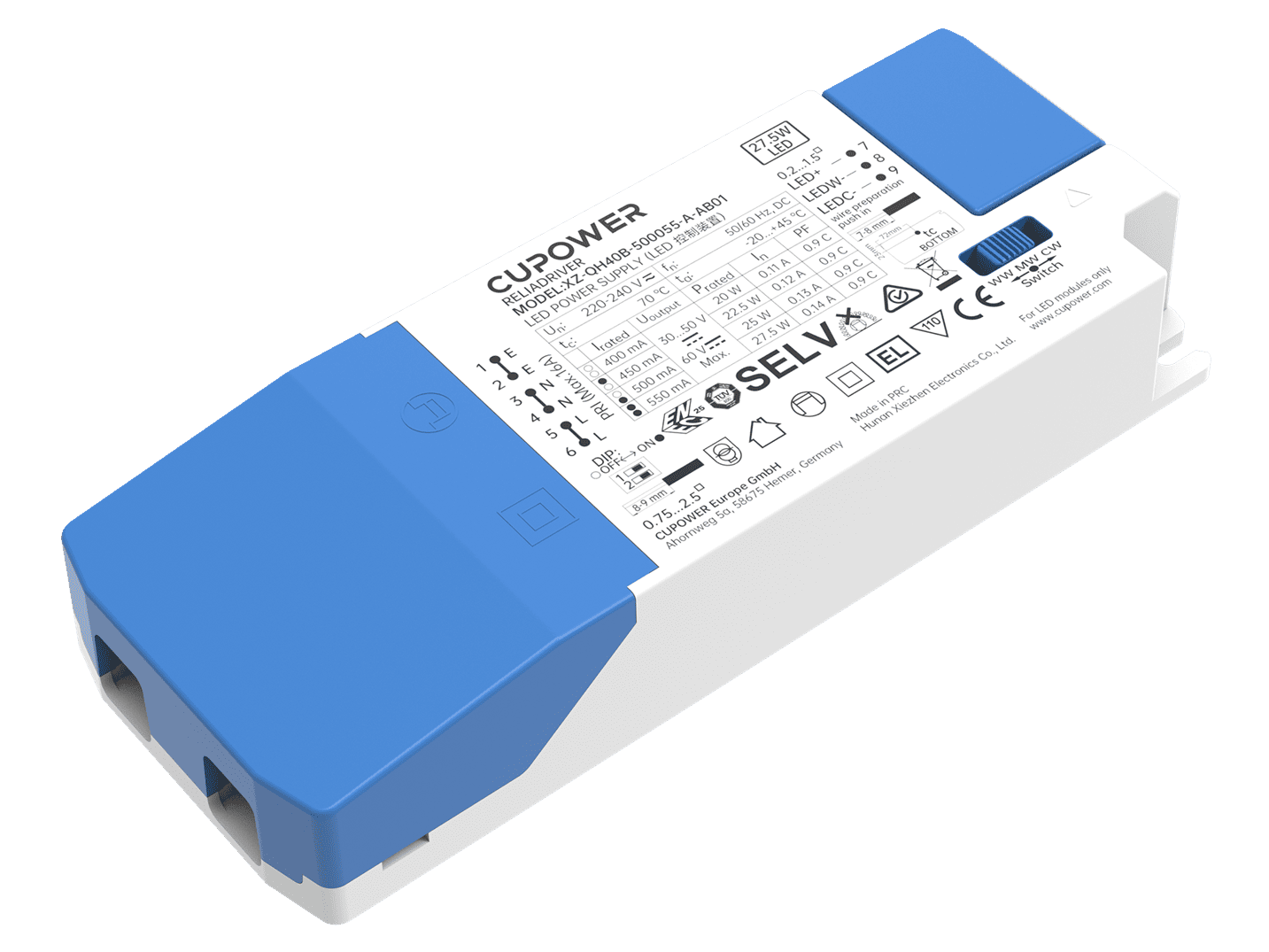

XZ-QH40B-500XXX-A-AB
400...800 mA
220...240 Vac
30...50 Vdc
89%
± 5%
＞0.9
Operating temperature:
-20…+45°C
Storage temperature:
-40…+85°C
Working humidity:
10%…90%
Store humidity:
5%...90%
Driver lifetime:
at Tc < 70°C: 50,000 hrs; at Tc 60°C: 100,000 hrs @230 Vac
