High power factor
Flicker-free
Push terminal design, easy to install
High efficiency, up to 92%
Suitable for Class II luminaires
For 1.5 mm2 wiring on primary and secondary side
Rated input voltape range:
220...240 Vac
Max.input voltage range:
198...264 Vac
Rated input current DC range:
N/A
DC operation voltage range:
N/A
Safety frequency range:
50/60 Hz
Rated input current:
0.23 A @ 230 Vac
THD:
10% at 38 Vdc load @ rated input voltage range
Inrush current [Aµs]:
Inrush current lpeak: 37.4A、Inrush current Twidth: 105 μs
MCB Quantity B10A:
17
MCB Quantity C10A:
28
MCB Quantity B16A:
27
MCB Quantity C16A:
45
Output current tolerance:
± 5% at rated input voltage range
Output voltage max:
55 Vdc
Ripple:
5% (ripple = peak/average total 100 Hz)
Standby power consumption:
N/A
Output PstLM:
≤ 1 at full load @ rated input voltage
Output SVM:
≤ 0.4 at full load @ rated input voltage
Dimming mode:
N/A
Dimming range:
N/A
Adjustable output current:
N/A
Withstand voltage:
l/p-O/p: 3.75 kVac, < 5 mA 60 sec
Model Number
(Full Model)
output
Current
Input
voltage
Output
voltage
Efficiency
@full load
Current ACCURACY
Power Factor

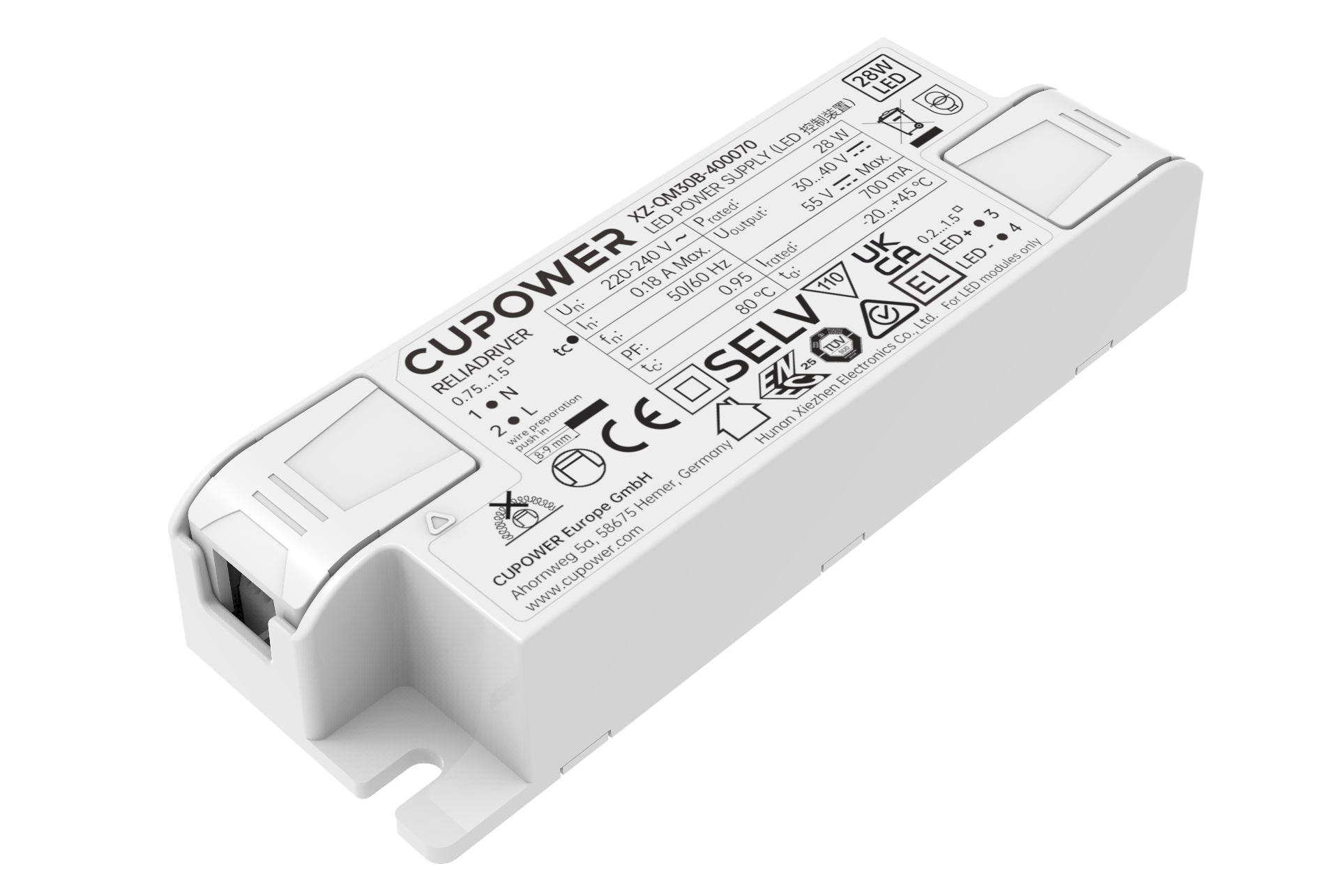

XZ-QM30B-400XXX
500...700 mA
220...240 Vac
30...40 V
91%
± 5%
≥ 0.95
Operating temperature:
-20…+45°C
Storage temperature:
-25…+85°C
Working humidity:
10%…90%
Store humidity:
5%…95%
Driver lifetime:
at Tc < 80°C: 30,000 hrs; at Tc 70°C: 50,000 hrs @230 Vac
