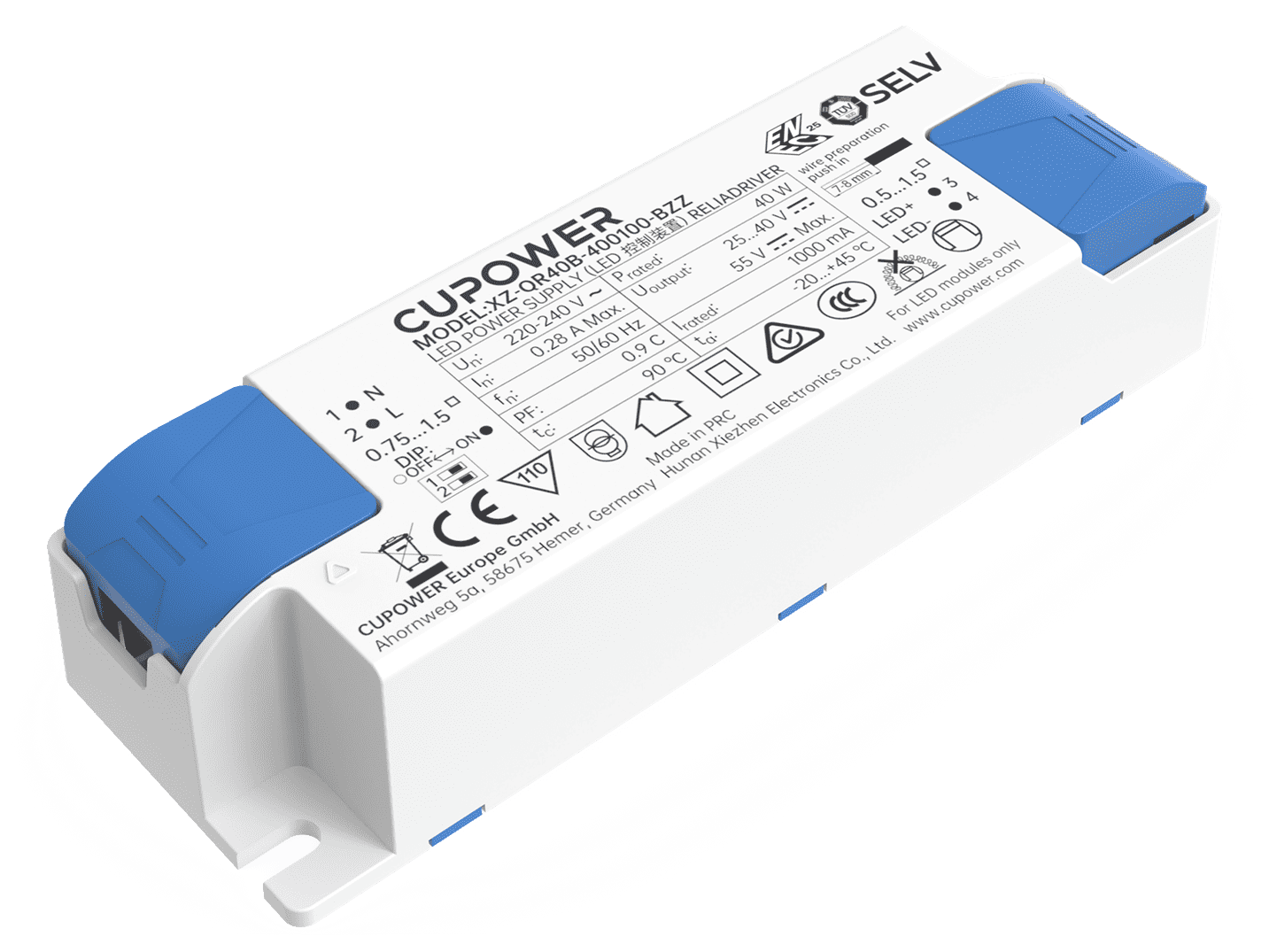

161775 XZ-QR40B-400XXX-BZZ

< Back

L122 x W40.5 x H26 mm

WT: 0.099 kg

Product description
SELV power supply
High power factor
Flicker-free
Push terminal design, easy to install
Suitable for Class II luminaires
For 1.5 mm² wiring on primary and secondary side
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:N/A
DC operation voltage range:N/A
Safety frequency range:50/60 Hz
Rated input current:0.3 A @ 230 Vac
THD:≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:Inrush current lpeak: 22.2 A、Inrush current Twidth: 210 μs
MCB Quantity B10A:13
MCB Quantity C10A:23
MCB Quantity B16A:22
MCB Quantity C16A:36
Output current tolerance:± 5% at rated input voltage range
Output voltage max:55 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:< 1 at full load @ rated input voltage
Output SVM:< 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

I/P-O/P: 3.75 KVac,< 5 mA 60 sec, I/P-DA: 1.5 KVac,< 5 mA 60 sec; O/P-DA: 1.5 KVac,< 5 mA 60 sec

Model Number
               (Full Model)
output
               Current
Input
               voltage
Output
               voltage
Efficiency                @full loadCurrent ACCURACYPower Factor
XZ-QR40B-400XXX-BZZ750-1050 mA

220-240 Vac

25-40 V88%±5%>0.9


Operating temperature:-20…+45°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%...90%
Driver lifetime:at Tc < 90°C: 30,000 hrs; at Tc 80°C: 50,000 hrs @230Vac
Maximum Tc temperature:90°C
Pcs./ carton:90 pcs
carton size:377 x 252 x 163 mm
Gross weight:9.1 kg
