• SELV power supply
• Suitable for Class II luminaires
• Flicker-free
• DIP switch for multi-current setting
• Supports 3-step color temperature selection via sliding switch (optional)
• For 1.5 mm² wiring on primary and secondary side
Rated input voltape range:
220...240 Vac
Max.input voltage range:
198...264 Vac
Rated input current DC range:
N/A
DC operation voltage range:
N/A
Safety frequency range:
50/60 Hz
Rated input current:
0.24 A @ 230 Vac
THD:
≤ 15%
Inrush current [Aµs]:
Inrush current lpeak: 14.4 A、Inrush current Twidth: 235 μs
MCB Quantity B10A:
18
MCB Quantity C10A:
31
MCB Quantity B16A:
30
MCB Quantity C16A:
50
Output current tolerance:
± 5%
Output voltage max:
55 Vdc
Ripple:
≤ 5%
Standby power consumption:
N/A
Output PstLM:
< 1 at full load @ rated input voltage
Output SVM:
< 0.4 at full load @ rated input voltage
Dimming mode:
N/A
Dimming range:
N/A
Adjustable output current:
DIP
Withstand voltage:
I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec
Model Number
(Full Model)
output
Current
Input
voltage
Output
voltage
Efficiency
@full load
Current ACCURACY
Power Factor

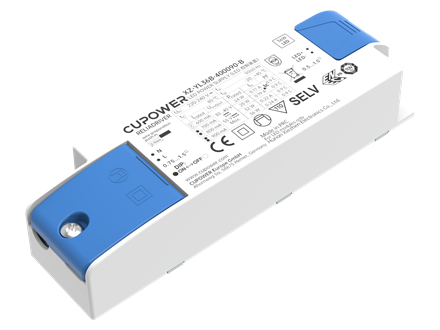

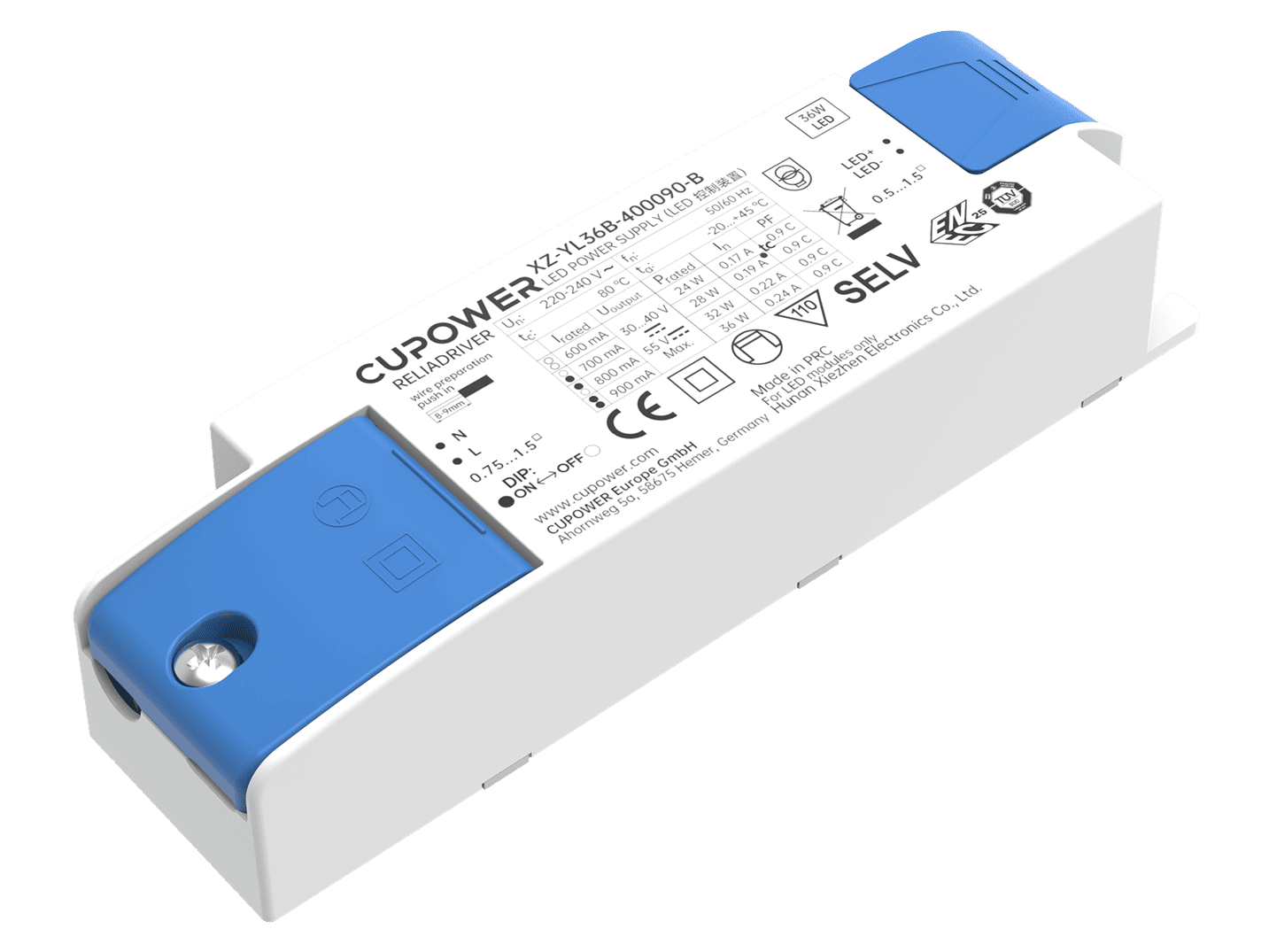

XZ-YL36B-400090-B
600...700...800...900 mA
220...240 Vac
30...40 V
88%
± 5%
> 0.9
Operating temperature:
-20…+45°C
Storage temperature:
-25…+85℃
Working humidity:
10%…90%
Store humidity:
5%...90%
Driver lifetime:
at Tc < 80°C: 30,000 hrs; at Tc 70°C: 50,000 hrs @230 Vac
