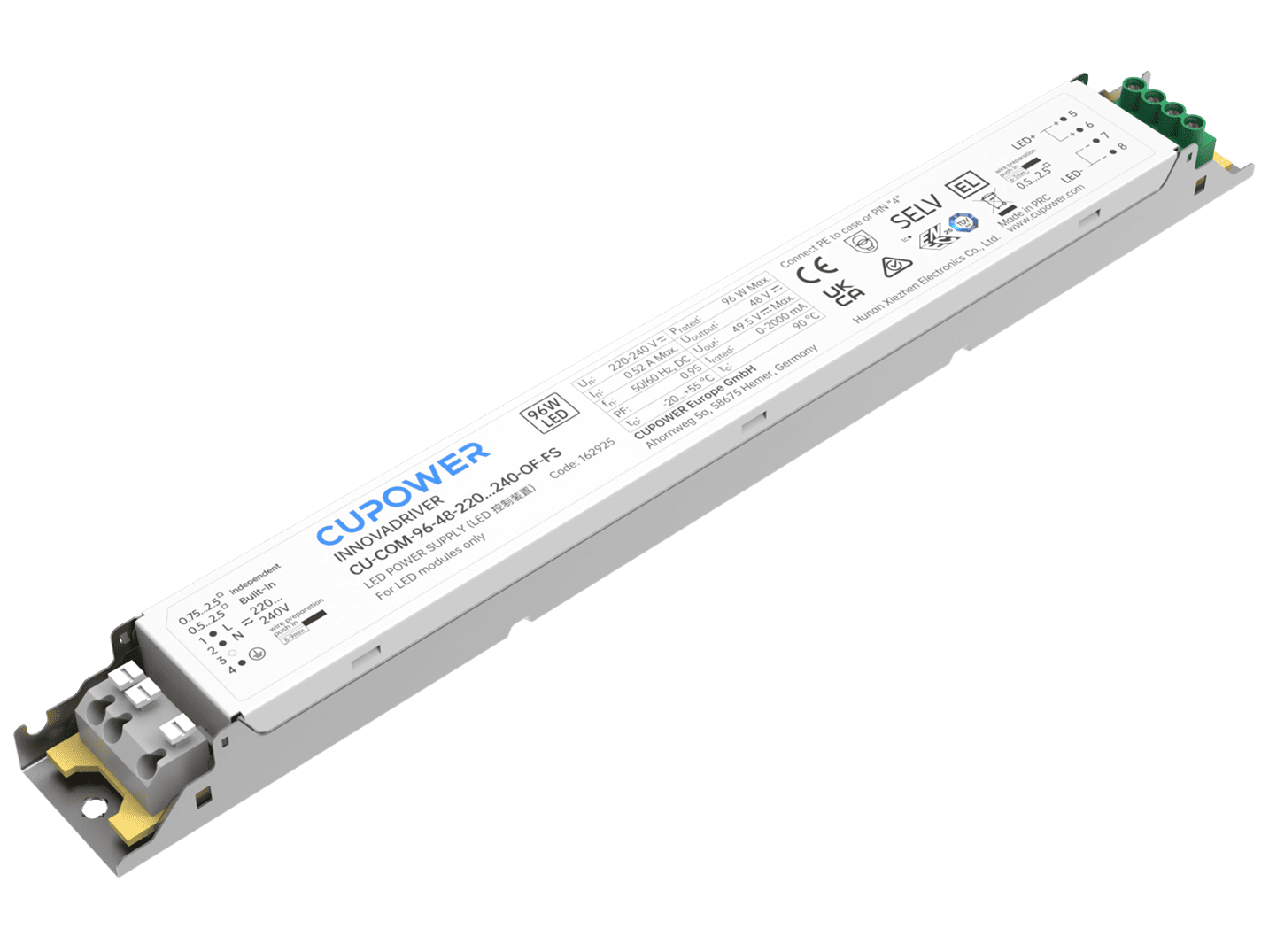

162925 CU-COM-96-48-220...240-OF-FS

< Back

L278 x W30 x H21 mm

WT: 0.294 kg

Product description

• Suitable for parallel output current
• Removable cord grips available
• Flicker-free
• Built-in power factor correction function, high power factor, low THD
• With AC power failure detection, meets the hard reset of smart products (optional)

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.52 A @ 230 Vac
THD:	≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 26 A, Inrush current Twidth: 550 μs
MCB Quantity B10A:	4
MCB Quantity C10A:	7
MCB Quantity B16A:	6
MCB Quantity C16A:	10
Output current tolerance:	≤ 5%
Output voltage max:	48 Vdc
Ripple:	≤ 5%
Standby power consumption:	0.3
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	N/A
Withstand voltage:	I/P-O/P: 3.75 KVac,＜5 mA 60 sec；I/P-FG: 1.5 VKac,＜5 mA 60 sec

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
CU-COM-96-48-220...240-OF-FS	2000 mA	220...240 Vac	48 V	92%	± 5%	＞ 0.9

Operating temperature:	-20…+55°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%...90%
Driver lifetime:	at Tc < 90°C: 50,000 hrs; at Tc 80°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	90°C
