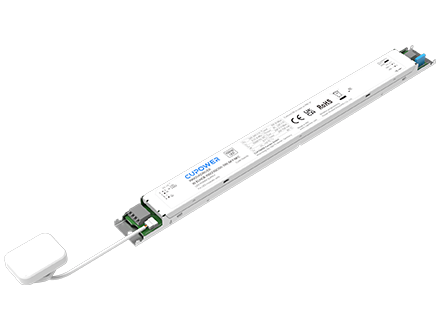

166626 ID ELNCB 100/230/200-700 SKY NFC

< Back

L360 x W29.5 x H16 mm

WT: 0.228 kg

Product description

Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certification
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Enables reading fixture lifetime data: Data management, energy monitoring, predictive maintenance
Smooth dimming with dimming range 1-100% (amplitude dimming)
External antenna for high quality, strong signals
Suitable for Casambi, MESHLE, Mymesh

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
DC Rated input voltage range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.52 A@ 230 Vac
THD:	≤ 20%
Inrush current [Aµs]:	32.4 A/88 us
MCB Quantity B10A:	17
MCB Quantity C10A:	17
MCB Quantity B16A:	27
MCB Quantity C16A:	27
Output current tolerance:	± 5%
Output voltage max.:	250 V
Ripple:	≤ 5%
Standby power consumption:	< 0.4 W@230 Vac
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	BLE mesh
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 100/230/200-700 SKY NFC

200...700 mA

220...240 Vac

220...240 Vdc

50...220 V

93%

± 5%

> 0.9

Operating temperature:	-20...+55℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...90%
Driver lifetime:	at Tc 85°C: 50,000 hrs @ 230 Vac; at Tc 75℃: 100,000 hrs @ 230Vac
Maximum Tc temperature:	85℃

Pcs./ carton:	20 Pcs
Carton size:	381 x 128 x 103 mm
Gross weight:	4.75 kg
