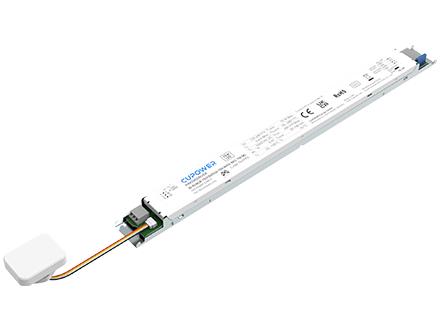

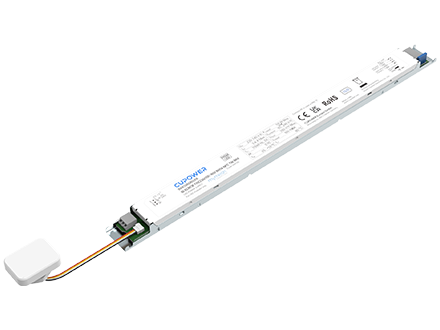

Non-SELV bluetooth / mesh tunable white > ID series

Product description

Constant current driver with wide operating windows
Standby power consumption＜0.4 W, meets ErP energy efficiency certification
Integrated wireless module for wireless ecosystem
Support wireless dimming and color temperature adjustable
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the current to 15% by default (adjustable)
Enables reading fixture lifetime data: Data management, energy monitoring, predictive maintenance
Smooth dimming with dimming range 1-100% (amplitude dimming)
External antenna for high quality, strong signals
External antenna for high-quality, reliable signal transmission and support for CASAMBI, Mymesh, and Meshle platforms
Available with CASAMBI, MESHLE, and Mymesh

Product family

Article No.	Description	Power	Input voltage	Output voltage	Output current	Efficiency @full load	Dimensions (L x W x H)
166800	ID ELNCB 110/230/100-900 SKY NFC TW	110 W	220-240VAC 220-240VDC	50-240	100-900	93%	405 x 30 x 16 mm
166794	ID ELNCB 75/230/050-700 SKY NFC TW	75 W	220-240VAC 220-240VDC	50-240	50-700	92%	360 x 30 x 16 mm
166787	ID ELNCB 36/230/050-400 SKY NFC TW	36 W	220-240VAC 220-240VDC	50-240	50-400	91%	278 x 30 x 16 mm

CS = Casambi ML = Meshle MM = Mymesh

Power range:	3-110 W
Adjustable output current:	NFC
Dimming interface:	BLE
Dimming range:	1-100%
Flicker-free:	PstLM≤1，SVM≤0.4
Input votage shock:	350 VAC, 2 h
Operating temperature range:	Ta -20…+35°C
Power factor:	＞ 0.9
Surge protection:	L-N: 1 kV, L/N-GND: 2 kV
Start up time:	＜ 500 ms @ 230 V
Lifetime:	50,000 h
Type of Protection:	IP20
Warranty:	5 year

166787_ID_ELNCB_36_230_050-400_SKY_NFC_TW
166794_ID_ELNCB_75_230_050-700_SKY_NFC_TW
166800_ID_ELNCB_110_230_100-900_SKY_NFC_TW
Download all

We are sorry, but the content is still under construction. Please get in touch with us and let us know, what details you do need. sales@cupower.com. Thanks!
Download all

3D_Non-SELV_bluetooth / mesh_tunable_white_ID_series_36W
3D_Non-SELV_bluetooth / mesh_tunable_white_ID_series_75W
3D_Non-SELV_bluetooth / mesh_tunable_white_ID_series_110W
Download all

CE_Declaration_of_Conformity_Non-SELV_bluetooth / mesh_tunable_white_ID_series
Download all

Supports multiple protocols and is compatible with multiple lighting fixtures

The DALI-2 certification program is based on the DALI-2 testing specifications created by the Digital Illumination Interface Alliance (DIIA). These testing specifications are derived from relevant parts of IEC 62386, international DALI standards, or new specifications developed by the DIIA.

NFC Forum certification testing primarily covers digital protocol, radio frequency analog, logical link control protocol (LLCP), and simple NDEF exchange protocol (SNEP). Certified products encompass various types of devices Supporting NFC functionality.

Data specifications for LED Drivers, created and DALI part maintained by the DALI Alliance (DiiA). DALI part 251 – Memory Bank 1 Extension (luminaire data), DALI part 252 – Energy Reporting (energy data), DALI part 253 – Diagnostics & Maintenance (diagnostics data).

Bluetooth technology is a widely adopted short-range wireless transmission standard used globally. Bluetooth bridging enables convenient data exchange and communication among various electronic devices.

Wi-Fi is a brand certification created by the Wi-Fi Alliance. It is a WLAN technology established with the IEEE802.11 standard. It is currently the benchmark for WLAN in the world.

D4i is an extension of the DALI-2 certification program. In addition, intelligent D4i LED drivers inside the luminaire have the capability to store and report a wide range of luminaire, energy and diagnostics data in a standardized format.
