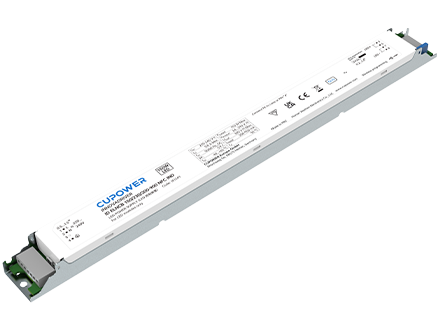

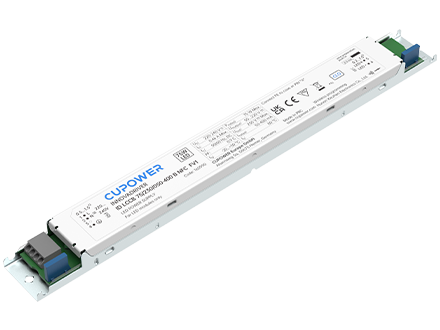

163199 ID LCCB 100/230/250-800 0-10V NFC FV1 X

< Back

L360 x W30 x H16 mm

WT: 0.21 kg

Product description
High power factor
DIP switch, multi-current setting
Supports 3-step color temperature selection via sliding switch
12 V auxiliary power supply optional, expandable for various sensors and controllers
Smooth dimming with dimming range 1-100% (amplitude dimming)
Standby power consumption<0.5 W, meets ErP energy efficiency certification
Packing unit programming: configure a large number of drivers in parallel via NFC
Rated input voltape range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:198...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.52 A @ 230 Vac
THD:≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:57.2 A/206 us
MCB Quantity B10A:5
MCB Quantity C10A:9
MCB Quantity B16A:8
MCB Quantity C16A:14
Output current tolerance:

± 5%

Output voltage max:250 Vdc
Ripple:≤ 5%
Standby power consumption:<0.5 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:0-10V,PWM
Dimming range:1%...100%
Adjustable output current:NFC
Withstand voltage:

I/P-FG: 1.5 kVac, < 5 mA 60 sec

Model Number
               (Full Model)
output
               Current
Input
               voltage
Output
               voltage
Efficiency                @full loadCurrent ACCURACYPower Factor
ID LCCB 100/230/250-800 0-10V NFC FV1 X250...800 mA

220...240 Vac

220...240 Vdc

80...220 V93%± 5%> 0.9



Operating temperature:-20…+55°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc < 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @230 Vac
Maximum Tc temperature:85°C
Pcs./ carton:20 pcs
carton size:381 x 128 x 103 mm
Gross weight:4.6 kg
  • Download all
  • Download all
  • Download all
Non-SELV 0-10V+PWM dimming > ID series
