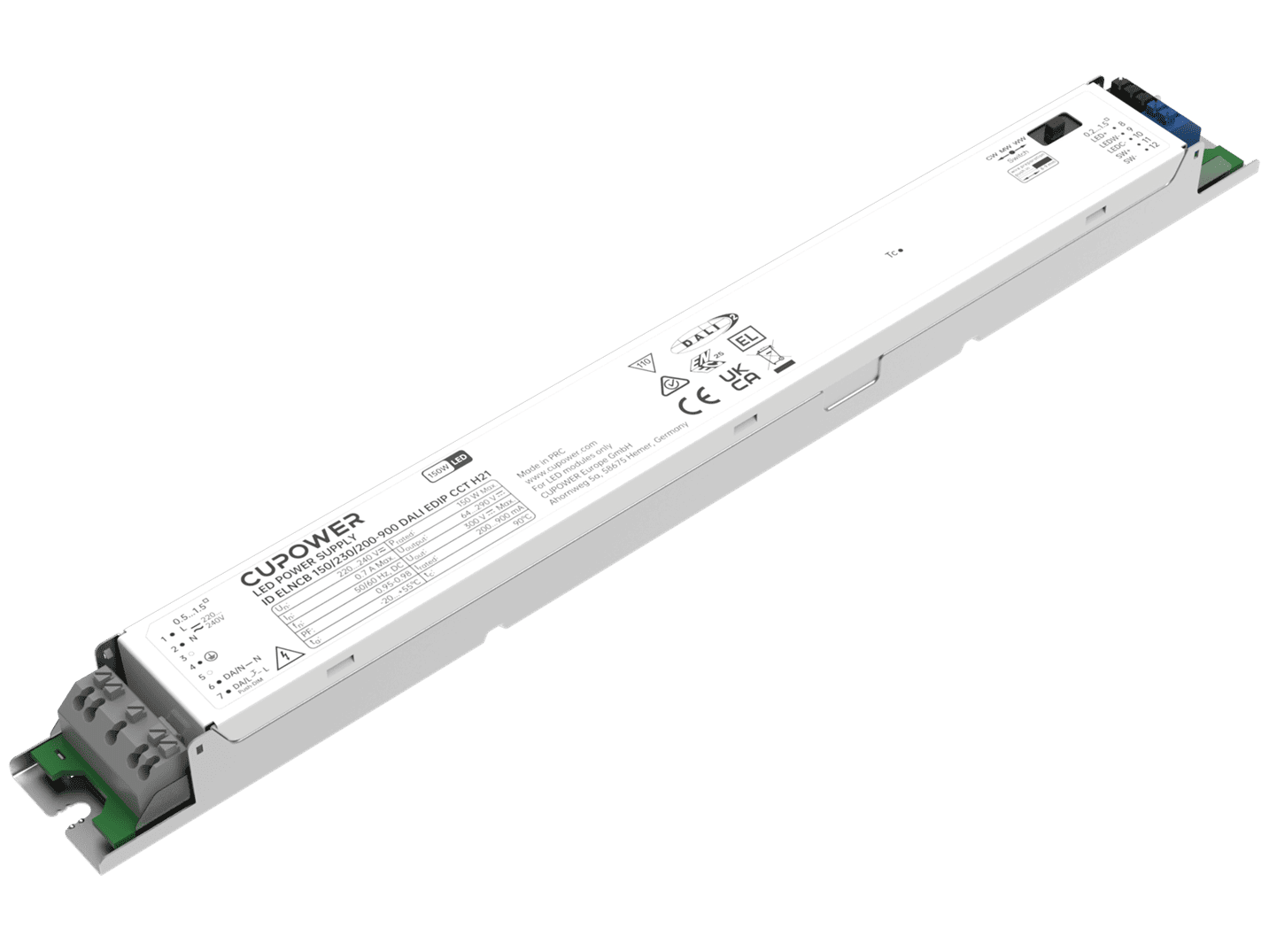

169405 ID ELNCB 150/230/200-900 DALI EDIP CCT H21

< Back

L302.0 x W30.0 x H21.0 mm

WT: 0.262 kg

Product description

Built-in non isolated adjustable power LED driver
Supports DALI-2, push DIM
Color temperature adjustable
Flicker-free LED driver
Supports i-Data function (DALI part 251, 252, 253)
Output current 200...900 mA by external DIP switch
Max. output power 150 W
DC emergency
For luminaires with protection class l
5 years warranty

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	198…280 Vdc
Safety frequency range:	47…63 Hz
Rated input current:	0.7 A @ 230 Vac & 0.7 A @ 230 Vdc
THD:	≤ 10%
Inrush current [Aµs]:	52.4 A, 255 μs
MCB Quantity B10A:	7
MCB Quantity C10A:	11
MCB Quantity B16A:	12
MCB Quantity C16A:	18
Output current tolerance:	200...250 mA ±15 mA,300...900 mA ±5%
Output voltage max:	≤ 300 Vdc
Ripple:	5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2，Push Dimming
Dimming range:	1%~100%
Adjustable output current:	Amplitude dimming
Withstand voltage:	l/p-FG: 1.5 kVac, < 5 mA 60 sec; I/p-DA: 1.5 kVac, < 5 mA 60 sec; DA-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output
current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 150/230/200-900 DALI EDIP CCT H21

200...900 mA

220...240 Vac

220...240 Vdc

64...290 V

95%

± 5%

0.95

Operating temperature:	-20…+55℃
Storage temperature:	-25…+85℃
Working humidity:	10%…90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85℃: 50,000 hrs; at Tc 75℃: 100,000 hrs @ 230Vac
Maximum Tc temperature:	90℃
