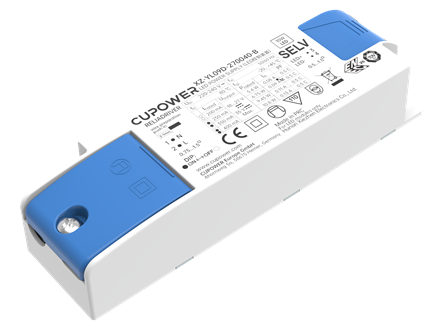

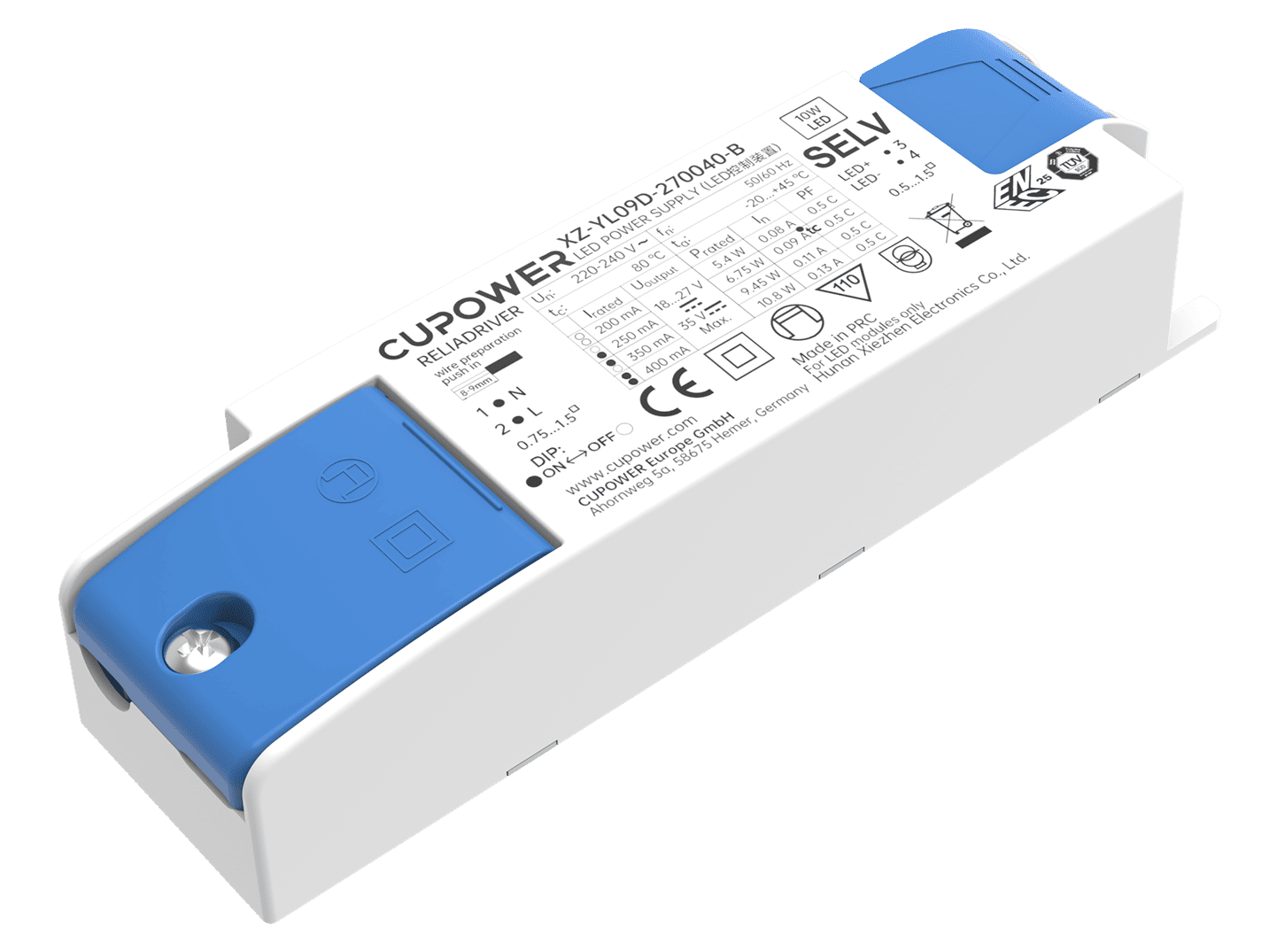

161782 XZ-YL09D-270040-B

< Back

L126 x W38 x H25 mm

WT: 0.059 kg

Product description

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.13 A @ 230 Vac
THD:	N/A
Inrush current [Aµs]:	Inrush current lpeak: 7.52 A、Inrush current Twidth: 129 μs
MCB Quantity B10A:	68
MCB Quantity C10A:	114
MCB Quantity B16A:	109
MCB Quantity C16A:	182
Output current tolerance:	200...250mA ± 15 mA 350...400mA ± 5%
Output voltage max:	35 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 3.75 KVac,＜ 5 mA 60 sec

New products

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-YL09D-270040-B	200...250...350...400 mA	220...240 Vac	18...27 V	83%	± 5%	> 0.5
