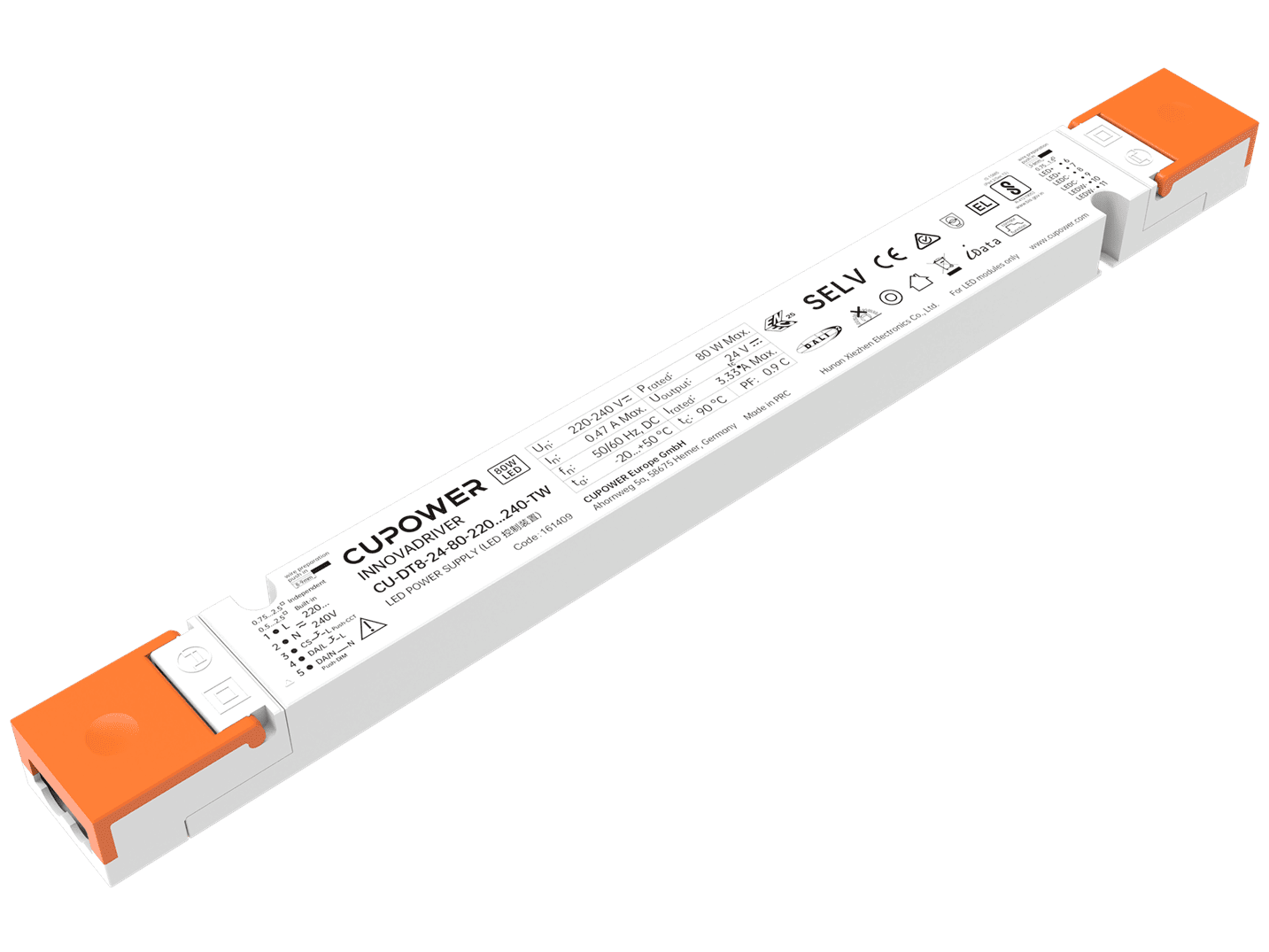

161409 CU-DT8-24-80-220...240-TW

< Back

L309 x W33 x H21 mm

WT: 0.18 kg

Product description

Supports DALI-2, push DIM and push CCT
Equipped with i-Data: enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Smooth dimming with dimming range 0.1-100%, meets the IEEE 1789 flicker-free standard
Standby power consumption < 0.3 W, meets ErP energy efficiency certification
Removable cord grips included

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.47 A @ 230 Vac
THD:	≤ 10% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 20.6 A, Inrush current Twidth: 382 μs
MCB Quantity B10A:	7
MCB Quantity C10A:	13
MCB Quantity B16A:	12
MCB Quantity C16A:	21
Output current tolerance:	N/A
Output voltage max:	24 Vdc
Ripple:	≤ 5%
Standby power consumption:	0.3
Output PstLM:	<1 at full load @ rated input voltage
Output SVM:	<0.4 at full load @ rated input voltage
Dimming mode:	DALI-2/PUSH
Dimming range:	0.1％...100％
Adjustable output current:	N/A
Withstand voltage:	I/P-O/P: 3.75KVac,＜5mA 60 sec,I/P-DA: 1.5KVac,＜5mA 60 sec；O/P-DA: 1.5VKac,＜5mA 60 sec

New products

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
CU-DT8-24-80-220...240-TW	3330 mA	220...240 Vac	24 V	89%	± 5%	＞0.9
