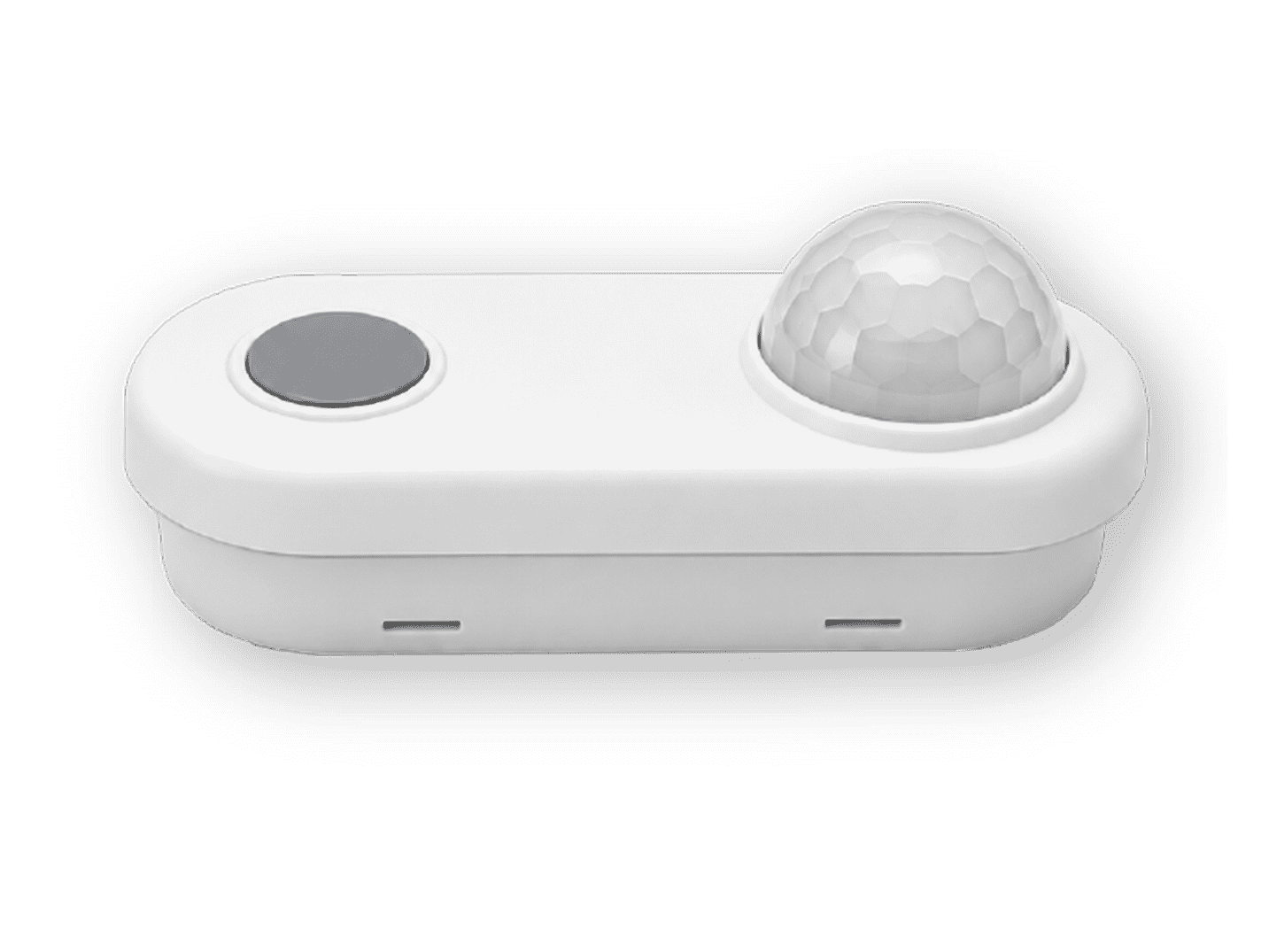

111240 IC-S311-PL-0-10V-LW

< Back

2.42 x 0.96 x 0.89 in [61.47 x 24.5 x 22.53 mm]

WT: 0.010 kg


Questions Order a Sample
Product description
Monitoring of light and presence detection
Based on pyroelectric effect and high-performance digital signal processing
Compact sensor that can be integrated into luminaries
Compatible with infrared remote-control and flexible parameter configuration
0-10 V Control Output
Mounting height up to 5 meters
Swipe for more
Operating voltage:12 VDC ± 10 %
Standby Power:

Typ. 0.48 W @ 12 V

Power supply type:Drive separated supply
PIR axial distance (mounting height):Max 5 m
PIR axial coverage angle:90°
PIR tangential coverage angle:360°
Daylight threshold:Disable-200 Lux (default 200 Lux)
Product namePower SupplyDetection technology

Mounting

height

Dimensions  (L x W x H)

IC-S311-PL-0-10V-LW12 VDCPIR  + Ambient Light Sensor5 m61.47 x 24.5 x 22.53 mm


Operating temperature:-10 ... +55 ℃
Storage temperature:-25 ... +60 ℃
Working humidity:10 ... 90 %
Store humidity:5 ... 95 %
Operating environment:/
Maximum Tc temperature:/
Pcs./ carton:600 pcs
Carton size:440 × 370 × 200 mm
Gross weight:0.550 kg
