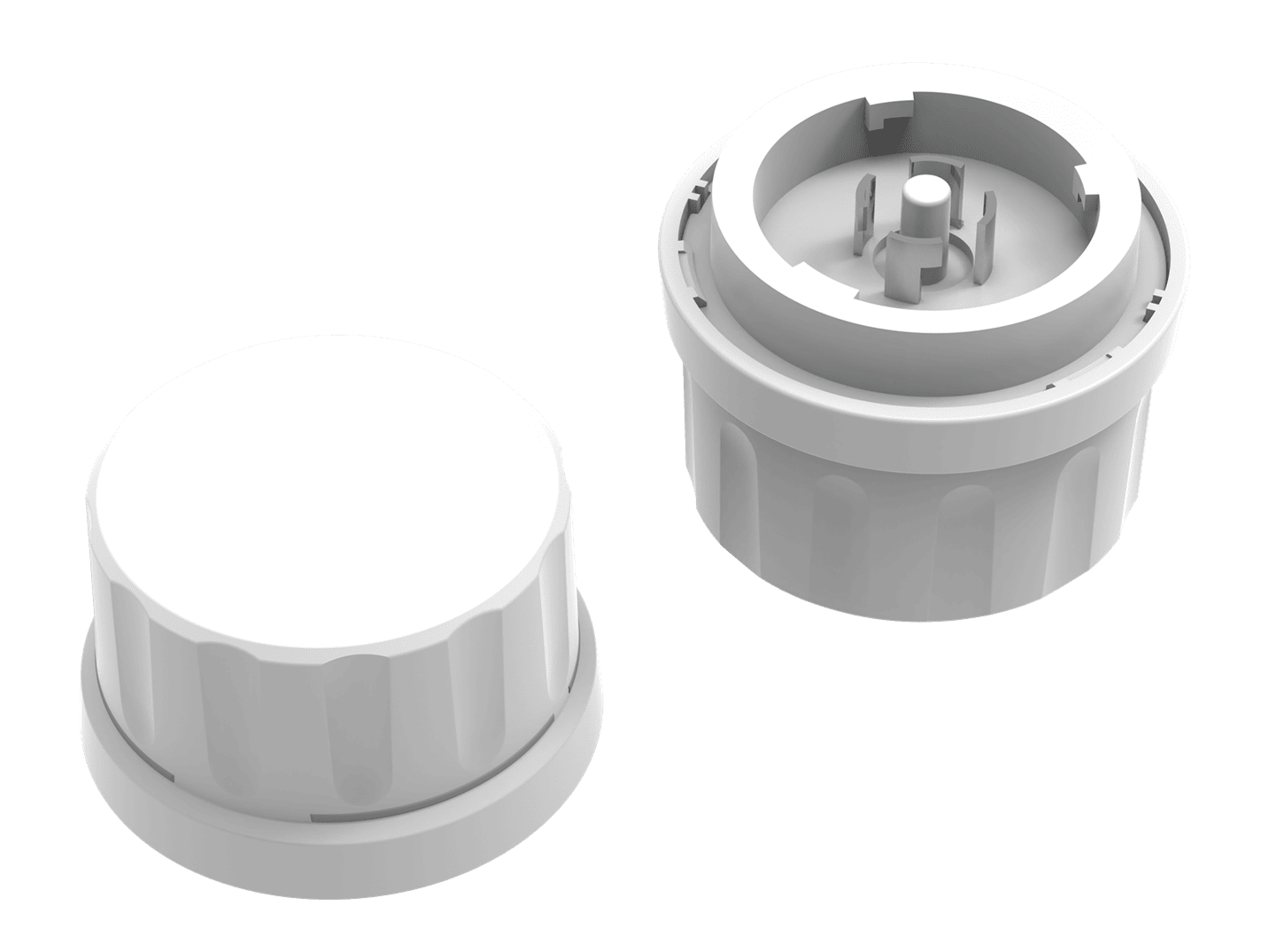

111189 IC-S621-ML-0-10V-PW

< Back

Ø 1.87 x 1.34 in [Ø 47.5 x H33.99 mm]

WT: 0.028 kg

Product description

Monitoring of light and presence detection
Doppler radar principle and self-developed high-performance algorithm
Compact sensor that can be integrated into luminaries
High-performance optimized planar microstrip antenna with high gain, low sidelobes, and reduced backward radiation.
Compatible with infrared remote-control and flexible parameter configuration
0-10 V Control Output
Conforms to Zhaga Book 18 standards
Mounting height up to 13 meters

Swipe for more

Operating voltage:	12 VDC ± 10 %
Standby Power:	Typ. 0.46 W @ 12 V
Power supply type:	Drive separated supply
PIR axial distance (mounting height):	Max 13 m
Horizontal -3 dB beamwidth/E-Plane:	105°
Vertical -3 dB beamwidth/H-Plane:	105°
Daylight threshold:	Disable-200 Lux (default 200 Lux)

Product name

Power Supply

Detection technology

Mounting

height

Dimensions (L x W x H)

IC-S621-ML-0-10V-PW

12 VDC

PIR + Ambient Light Sensor

13 m

Ø 47.5 x 33.99 mm

Operating temperature:	-25 ... +70 ℃
Storage temperature:	-40 ... +85 ℃
Working humidity:	10 ... 90 %
Store humidity:	5 ... 95 %
Operating environment:	/
Maximum Tc temperature:	/
