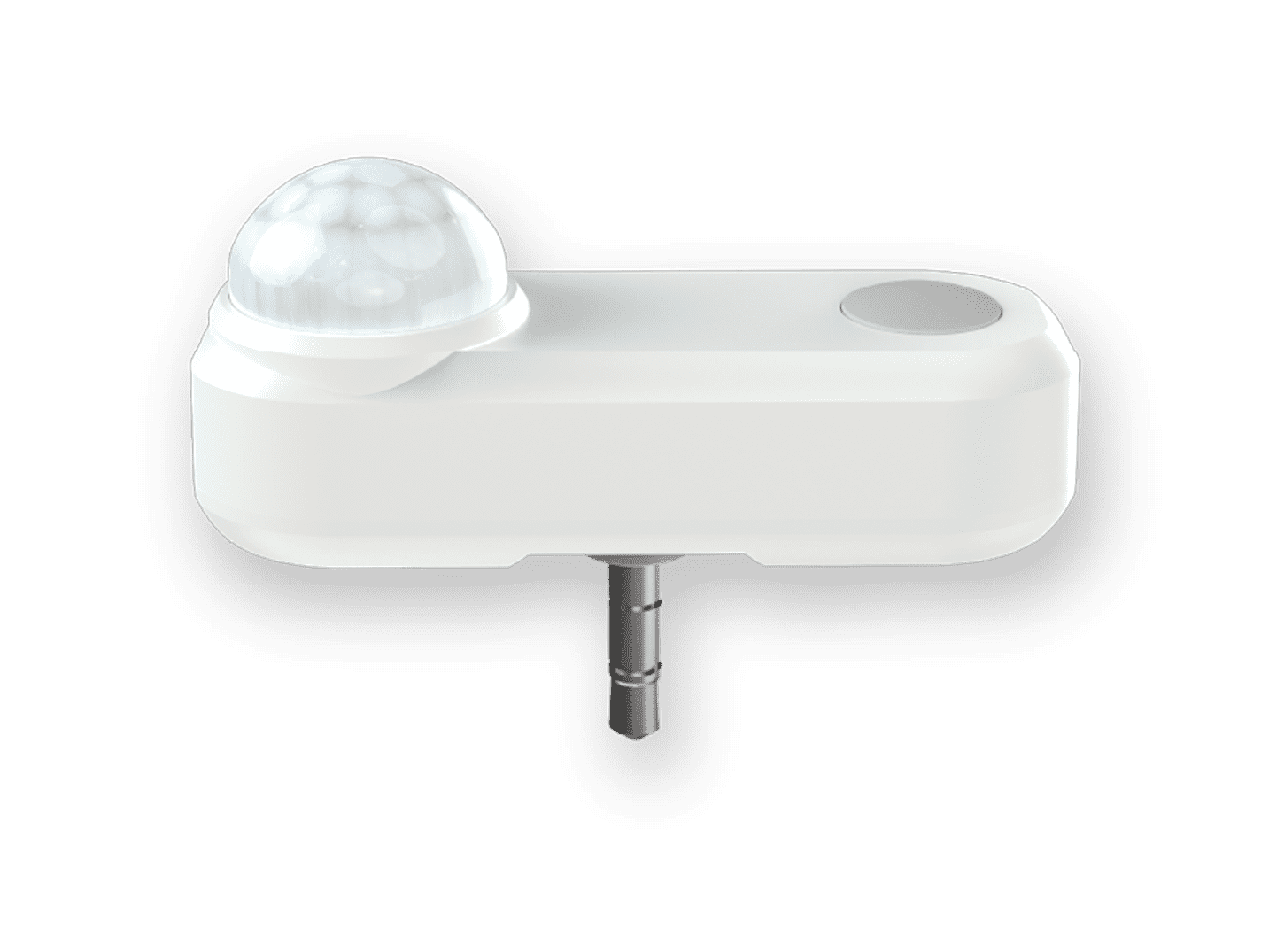

111233 IC-S321-PL-0-10V-LW

< Back

2.2 x 0.83 x 1.51 in [55.9 x 21.0 x 38.48 mm]

WT: 0.012 kg

Product description

Monitoring of light and presence detection
Based on pyroelectric effect and high-performance digital signal processing
Compact sensor that can be integrated into luminaries
Compatible with infrared remote-control and flexible parameter configuration
0-10 V Control Output
Mounting height up to 5 meters
Optional 2.5 mm / 3.5 mm audio jack for flexible installation

Swipe for more

Operating voltage:	12 VDC ± 10 %
Standby Power:	Typ. 0.36 W @ 12 V
Power supply type:	Drive separated supply
PIR axial distance (mounting height):	Max 5 m
PIR axial coverage angle:	90°
PIR tangential coverage angle:	360°
Daylight threshold:	Disable-200 Lux (default 200 Lux)

Product name

Power Supply

Detection technology

Mounting

height

Dimensions (L x W x H)

IC-S321-PL-0-10V-LW

12 VDC

PIR + Ambient Light Sensor

5 m

55.9 x 21.0 x 38.48 mm

Operating temperature:	-10 ... +55 ℃
Storage temperature:	-40 ... +60 ℃
Working humidity:	10 ... 90 %
Store humidity:	5 ... 95 %
Operating environment:	/
Maximum Tc temperature:	/
