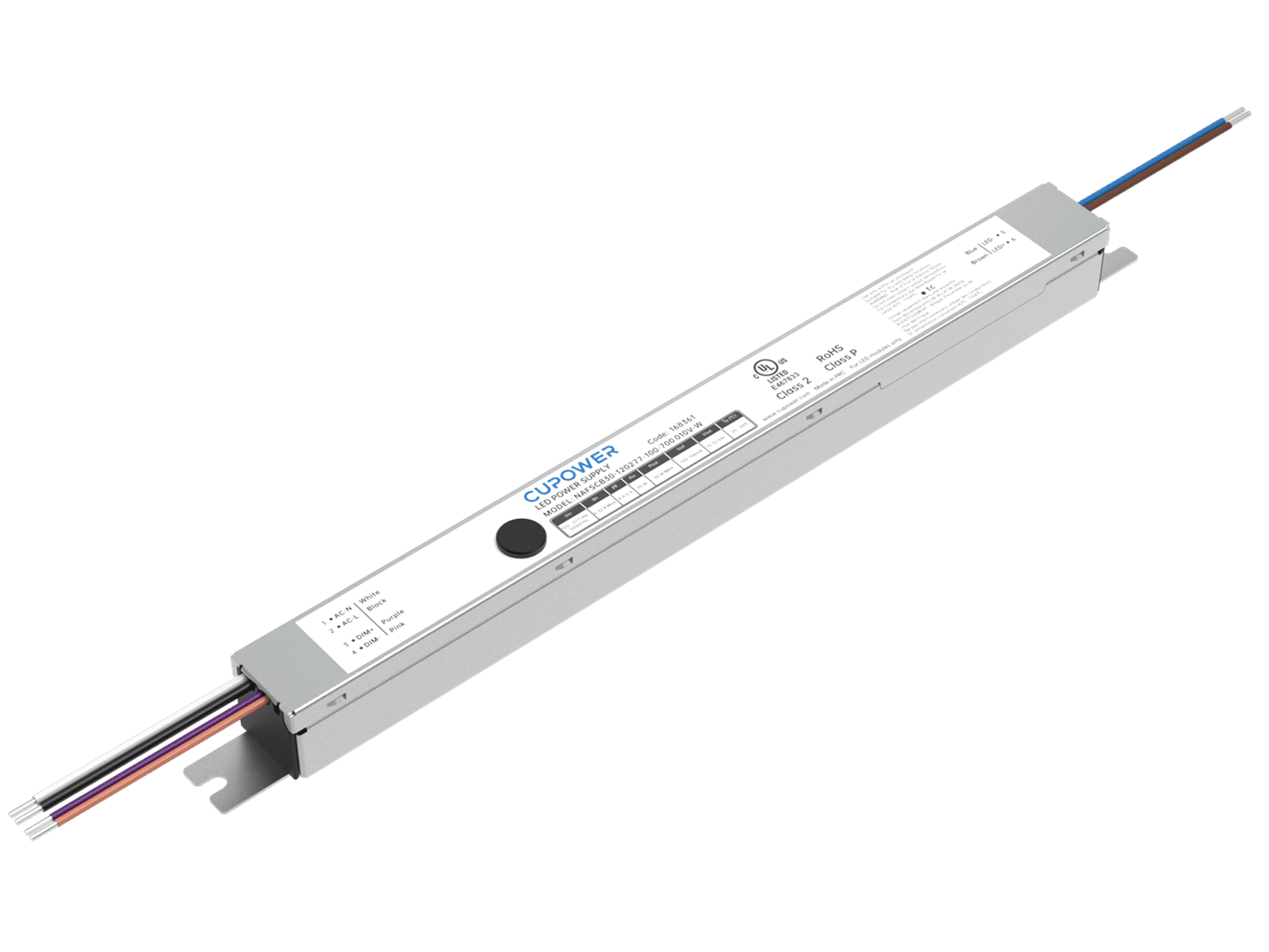

168361 NAFSCB30-120277-100-700 010V-W

< Back

L8.90 x W0.72 x H0.72 in

WT: 0.105 kg

Product description

Built-in isolated adjustable power LED driver
Output current 100…700 mA
Max. output power 30 W
Flicker-free
Dimming range 0.1%...100%
Current output default value 100%
For luminaires with protection class l

Rated input voltage range:	120…277 Vac; performance range
Max.input voltage range:	108...305 Vac; operational safety range
Rated input current DC range:	0.32 A @ 120 Vac
Rated frequency range:	50/60 Hz
Performance/Operational safety:	47...63 Hz
Withstand voltage:	I/p-O/p: 1.6 kVac, < 5 mA 60 sec, I/p-earth: 1.6 kVac, < 5 mA 60 sec, O/p-earth: 0.5 kVac, < 5 mA 60 sec
THD:	≤ 15%
Inrush current [Aµs]:	12.9 A, 116μs
MCB Quantity B10A:	26
MCB Quantity C10A:	26
MCB Quantity B16A:	42
MCB Quantity C16A:	42
Output current tolerance:	± 5% at rated input voltage performance range
Output voltage max.:	≤ 60 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	0-10V (programmable)
Dimming range:	0.1%...100%
Dimming method:	Amplitude dimming

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
NAFSCB30-120277-100-700 010V-W	100…700 mA	120...277 Vac	15...52 V	88.5%	± 5%	0.9

Operating temperature:	-20… +50℃
Storage temperature:	-25… +85℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 80℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	85℃

Pcs./ carton:	50 pcs
Carton size:	12.60 x 9.72 x 6.81 in (320 x 247 x 173 mm)
Gross weight:	6.2 kg
