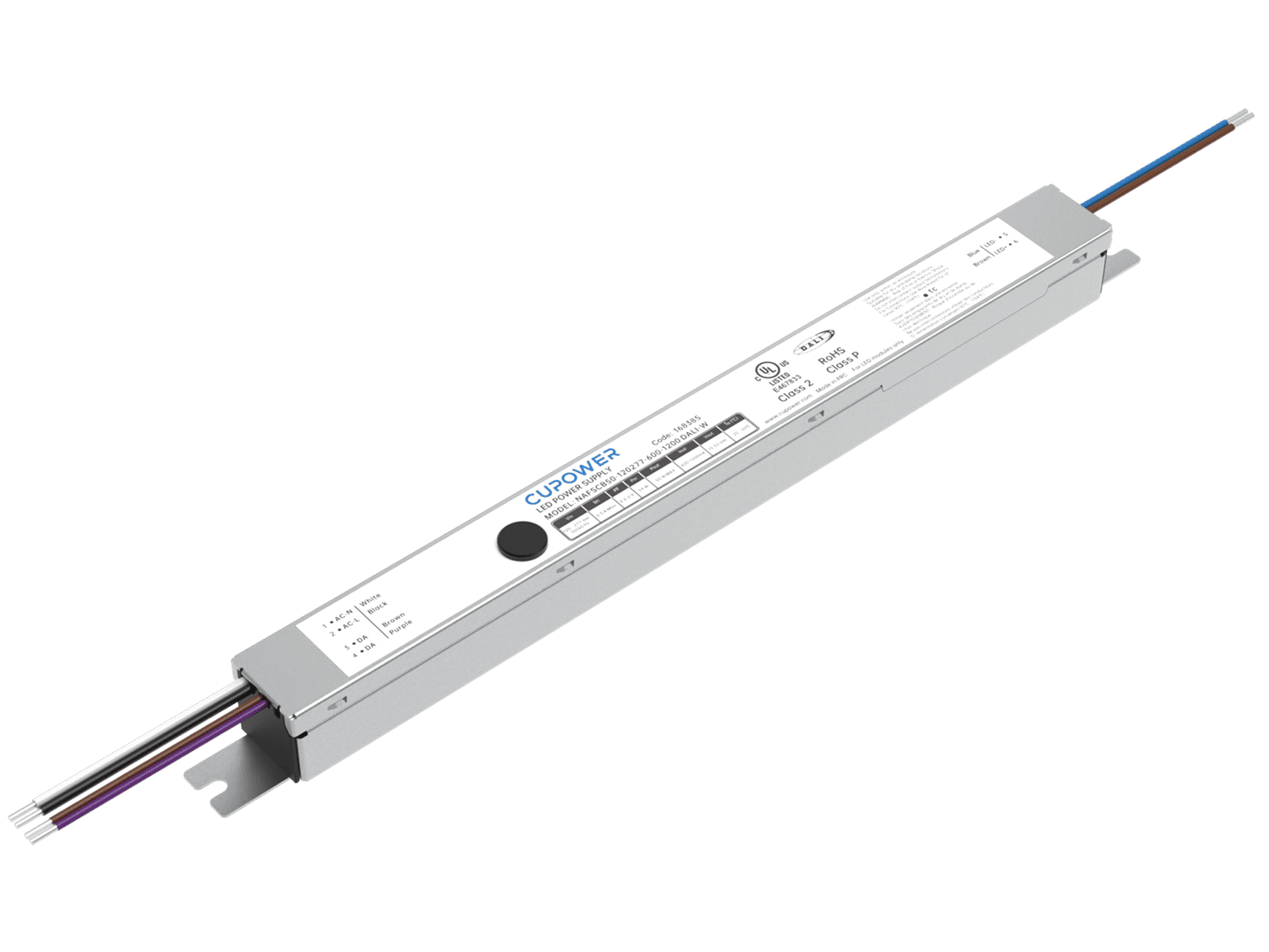

168385 NAFSCB50-120277-600-1200 DALI-W

< Back

L8.90 x W0.72 x H0.72 in

WT: 0.135 kg

Product description

Built-in isolated adjustable power LED driver
Supports DALI-2
Supports i-Data function (DALI part 251, 252, 253)
Output current 600…1200 mA
Max. output power 50 W
Flicker-free
Dimming range 0.1%...100%
Current output default value 100%
For luminaires with protection class l

Rated input voltage range:	120…277 Vac; performance range
Max.input voltage range:	108...305 Vac; operational safety range
Rated input current DC range:	0.5 A @ 120 Vac
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.5 A @ 120 Vac
THD:	≤ 15% at rated input voltage range @ full load
Inrush current [Aµs]:	21.6 A; 133 μs
MCB Quantity B10A:	16
MCB Quantity C10A:	16
MCB Quantity B16A:	26
MCB Quantity C16A:	26
Output current tolerance:	± 5% at rated input voltage performance range
Output voltage max.:	≤ 60 Vdc
Ripple:	5% (ripple = peak/average total 100 Hz)
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2
Dimming range:	0.1%...100%
Adjustable output current:	N/A
Withstand voltage:	I/p-O/p: 1.6 kVac, < 5 mA 60 sec, I/p-earth: 1.6 kVac, < 5 mA 60 sec, O/p-earth: 0.5 kVac, < 5 mA 60 sec

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
NAFSCB50-120277-600-1200 DALI-W	600…1200 mA	120...277 Vac	15...52 V	90%	± 5%	0.9

Operating temperature:	-20… +50℃
Storage temperature:	-25… +85℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 80℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	90℃

Pcs./ carton:	50 pcs
Carton size:	12.60 x 9.72 x 6.81 in (320 x 247 x 173 mm)
Gross weight:	7.7 kg
