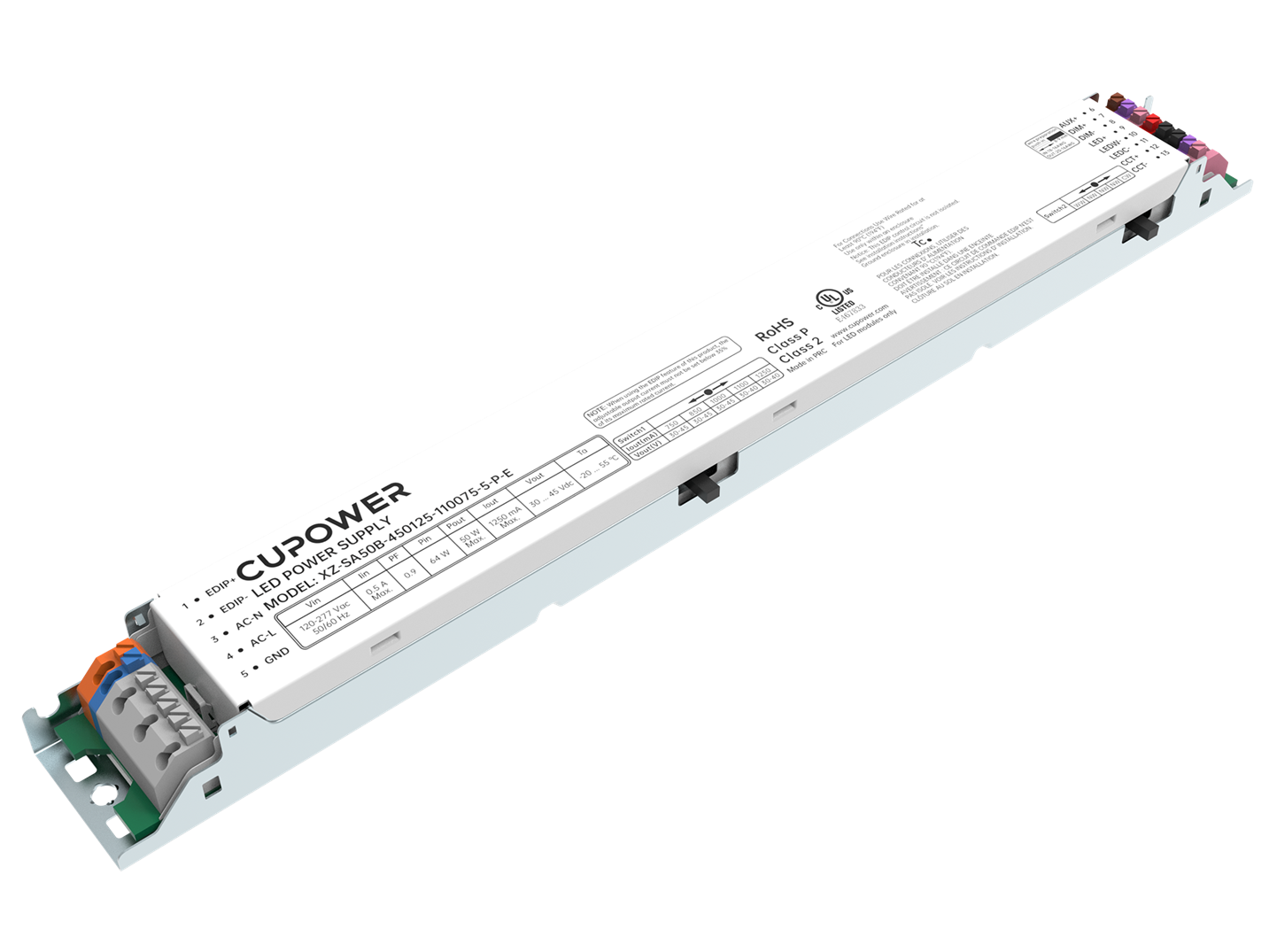

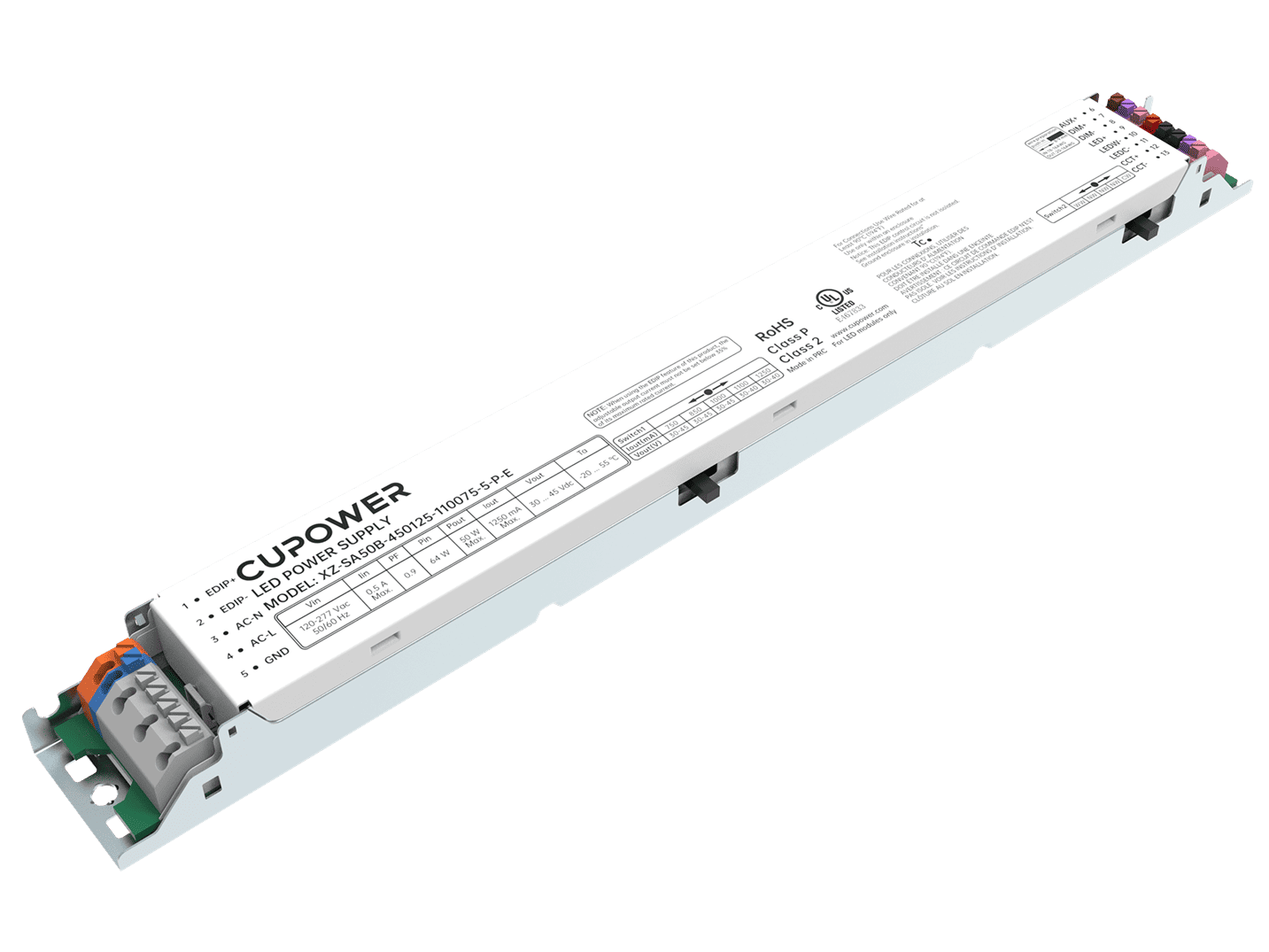

110694 XZ-SA50B-450125-110075-5-P-E

< Back

L10.94 x W1.18 x H0.83 in

WT: 0.202 kg

Product description

Built-in 0-10 V adjustable power color temperature LED driver
Output current 750…1250 mA by DIP Switch adjust
EDIP port can externally connected DIP Switch
Max output power 50 W
Flicker-free LED driver
12 V 0.1 A Auxiliary source
Class 2 output

Swipe for more

Rated input voltage range:	120 … 277 VAC
Max.input voltage range:	108 … 305 VAC
Rated input current DC range:	/
DC operation voltage range:	/
Safety frequency range:	50/60 Hz
Rated input current:	0.5 A @ 120 VAC
THD:	≤ 10 %
Inrush current [Aµs]:	/
MCB Quantity B10A:	/
MCB Quantity C10A:	/
MCB Quantity C10A:	/
MCB Quantity B16A:	/
Output current tolerance:	± 5 %
Output voltage max.:	60 VDC
Ripple:	≤ 5 %
Standby power consumption:	/
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	0-10 V
Dimming range:	0.5 … 100 %
Adjustable output current:	DIP
Withstand voltage:	I/p-O/p: 1.8 KVAC, < 5 mA 60 s; I/p-FG: 1.8 KVAC, < 5 mA 60 s I/p-DIM: 1.8 KVAC, < 5 mA 60 s; DIM-FG: 0.6 KVAC, < 5 mA 60s O/p-FG: 0.6 KVAC, < 5 mA 60 s

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-SA50B-450125-110075-5-P-E	750 … 1,250 mA	120 … 277 Vac	30 … 45 V	87 %	± 5 %	0.9

Operating temperature:	-20 … +55 ℃
Storage temperature:	-25 … +85 ℃
Working humidity:	10 … 90 %
Store humidity:	5 … 95 %
Driver lifetime:	at Tc 85 ℃: 50,000 h @ performance range (0.2 % / 1,000 h failure rate)
Maximum Tc temperature:	90 °C
