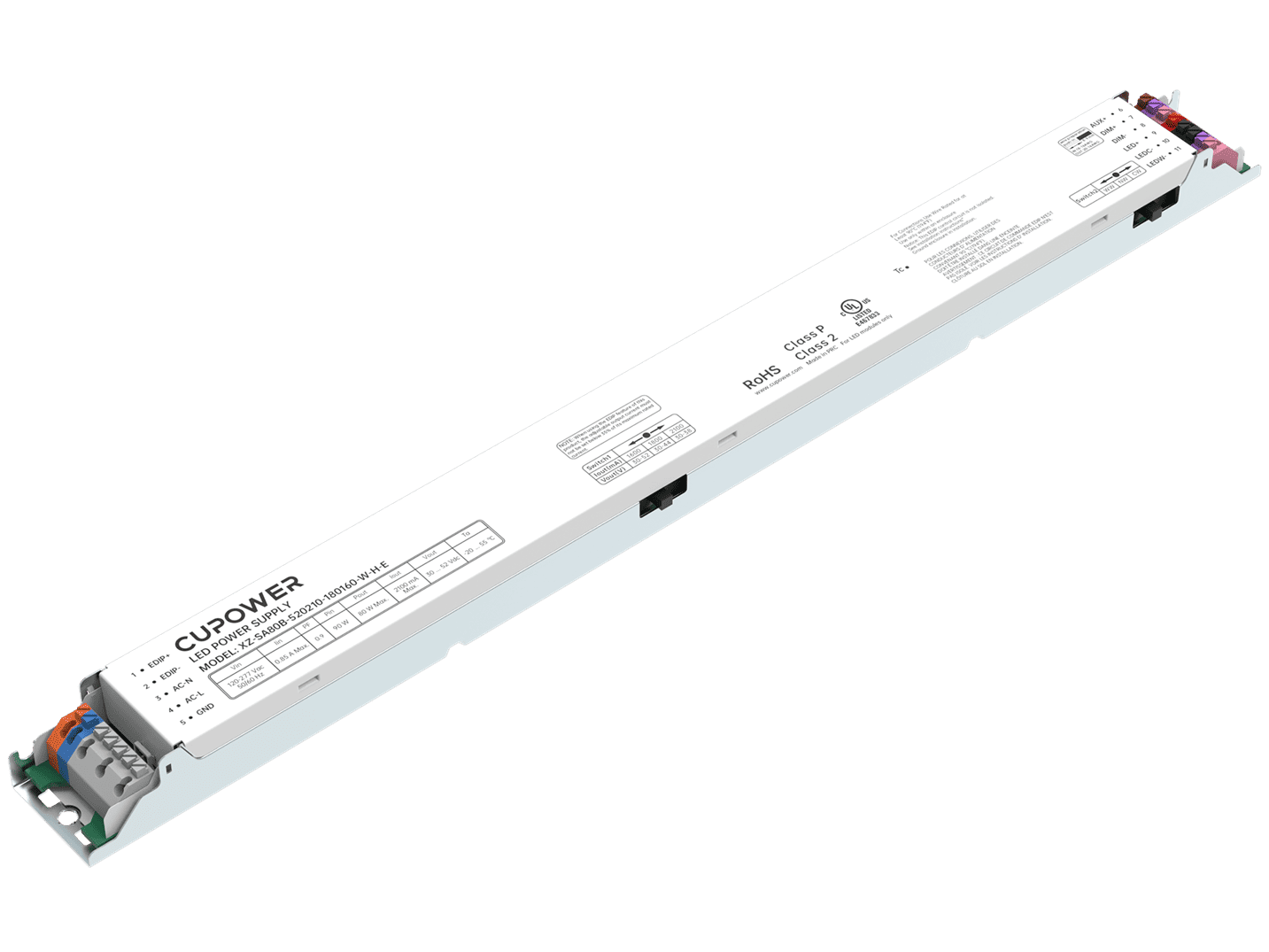

110793 XZ-SA80B-520210-180160-W-H-E

< Back

L14.09 x W1.18 x H0.83 in

WT: 0.28 kg

Product description

0-10 V dimmable LED driver
Output current 1600…2100 mA by DIP Switch adjust
Max output power 80 W
Flicker-free LED driver
12 V 0.1 A Auxiliary source
Dimming range 2.5%...100%
Class 2 output
5 years warranty

Swipe for more

Rated input voltage range:	120...277 Vac
Max.input voltage range:	108...305 Vac
Rated input current DC range:	/
DC operation voltage range:	/
Safety frequency range:	50/60 Hz
Rated input current:	0.85 A @ 120 Vac
THD:	≤ 10%
Inrush current [Aµs]:	/
MCB Quantity B10A:	/
MCB Quantity C10A:	/
MCB Quantity C10A:	/
MCB Quantity B16A:	/
Output current tolerance:	± 5%
Output voltage max.:	60 Vdc
Ripple:	5%
Standby power consumption:	/
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	0-10 V
Dimming range:	2.5%...100%
Adjustable output current:	DIP
Withstand voltage:	I/p-O/p: 1.8 kVac, < 5 mA 60 sec, I/p-earth: 1.8 kVac, < 5 mA 60 sec I/p-DIM: 1.8 kVac, < 5 mA 60 sec, DIM-earth: 0.6 kVac, < 5 mA 60 sec O/p-earth: 0.6 kVac, < 5 mA 60 sec

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-SA80B-520210-180160-W-H-E	1600...2100 mA	120...277 Vac	30...52 V	89.5%	± 5%	0.9

Operating temperature:	-20...+55℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	at Tc 85℃: 50,000 hrs @ performance range (0.2% / 1,000 h failure rate)
Maximum Tc temperature:	90℃
