680038 XZ-SY50B-YYYXXX-T

< Back

L9.45 x W1.02 x H0.71 in

WT: 0.11 kg

Product description

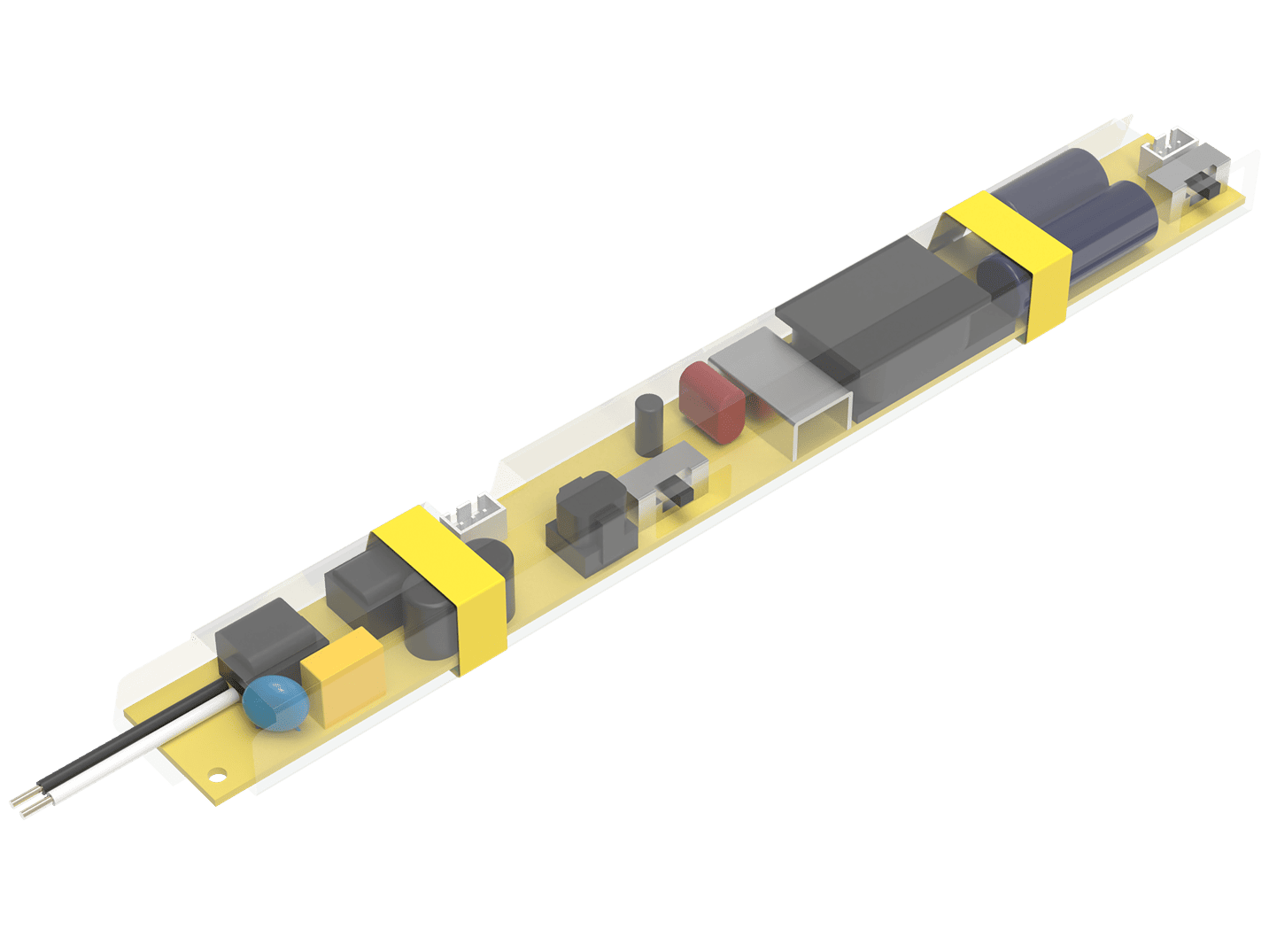

0-10 V adjustable power color temperature LED driver
Flicker-free LED driver
12 V 0.1 A Auxiliary source
Output current 650…1250 mA by DIP Switch adjust
Max. output power 47.5 W
For luminaires with protection class l
5 years warranty

Swipe for more

Rated input voltage range:	120...347 Vac
Max.input voltage range:	108...380 Vac
Rated input current DC range:	N/A
DC operation voltage range:	N/A
Safety frequency range:	50/60 Hz
Rated input current:	0.6 A @ 120 Vac
THD:	≤ 10%
Inrush current [Aµs]:	N/A
MCB Quantity B10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity C10A:	N/A
MCB Quantity B16A:	N/A
Output current tolerance:	± 5%
Output voltage max.:	60 Vdc
Ripple:	≤ 5%
Standby power consumption:	N/A
Output PstLM:	≤ 1 at full load @ rated input voltage
Output SVM:	≤ 0.4 at full load @ rated input voltage
Dimming mode:	0-10V
Dimming range:	0.5%...100%
Adjustable output current:	DIP
Withstand voltage:	I/P-O/P: 1.8 KVac, <5 mA 60 sec; I/P-FG: 1.8 KVac, <5 mA 60 sec; I/P-DIM: 1.8 KVac, <5 mA 60 sec; O/P-FG: 0.6 KVac, <5 mA 60 sec; DIM-FG: 0.6 KVac, <5 mA 60 sec

Product name	Output current	Input voltage	Output voltage	Efficiency @full load	Current accuracy	Power factor
XZ-SY50B-YYYXXX-T	650...1250 mA	120...347 Vac	30...38 V	86%	± 5%	0.9

Operating temperature:	-20...+50℃
Storage temperature:	-40...+80℃
Working humidity:	10%...90%
Store humidity:	5%...90%
Driver lifetime:	at Tc 65℃ (Tc at CY3): 50,000 hrs
Maximum Tc temperature:	N/A
