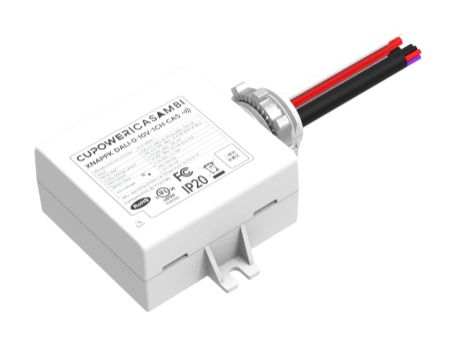

167203 XNAPPK DALI-0-10V-1CH-CAS

< Back

L2.74 x W2.67 x H1.06 in

WT: 0.11 kg

Product description

Casambi Bluetooth Mesh Enabled Wireless Control
Long-range, single-channel 0-10 V/DALI controller with built-in 16 A relay
Simply remove a standard 1/2’’ knockout to install the compact module
12 Vdc & 24 Vdc auxiliary output for sensor based control
Use of a relay, 0-10 V dimming, DALI dimming and a 1/2” knock-out enable, compatibility with many standard industry fixtures
Commissioning & parameter setup via dedicated mobile App, compatible with iOS & Android OS
Utilizes bluetooth mesh technology for reliable and secure wireless communication
Switching Relay with Zero-Crossing
5 years warranty

Swipe for more

Rated input voltage range:	120...277 Vac
Max.input voltage range:	108...305 Vac
RF transmit power:	+ 8 dBm
Wireless frequency:	2.4 GHz
Wireless range (open air):	30 m
Output voltage 0...10V:	0...10 Vdc
Output current 0...10 V:	100 mA
Output voltage DALI:	12 Vdc
Output current DALI:	20 mA
Max 0-10V sinking current:	100 mA

Product name	Input voltage	DALI	0-10V
XNAPPK DALI-0-10V-1CH-CAS	120...277 Vac	20 mA	100 mA

Operating temperature:	-20…+55℃
Storage temperature:	-20…+75℃
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc 75°C: 50,000 hrs
Moisture and dust rating:	IP20
