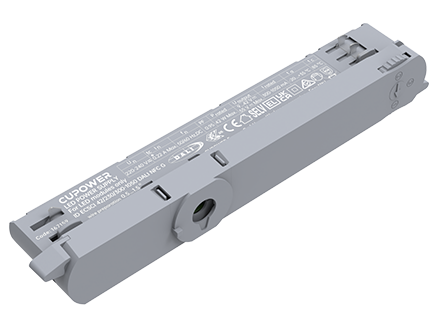

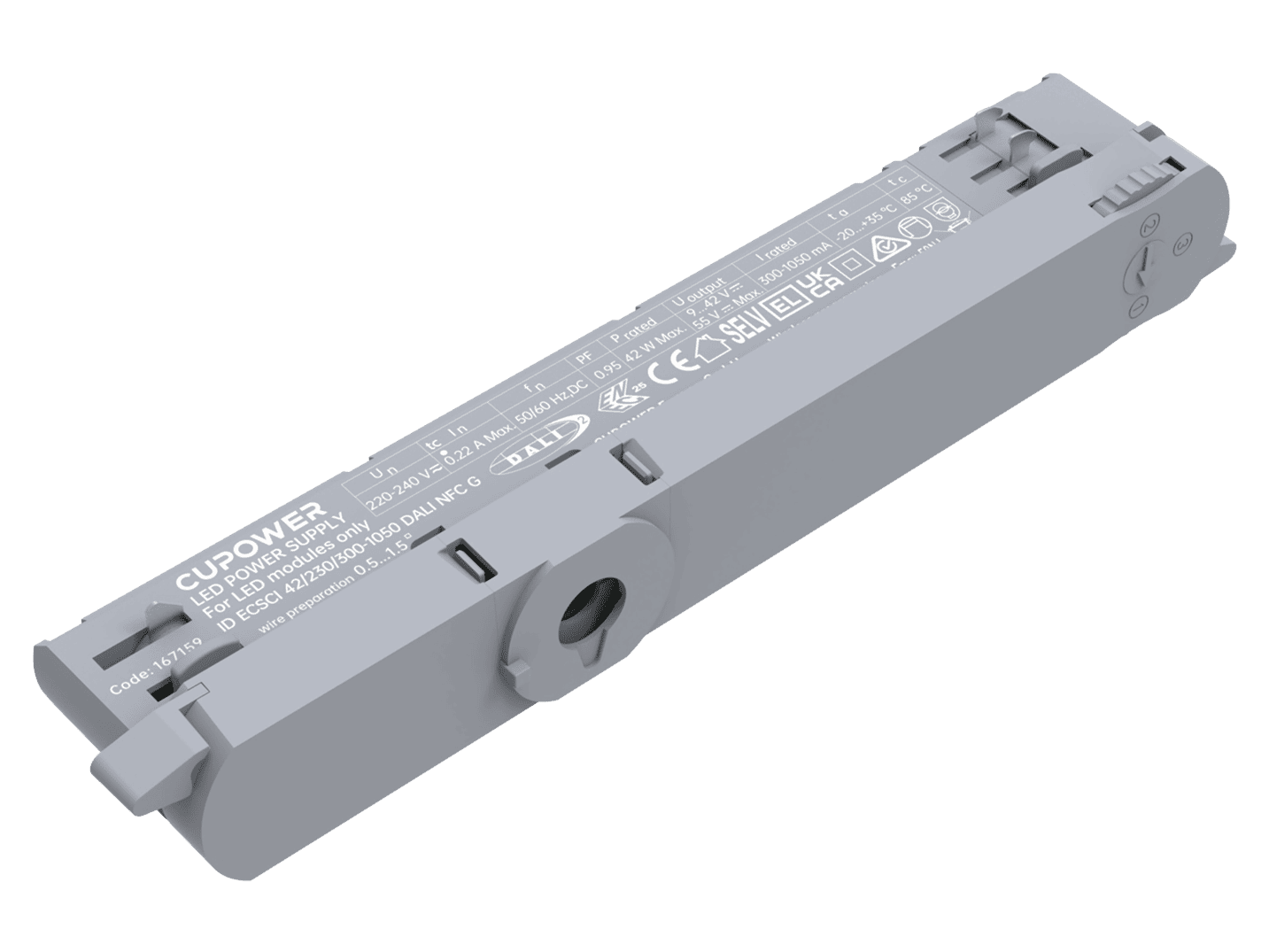

167159 ID ECSCI 42/230/300-1050 DALI NFC G

< Back

L208 x W31 x H42 mm

WT: 0.14 kg

Product description

Standby power consumption: < 0.3 W
Dimming range 1-100% (amplitude dimming), Flicker-free
Equipped with i-Data: enabling data managament according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
Supports NFC readers for precise setting and control of multiple functions
The DC emergency mode adjusts the currents to 15% by default (adjustable)
Packing unit programming: configure a large number of drivers in parallel via NFC

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...280 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac & 0.24 A @ 230 Vdc
THD:	10%
Inrush current:	135 μs
MCB Quantity B10A:	28
MCB Quantity C10A:	37
MCB Quantity B16A:	46
MCB Quantity C16A:	59
Output current tolerance:	± 5%
Output voltage max.:	≤ 55 V
Ripple:	5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	DALI-2, push dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCI 42/230/300-1050 DALI NFC G

300...1050 mA

220...240 Vac

220...240 Vdc

9...42 V

88%

± 5%

> 0.9

Operating temperature:	-20...+35℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	50000 hrs
Maximum Tc temperature:	110℃
