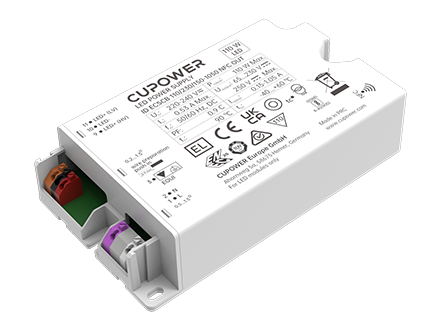

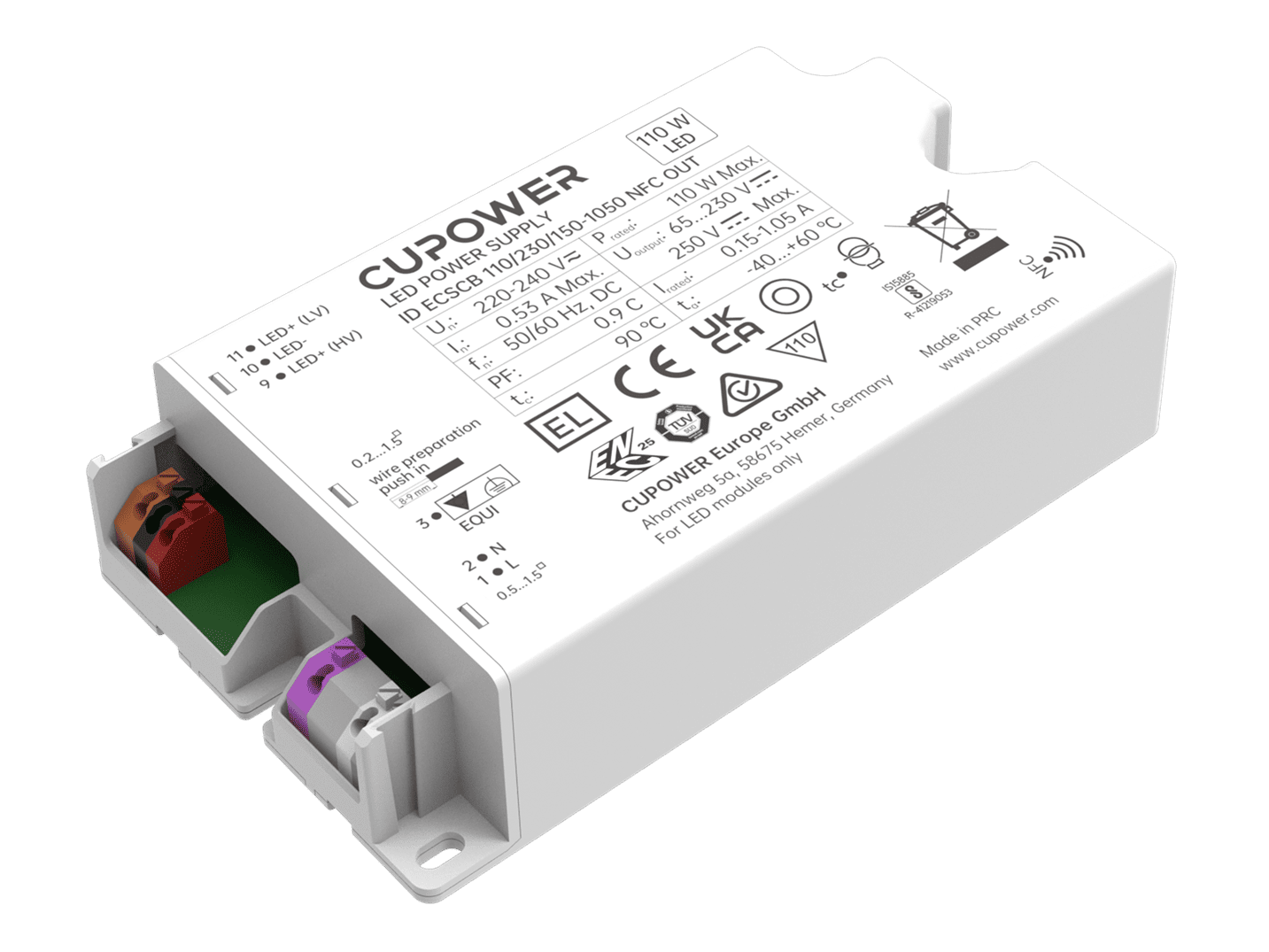

164134 ID ECSCB 110/230/150-1050 NFC OUT

< Back

L150 x W85 x H37.5 mm

WT: 0.66 kg

Product description

Built-in isolated adjustable power LED driver
For Zhaga Book18 Luminaires
Current adjustment via NFC
Flicker free LED driver
Output current 150…1050 mA
Max. output power 110 W
Constant lumen output (CLO)
Current output default value 150 mA
For luminaires with protection class l, ll
5 years warranty

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.56 A @ 230 Vac
THD:	< 10%
Inrush current [Aµs]:	71A, 187μs
MCB Quantity B10A:	7
MCB Quantity C10A:	13
MCB Quantity B16A:	12
MCB Quantity C16A:	21
Output current tolerance:	± 5%
Output voltage max.:	300 V
Ripple:	3% (ripple = peak/average total 100 Hz)
Standby power consumption:	N/A
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	NFC
Withstand voltage:	l/p-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input voltage

Output voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 110/230/150-1050 NFC OUT

150...1050 mA

220...240 Vac

220...240 Vdc

65...230 V

93%

± 5%

> 0.95

Operating temperature:	-40...+60℃
Storage temperature:	-40...+85℃
Working humidity:	5%...85%
Store humidity:	5%...95%
Driver lifetime:	HV at Tc 90℃: 50,000 hrs; HV at Tc 80: 100,000 hrs; LV at Tc 85℃: 50,000 hrs; LV at Tc 75℃: 100,000 hrs; @ 230 Vac
Maximum Tc temperature:	90℃
