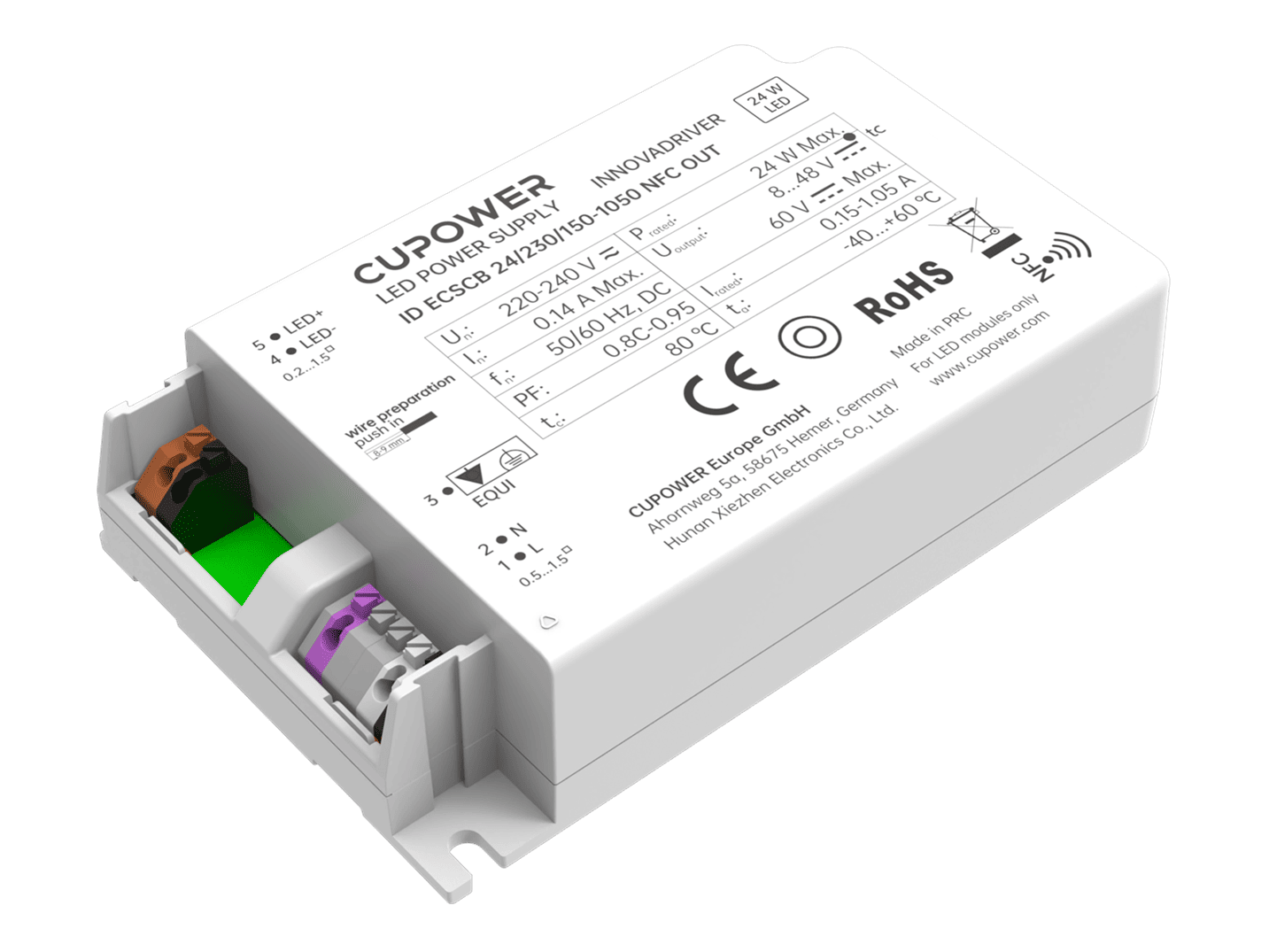

164110 ID ECSCB 24/230/150-1050 NFC OUT

< Back

L122.8 x W76.3 x H31 mm

WT: 0.18 kg

Product description

Built-in isolated adjustable power LED driver
Current adjustment via NFC
Flicker free LED driver
Output current 150…1050 mA
Max. output power 24 W
Constant lumen output (CLO)
Current output default value 150 mA
For luminaires with protection class l, ll
5 years warranty

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.128 A @ 230 Vac
THD:	10%
Inrush current [Aµs]:	34.4A, 176μs
MCB Quantity B10A:	17
MCB Quantity C10A:	29
MCB Quantity B16A:	28
MCB Quantity C16A:	46
Output current tolerance:	± 3%
Output voltage max.:	60 V
Ripple:	3% (ripple = peak/average total 100 Hz)
Standby power consumption:	N/A
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	N/A
Dimming range:	N/A
Adjustable output current:	NFC
Withstand voltage:	l/p-FG: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 24/230/150-1050 NFC OUT

150...1050 mA

220...240 Vac

220...240 Vdc

8...48 V

88.5%

± 5%

> 0.9

Operating temperature:	-40...+60℃
Storage temperature:	-40...+85℃
Working humidity:	5%...85%
Store humidity:	5%...95%
Driver lifetime:	50000 hrs
Maximum Tc temperature:	85℃
