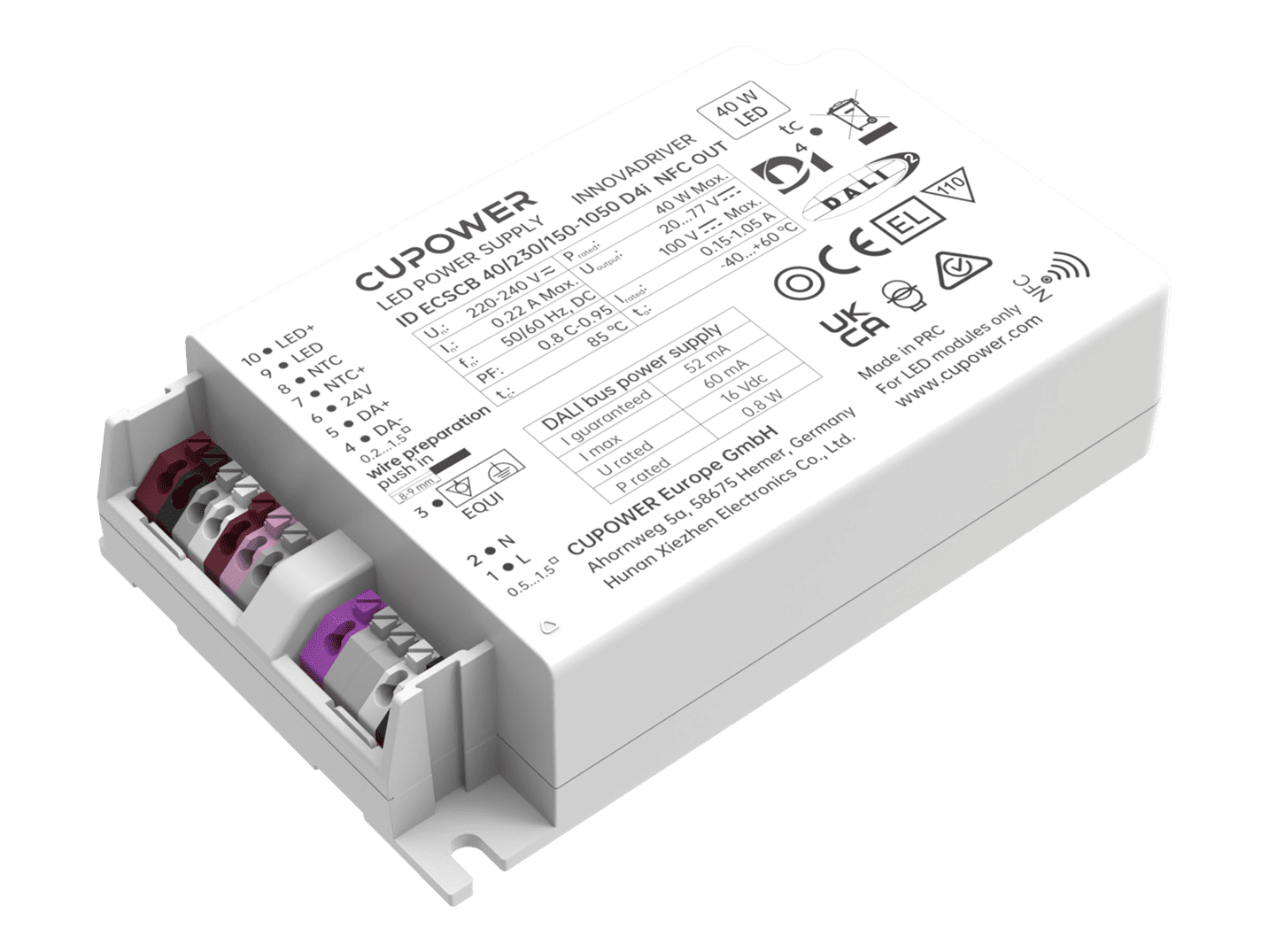

163472 ID ECSCB 40/230/150-1050 D4i NFC OUT

< Back

L122.8 x W76.3 x H31 mm

WT: 0.215 kg

Product description

Built-in isolated adjustable power LED driver
Supports DALI-2 D4i DALI part 251, 252, 253 + AUX
Current adjustment via NFC
Flicker free LED driver
Output current 150…1050 mA
Max. output power 40 W
Constant lumen output (CLO)
DC emergency：Current output decreased to 15% (other values can be programmed)
Current output default value 150 mA
For luminaires with protection class l, ll
Auxiliary 24 V, 3 W power supply
5 years warranty
Season Control, supports scheduled brightness control for lower energy consumption at midnight
Equipped with i-CLO: Considers driver ambient temperature for CLO functionality

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.22 A @ 230 Vac
THD:	≤ 10%
Inrush current [Aµs]:	42 A / 161 us
MCB Quantity B10A:	15
MCB Quantity C10A:	25
MCB Quantity B16A:	25
MCB Quantity C16A:	42
Output current tolerance:	± 5% at rated input voltage range
Output voltage max.:	85 V
Ripple:	≤ 5%
Standby power consumption:	< 0.3 W@230 Vac
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	DALI-2
Dimming range:	1-100% 10mA Min
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 40/230/150-1050 D4i NFC OUT

150...1050 mA

220...240 Vac

220...240 Vdc

20...77 V

90%

± 5%

0.9

Operating temperature:	-40...+60℃
Storage temperature:	-40...+85℃
Working humidity:	5%...85%
Store humidity:	5%...95%
Driver lifetime:	50000 hrs
Maximum Tc temperature:	90℃
