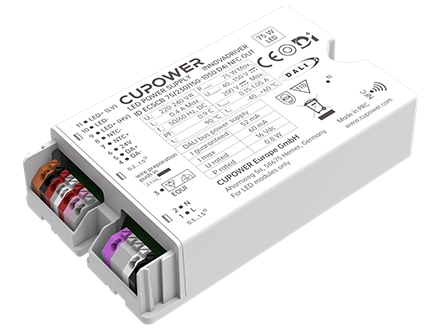

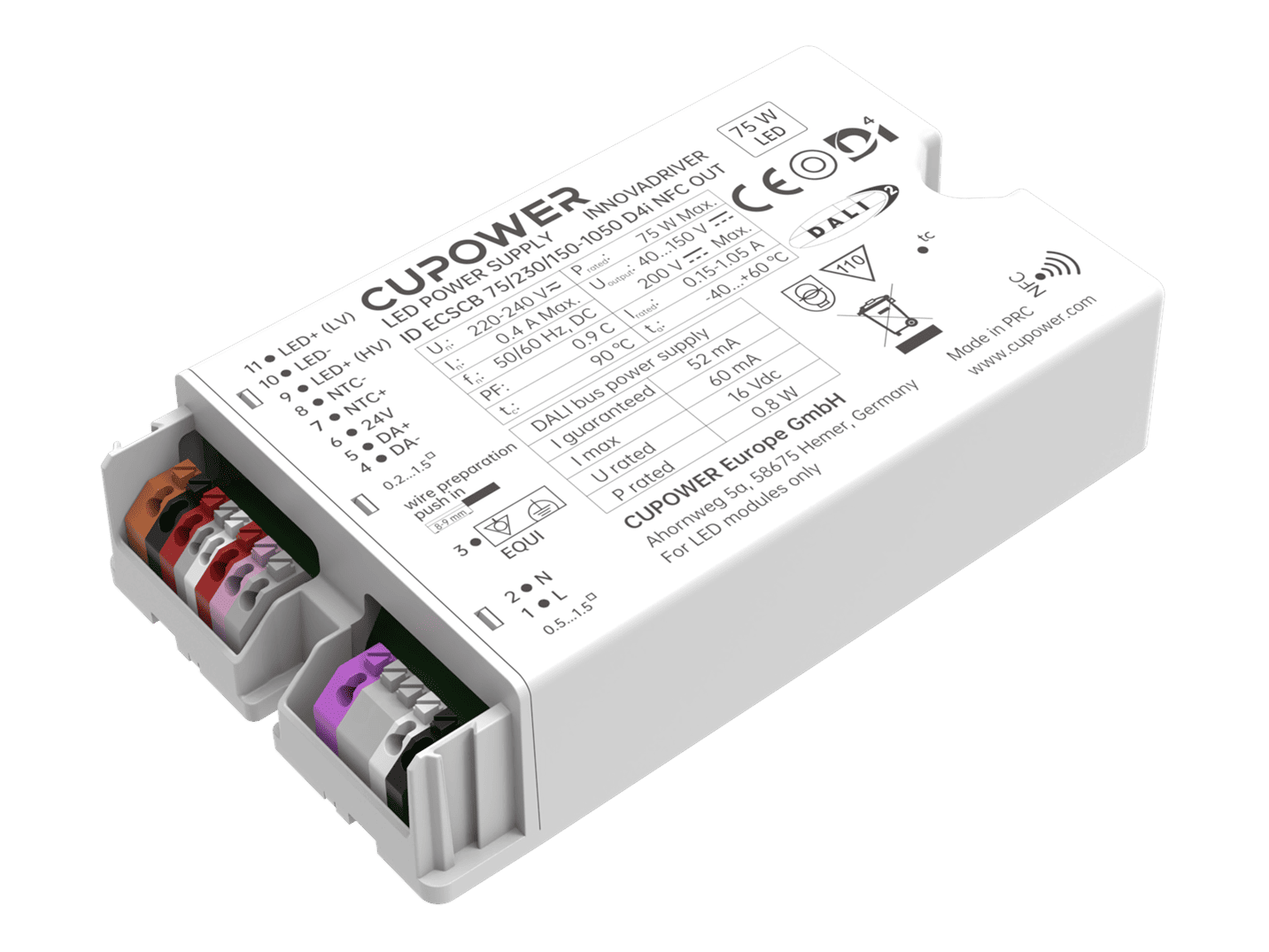

163427 ID ECSCB 75/230/150-1050 D4i NFC OUT

< Back

L133 x W77 x H31 mm

WT: 0.52 kg

Product description

Built-in isolated adjustable power LED driver
Supports DALI-2 D4i DALI parts 150, 250, 251, 252, 253
For Zhaga Book18 Luminaires
Current adjustment via NFC
Flicker free LED driver
Output current 150…1050 mA
Max. output power 75 W
Constant lumen output (CLO)
DC emergency：Current output decreased to 15% (other values can be programmed)
Current output default value 150 mA
For luminaires with protection class l, ll
Auxiliary 24 V, 3 W power supply
5 years warranty
Season Control, supports scheduled brightness control for lower energy consumption at midnight
Equipped with i-CLO: Considers driver ambient temperature for CLO functionality

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.4 A @ 230 Vac
THD:	< 10%
Inrush current [Aµs]:	55 A, 185 μs
MCB Quantity B10A:	10
MCB Quantity C10A:	17
MCB Quantity B16A:	16
MCB Quantity C16A:	27
Output current tolerance:	± 5%
Output voltage max.:	200 V
Ripple:	3%
Standby power consumption:	0.3 W (@ DALI BUS OFF)
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	DALI-2
Dimming range:	1%...100% (min. 10 mA)
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ECSCB 75/230/150-1050 D4i NFC OUT

150...1050 mA

220...240 Vac

220...240 Vdc

40...150 V

92.5%

± 5%

> 0.95

Operating temperature:	-40...+60℃
Storage temperature:	-40...+85℃
Working humidity:	5%...85%
Store humidity:	5%...95%
Driver lifetime:	HV at Tc 90℃: 50,000 hrs; HV at Tc 80℃: 100,000 hrs; LV at Tc 85℃: 50,000 hrs; LV at Tc 75℃: 100,000 hrs; @ 230 Vac
Maximum Tc temperature:	90℃
