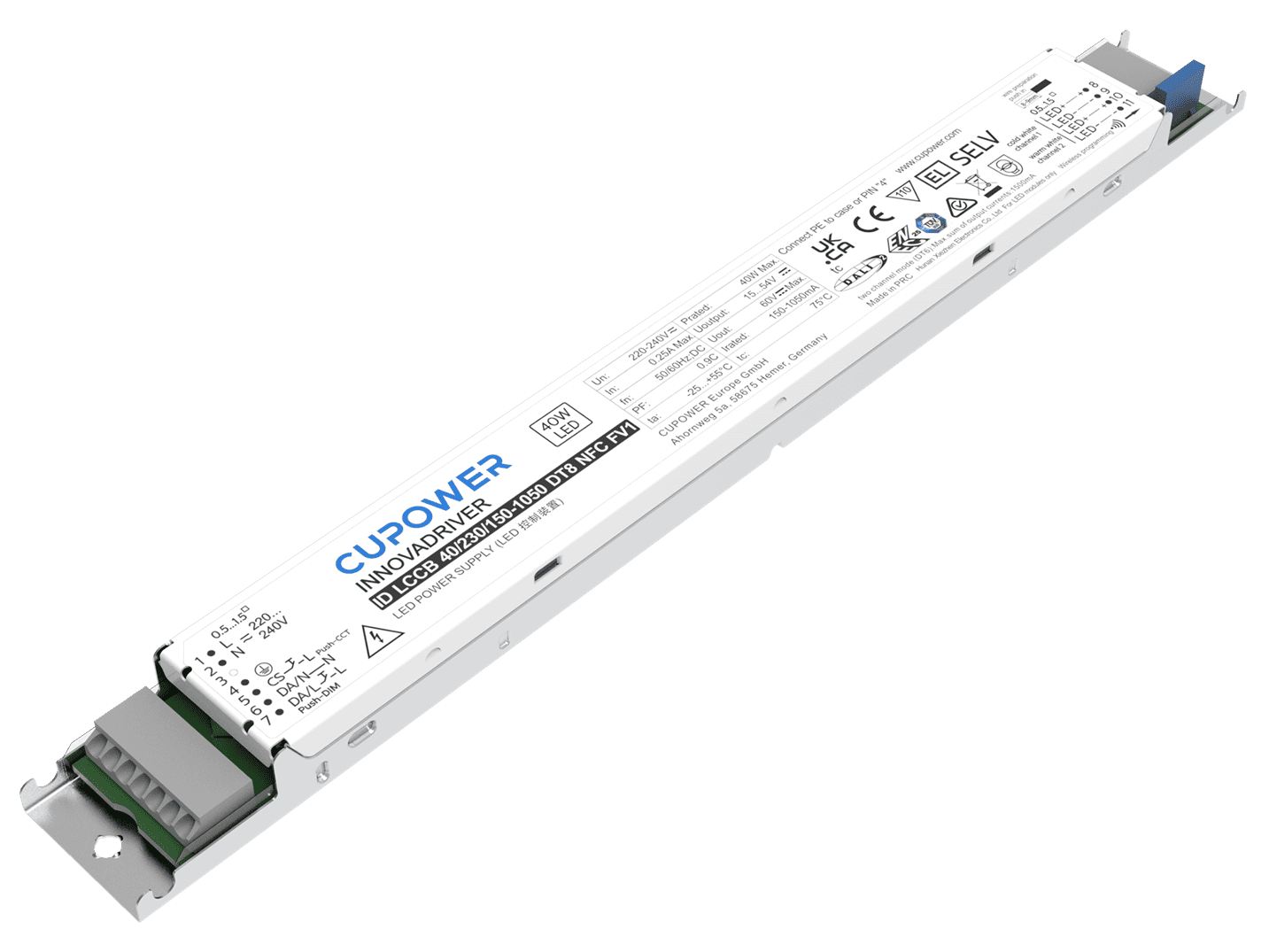

161102 ID LCCB 40/230/150-1050 DT8 NFC FV1

< Back

L278 x W30 x H16 mm

WT: 0.237 kg

Product description

• Constant current drivers with wide operating windows
• Supports DALI-2, push DIM and push CCT
• Equipped with i-Data enabling data management according to DALI parts 251, 252 and 253 (luminaire data, energy reporting, diagnostic & maintenance)
• Supports NFC readers for precise control of multiple functions
• The DC emergency mode adjusts the current to 15% by default (adjustable)
• Supports two independent DT6 or one DT8 output, Smooth dimming with dimming range 1-100% (amplitude dimming)
• Standby power consumption＜0.3 W, meets ErP energy efficiency certification

Rated input voltape range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...278 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.24 A @ 230 Vac
THD:	≤ 20% at rated input voltage range @ full load
Inrush current [Aµs]:	Inrush current lpeak: 15 A Inrush current Twidth: 25 μs
MCB Quantity B10A:	40
MCB Quantity C10A:	40
MCB Quantity B16A:	64
MCB Quantity C16A:	64
Output current tolerance:	± 5% at rated input voltage range
Output voltage max:	60 Vdc
Ripple:	≤ 5%
Standby power consumption:	< 0.3 W
Output PstLM:	< 1 at full load @ rated input voltage
Output SVM:	< 0.4 at full load @ rated input voltage
Dimming mode:	DALI-2, Push-Dimming
Dimming range:	1％...100％
Adjustable output current:	NFC
Withstand voltage:	I/P-O/P: 3.75KVac, < 5mA 60S; I/P-DA: 1.5KVac, < 5mA 60S I/P-FG: 1.5KVac, < 5mA 60S; O/P-DA: 1.5KVac, < 5mA 60S O/P-FG: 1.5KVac, < 5mA 60S; DA-FG: 1.5KVac, < 5mA 60S

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID LCCB 40/230/150-1050 DT8 NFC FV1

150...1050 mA

220...240 Vac

220...240 Vdc

15...54 V

88%

± 5%

> 0.9

Operating temperature:	Ta -25…+55°C
Storage temperature:	-40…+85°C
Working humidity:	10%…90%
Store humidity:	5%…95%
Driver lifetime:	at Tc < 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:	85°C

Pcs./ carton:	20 pcs
Carton size:	299 x 128 x 103 mm
Gross weight:	5.7 kg
