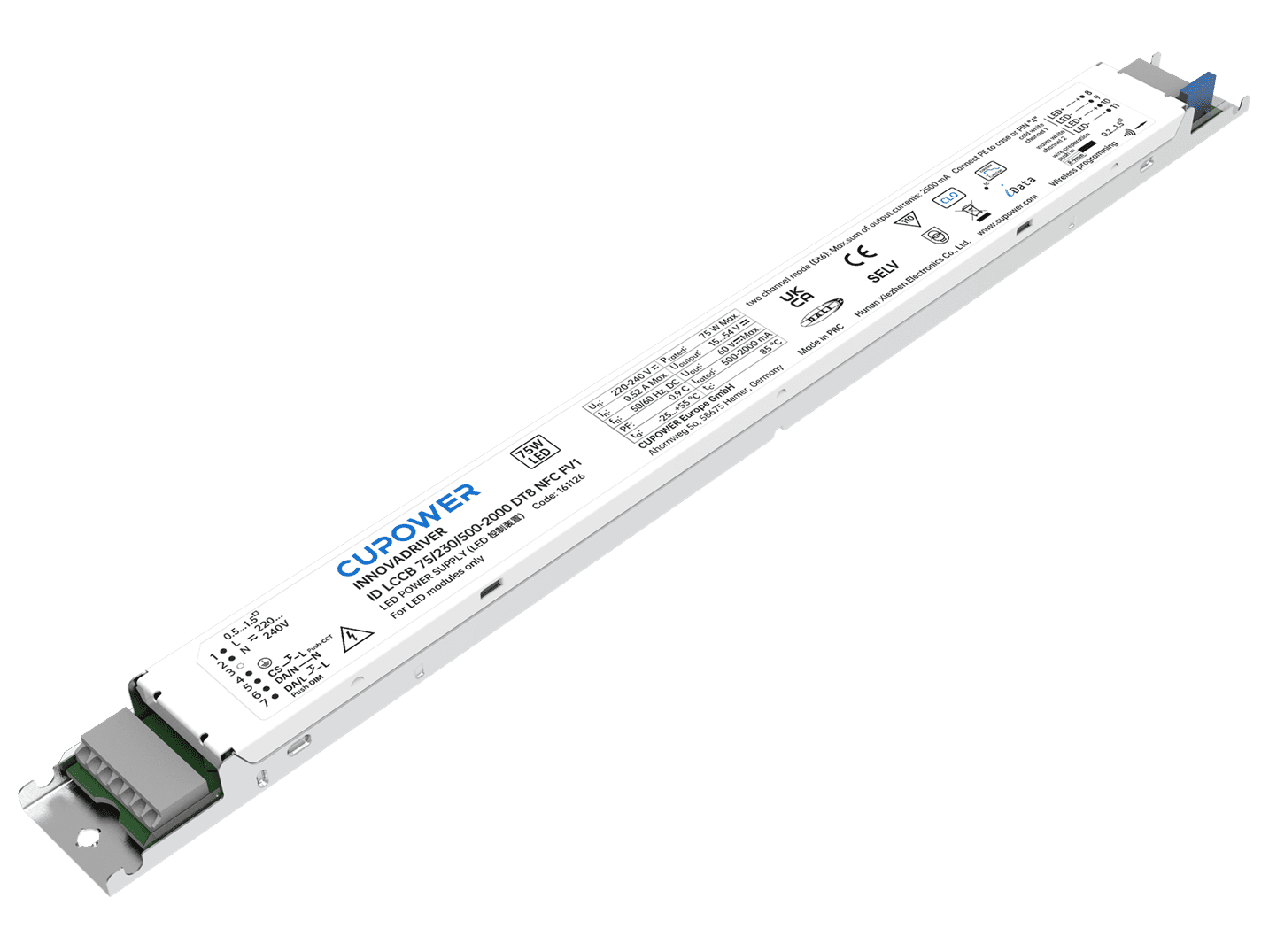

161126 ID LCCB 75/230/500-2000 DT8 NFC FV1

< Back

L360 x W29.5 x H16 mm

WT: 0.25 kg


Questions Order a Sample
Product description
Built-in isolated adjustable power LED driver
Flicker-free LED driver
Supports DALI-2, push dimming, push CCT control
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Output current 500…2000 mA
Max. output power 75 W
Constant lumen output (CLO)
DC emergency
Current output default value 15%
For luminaires with IEC protection class I
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...278 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.40 A @ 230 Vac & 0.40 A @ 230 Vdc
THD:< 20%
Inrush current [Aµs]:Inrush current lpeak: 23 A, Inrush current Twidth: 33.5 μs
MCB Quantity B10A:24
MCB Quantity C10A:24
MCB Quantity B16A:39
MCB Quantity C16A:39
Output current tolerance:± 5% at rated input voltage range
Output voltage max:≤ 60 Vdc
Ripple:2%
Standby power consumption:< 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push-Dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/P-O/P: 3.75KVac, < 5mA 60S; I/P-DA:1.5KVac, < 5mA 60S

I/P-FG: 1.5KVac, < 5mA 60S; O/P-DA: 1.5KVac, < 5mA 60S

O/P-FG: 1.5KVac, < 5mA 60S; DA-FG: 1.5KVac, < 5mA 60S

Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID LCCB 75/230/500-2000 DT8 NFC FV1500...2000 mA

220...240 Vac

220...240 Vdc

15...54 V91%± 5%0.9


Operating temperature:-25…+55°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%…95%
Driver lifetime:at Tc 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:85°C
Pcs./ carton:20 pcs
Carton size:381 x 128 x 103 mm
Gross weight:5.2 kg
