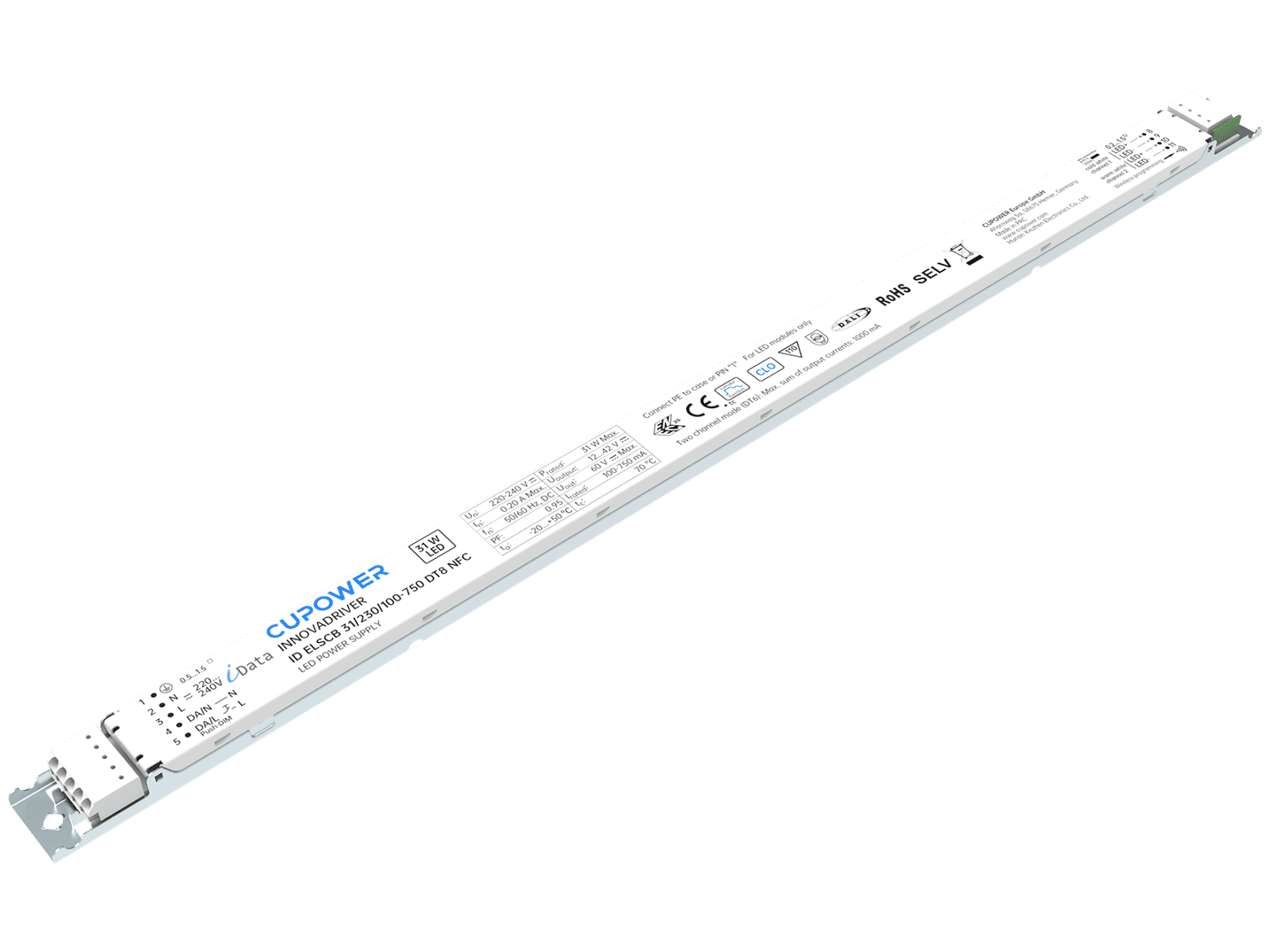

110564 ID ELSCB 31/230/100-750 DT8 NFC

< Back

L405 x W20 x H11 mm

WT: 0.18 kg

Product description

Isolated adjustable power color temperature LED driver
Supports DALI-2, push DIM control
Supports i-Data function (DALI part 251, 252, 253)
Current adjustment via NFC
Output current 100 … 750 mA
Max. output power 31 W
Flicker-free, dimming range 1 … 100 % (amplitude dimming)
Current output default value 100 %
DC emergency
For luminaires with protection class l
Constant lumen output (CLO)
Anti-glow
5 years warranty

Swipe for more

Rated input voltage range:	220 … 240 VAC
Max.input voltage range:	198 … 264 VAC
Rated input current DC range:	220 … 240 VDC
DC operation voltage range:	176 … 276 VDC
Safety frequency range:	0/50/60 Hz
Rated input current:	0.2 A @ 230 VAC & 0.2 A @ 230 VDC
THD:	< 10 %
Inrush current [Aµs]:	TBD
MCB Quantity B10A:	TBD
MCB Quantity C10A:	TBD
MCB Quantity B16A:	TBD
MCB Quantity C16A:	TBD
Output current tolerance:	± 5 %
Output voltage max.:	50 VDC
Ripple:	5 %
Standby power consumption:	≤ 0.30 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	DALI-2, push dimming
Dimming range:	1 … 100 %
Adjustable output current:	NFC
Withstand voltage:	I/p-O/p: 3 kVAC, < 5 mA 60 s, I/p-DA: 1.5 kVAC, < 5 mA 60 s, O/p-DA: 1.5 kVAC, < 5 mA 60 s

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELSCB 31/230/100-750 DT8 NFC

100...750 mA

220 … 240 VAC

220 … 240 VDC

12 … 45 V

88 %

± 5 %

0.9

Operating temperature:	-20 … +50 ℃
Storage temperature:	-25 … +85 ℃
Working humidity:	10 … 90 %
Storage humidity:	5 … 95 %
Driver lifetime:	at Tc 65 ℃: 50,000 h @ 230 VAC (0.2 % / 1,000 h failure rate)
Maximum Tc temperature:	70 ℃
