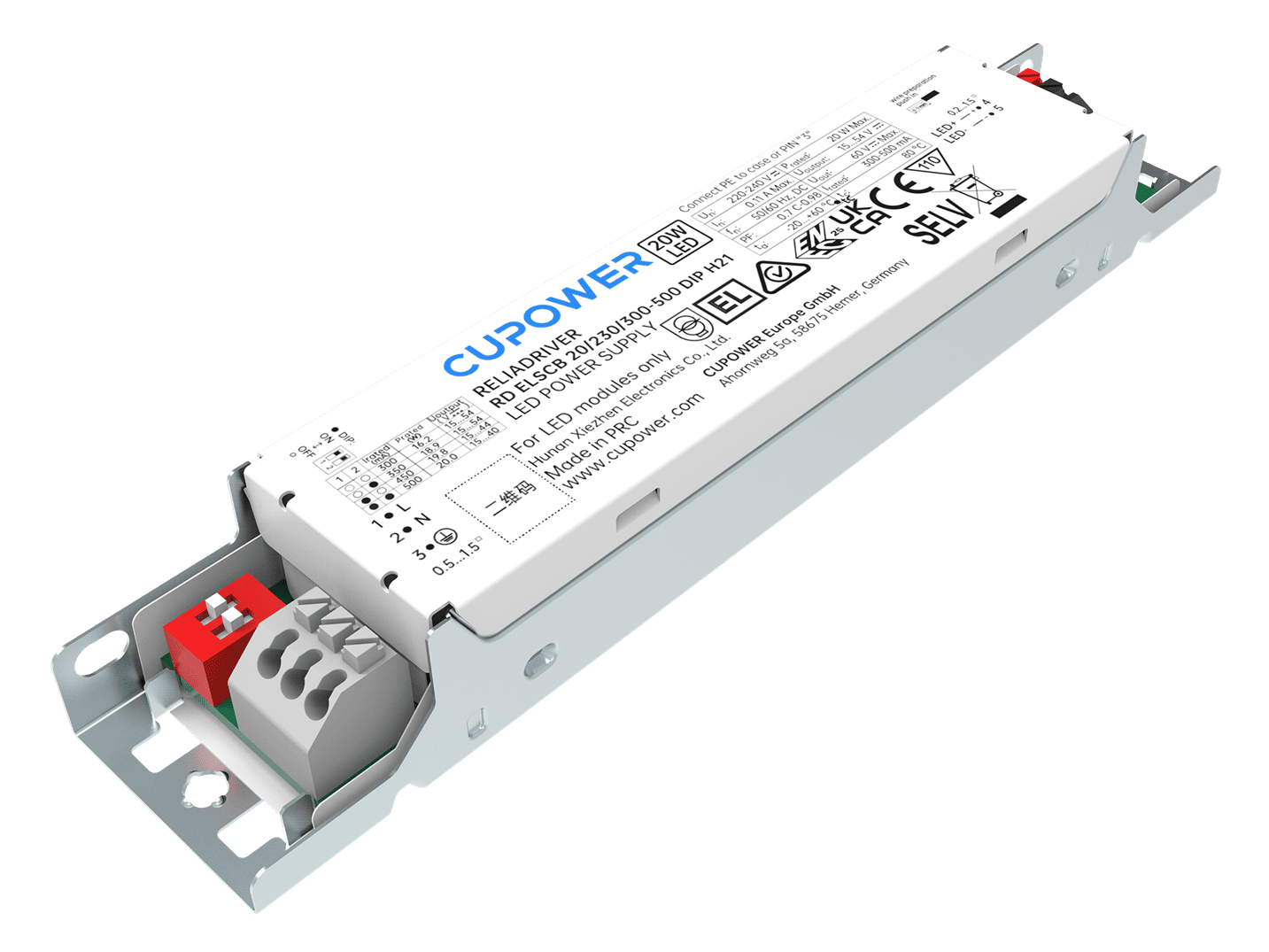

680054 RD ELSCB 20/230/300-500 DIP H21

< Back

L157 x W30 x H21 mm

WT: 0.09 kg

Questions Order a Sample
Product description
Built-in isolated adjustable power LED driver
Current adjustment via DIP
Flicker free LED driver
Output current: 300 mA , 350 mA, 450 mA, 500 mA
Max. output power 20 W
Nominal life-time up to 50,000 h
For luminaires with protection class l
DC emergency
5-year warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:198…280 Vdc
Safety frequency range:N/A
Rated input current:0.11 A @ 230 Vac & 0.11 A @ 230 Vdc
THD:< 10%
Inrush current [Aµs]:15.7 A, 104 µs
MCB Quantity B10A:66
MCB Quantity C10A:80
MCB Quantity B16A:106
MCB Quantity C16A:128
Output current tolerance:± 5% at rated input voltage range
Output voltage max:≤ 60 Vdc
Ripple:5% (ripple = peak/average total 100 Hz)
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP switch
Withstand voltage:

l/p-O/p: 3 kVac, < 5 mA 60 sec, l/p-FG: 1.5 kVac, < 5 mA 60 sec, O/p-FG: 1.5 kVac, < 5 mA 60 sec

Product nameOutput
                 current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
RD ELSCB 20/230/300-500 DIP H21300...500 mA

220...240 Vac

220...240 Vdc

15...54 V87%± 5%> 0.95


Operating temperature:-20…+60°C
Storage temperature:-25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 80°C: 30,000 hrs; at Tc 70°C: 50,000 hrs  @ 230 Vac;
Maximum Tc temperature:80°C
Pcs./ carton:60 pcs
Carton size:317 x 167 x 160 mm
Gross weight:5.9 kg
  • Download
