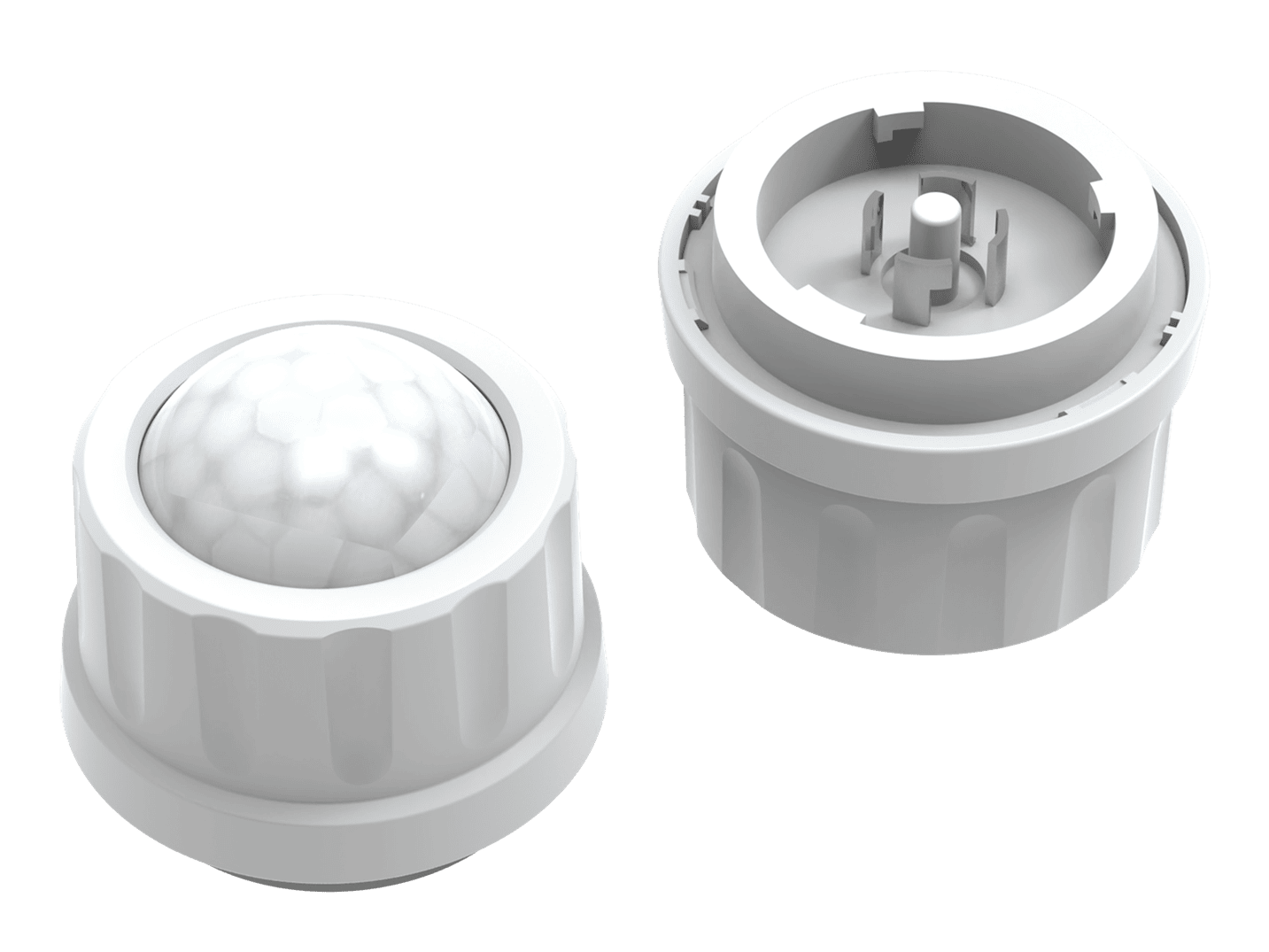

111196 IC-S621-PL-0-10V-PW

< Back

Ø 1.87 x 1.65 in [Ø 47.55 x H41.8 mm]

WT: 0.028 kg


Questions Order a Sample
Product description
Monitoring of light and presence detection
Based on pyroelectric effect and high-performance digital signal processing
Compact sensor that can be integrated into luminaries
Compatible with infrared remote-control and flexible parameter configuration
0-10 V Control Output
Conforms to Zhaga Book 18 standards
Mounting height up to 12 meters
Swipe for more
Operating voltage:12 VDC ± 10 %
Standby current:

5 … 10 mA

Power supply type:Drive separated supply
PIR axial distance (mounting height):Max 12 m
PIR axial coverage angle:90°
PIR tangential coverage angle:360°
Daylight threshold:Disable-200 Lux (default 200 Lux)
Product namePower SupplyDetection technology

Mounting

height

Dimensions  (L x W x H)

IC-S621-PL-0-10V-PW12 VDCPIR  + Ambient Light Sensor12 mØ 47.55 x 41.8 mm


Operating temperature:-25 ... +70 ℃
Storage temperature:-40 ... +85 ℃
Working humidity:10 ... 90 %
Store humidity:5 ... 95 %
Operating environment:/
Maximum Tc temperature:/
Pcs./ carton:260 pcs
Carton size:440 × 370 × 200 mm
Gross weight:0.550 kg


  • Download
