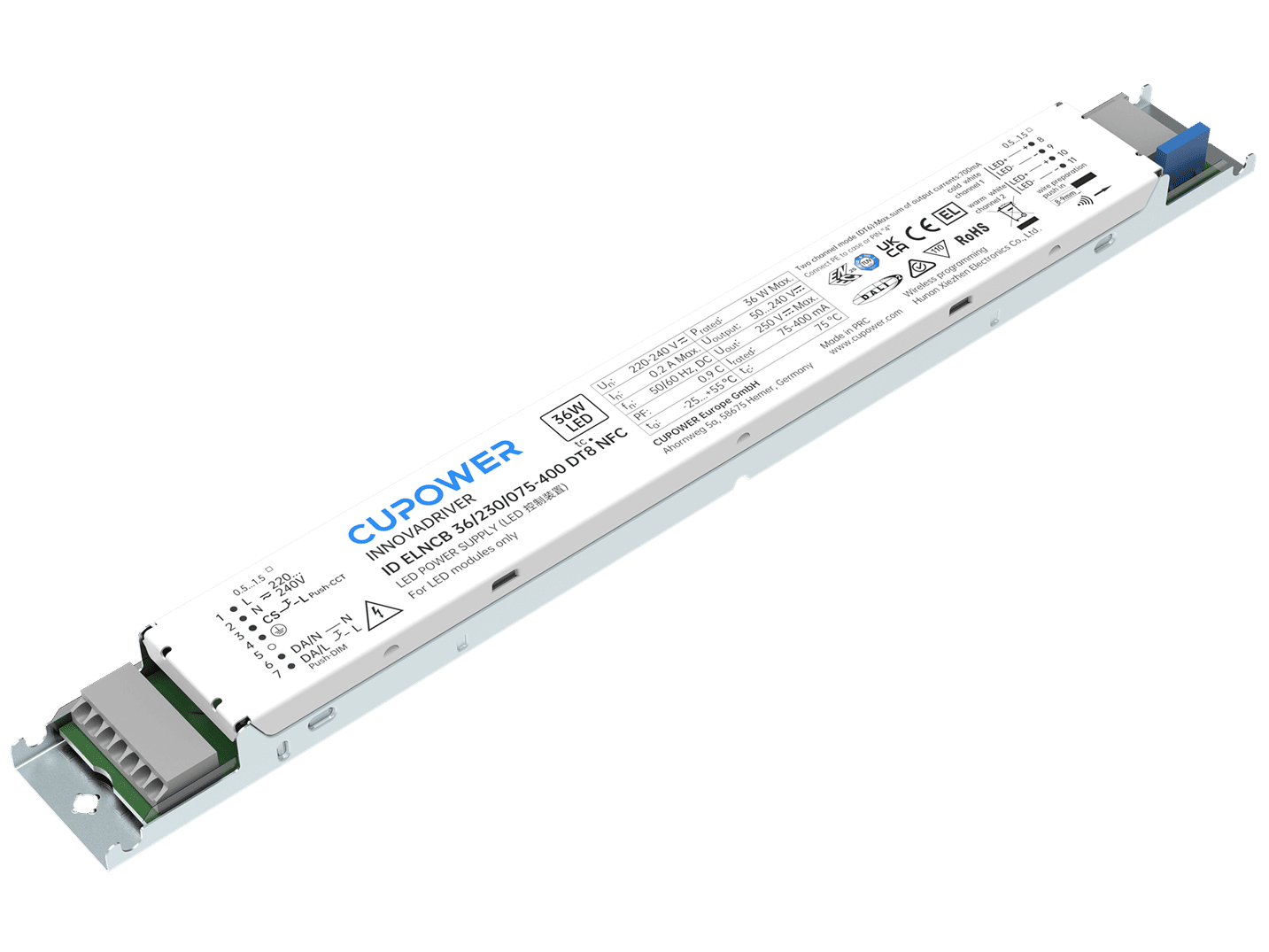

161072 ID ELNCB 36/230/075-400 DT8 NFC

< Back

L278.0 x W29.5 x H16.0 mm

WT: 0.18 kg

Questions Order a Sample
Product description
Flicker-free LED driver
Supports DALI-2, push DIM, push CCT control
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 75…400 mA
Max. output power 36 W
DC emergency
Current output default value 100%
For luminaires with protection class l
Anti-glow
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...278 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.2 A @ 230 Vac & 0.2 A @ 230 Vdc
THD:< 10%
Inrush current [Aµs]:

lnrush current lpeak: 21.3 A, lnrush current Twidth: 142 μs

MCB Quantity B10A:35
MCB Quantity C10A:46
MCB Quantity B16A:56
MCB Quantity C16A:73
Output current tolerance:± 5% at rated input voltage range
Output voltage max:≤ 250 Vdc
Ripple:5%
Standby power consumption:< 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push Dimming, push CCT dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/P-FG: 1.5 kVac, < 5 mA 60 sec

Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID ELNCB 36/230/075-400 DT8 NFC75...400 mA

220...240 Vac

220...240 Vdc

50...240 V90%± 5%0.9

(@ 12...36 W)


Operating temperature-25…+55°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%…95%
Driver lifetime:at Tc 75°C: 50,000 hrs @230 Vac (0.2% / 1,000 h failure rate)
Maximum Tc temperature:75°C
Pcs./ carton:20 pcs
Carton size:

299 x 128 x 103 mm

Gross weight:

4.7 kg
