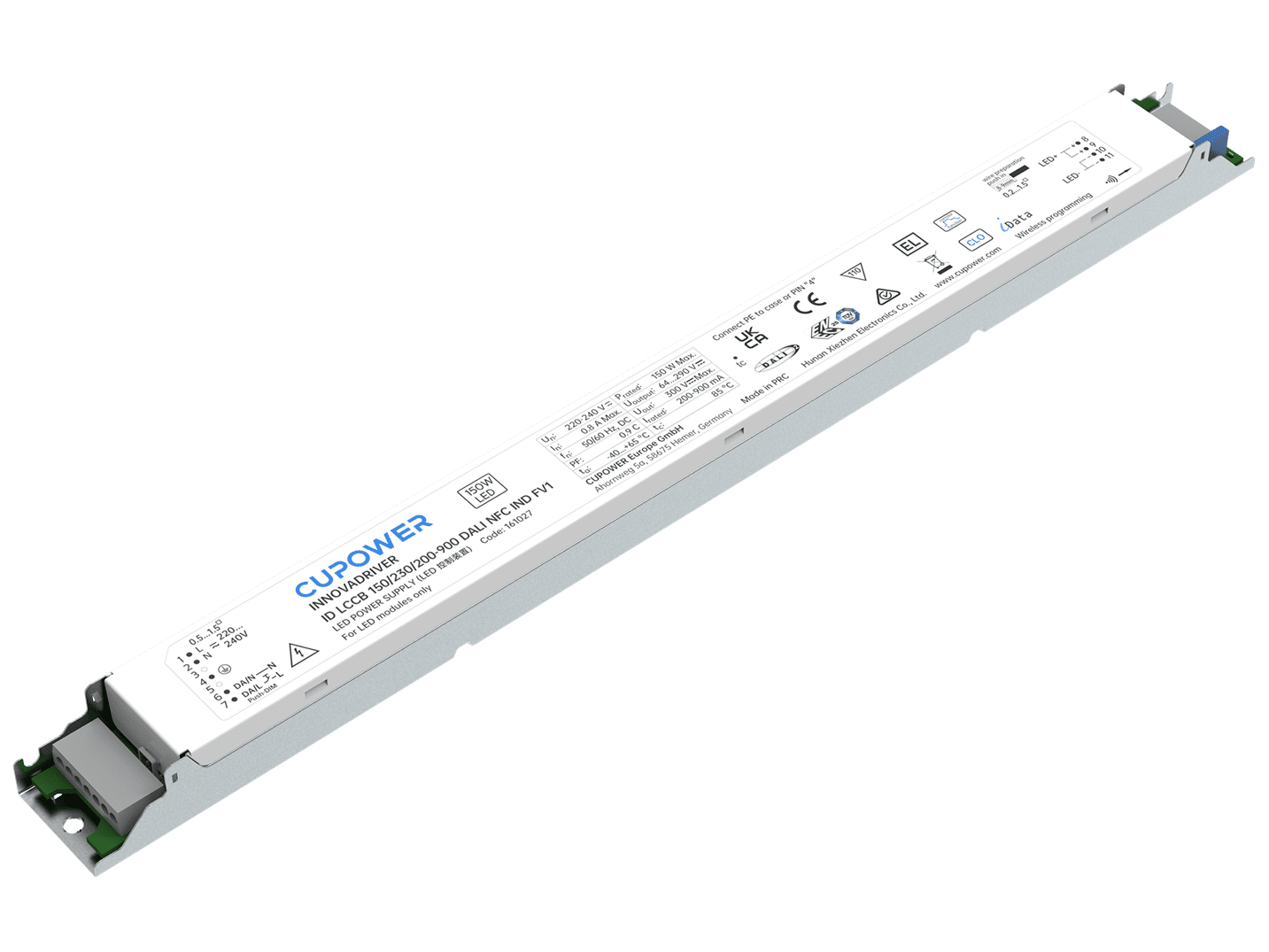

161027 ID LCCB 150/230/200-900 DALI NFC IND FV1

< Back

L358 x W30 x H21 mm

WT: 0.269 kg

Questions Order a Sample
Product description
Built-in non isolated adjustable power LED driver
Supports DALI-2, push DIM
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 200…900 mA
Max. output power 150 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Constant lumen output (CLO)
For luminaires with IEC protection class l
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.80 A @ 230 Vac 0.80 A @ 230 Vdc
THD:< 20%
Inrush current [Aµs]:Inrush current lpeak: 15.6 A, Inrush current Twidth: 260 μs
MCB Quantity B10A:11
MCB Quantity C10A:11
MCB Quantity B16A:18
MCB Quantity C16A:18
Output current tolerance:± 5% at rated input voltage range
Output voltage max:300 Vdc
Ripple:5%
Standby power consumption:< 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push Dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/P-FG: 1.5 kVac, < 5 mA 60 sec

Product nameOutput currentInput
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
ID LCCB 150/230/200-900 DALI NFC IND FV1200...900 mA

220...240 Vac

220...240 Vdc

64...290 V94%± 5%0.9


Operating temperature:-40…+65°C
Storage temperature:-40…+85°C
Working humidity:10%…90%
Store humidity:5%…95%
Driver lifetime:at Tc 85°C: 50,000 hrs; at Tc 75°C: 100,000 hrs @230 Vac
Maximum Tc temperature:85°C
Pcs./ carton:20 pcs
Carton size:381 x 128 x 128 mm
Gross weight:6.4 kg
