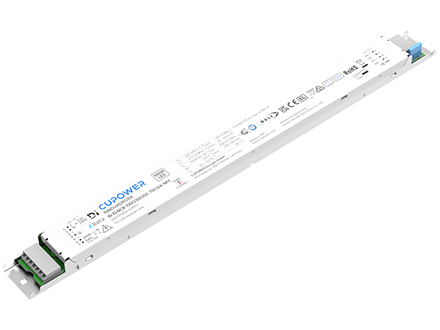

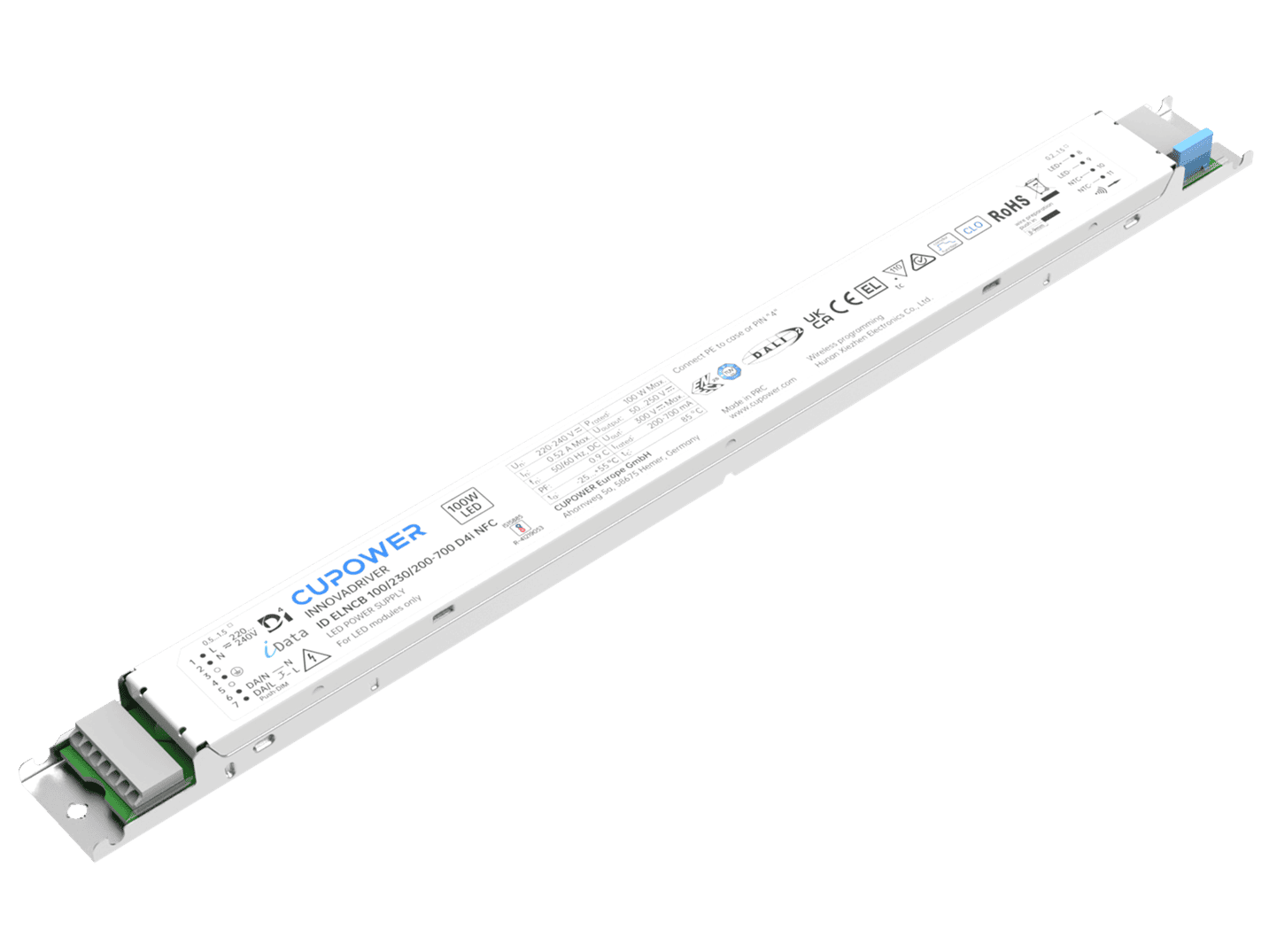

167050 ID ELNCB 100/230/200-700 D4i NFC

< Back

L360 x W30 x H16 mm

WT: 0.23 kg

Product description

Standby power consumption≤0.3 W, meets ErP energy efficiency certification
Support Equipped with i-Data: enabling data managament according to DALI parts 251, 252 and 253
Supports DALl part 250
Supports DALI-2, CorridorDIM, EL emergency, CLO, OTA
Supports NFC readers for precise setting and control of multiple functions

Swipe for more

Rated input voltage range:	220...240 Vac
Max.input voltage range:	198...264 Vac
Rated input current DC range:	220...240 Vdc
DC operation voltage range:	176...276 Vdc
Safety frequency range:	0/50/60 Hz
Rated input current:	0.52 A @ 230 V
THD:	10%
Inrush current [Aµs]:	28.5 A/210 us
MCB Quantity B10A:	17
MCB Quantity C10A:	17
MCB Quantity B16A:	27
MCB Quantity C16A:	27
Output current tolerance:	± 5%
Output voltage max.:	300 V
Ripple:	5%
Standby power consumption:	≤ 0.3 W
Output PstLM:	≤ 1
Output SVM:	≤ 0.4
Dimming mode:	DALI-2, push dimming
Dimming range:	1%...100%
Adjustable output current:	NFC
Withstand voltage:	I/p-FG: 1.5 kVac, < 5 mA 60 sec, I/p-Da: 1.5 kVac, < 5 mA 60 sec, O/p-Da: 1.5 kVac, < 5 mA 60 sec

Product name

Output current

Input
voltage

Output
voltage

Efficiency @full load

Current accuracy

Power factor

ID ELNCB 100/230/200-700 D4i NFC

200...7000 mA

220...240 Vac

220...240 Vdc

50...250 V

93%

± 5%

> 0.9

Operating temperature:	-20...+55℃
Storage temperature:	-25...+85℃
Working humidity:	10%...90%
Store humidity:	5%...95%
Driver lifetime:	50000 hrs
Maximum Tc temperature:	90℃

Pcs./ carton:	20 Pcs
Carton size:	381 x 128 x 103 mm
Gross weight:	5.1 kg
