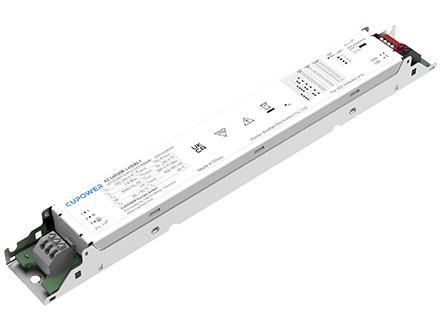

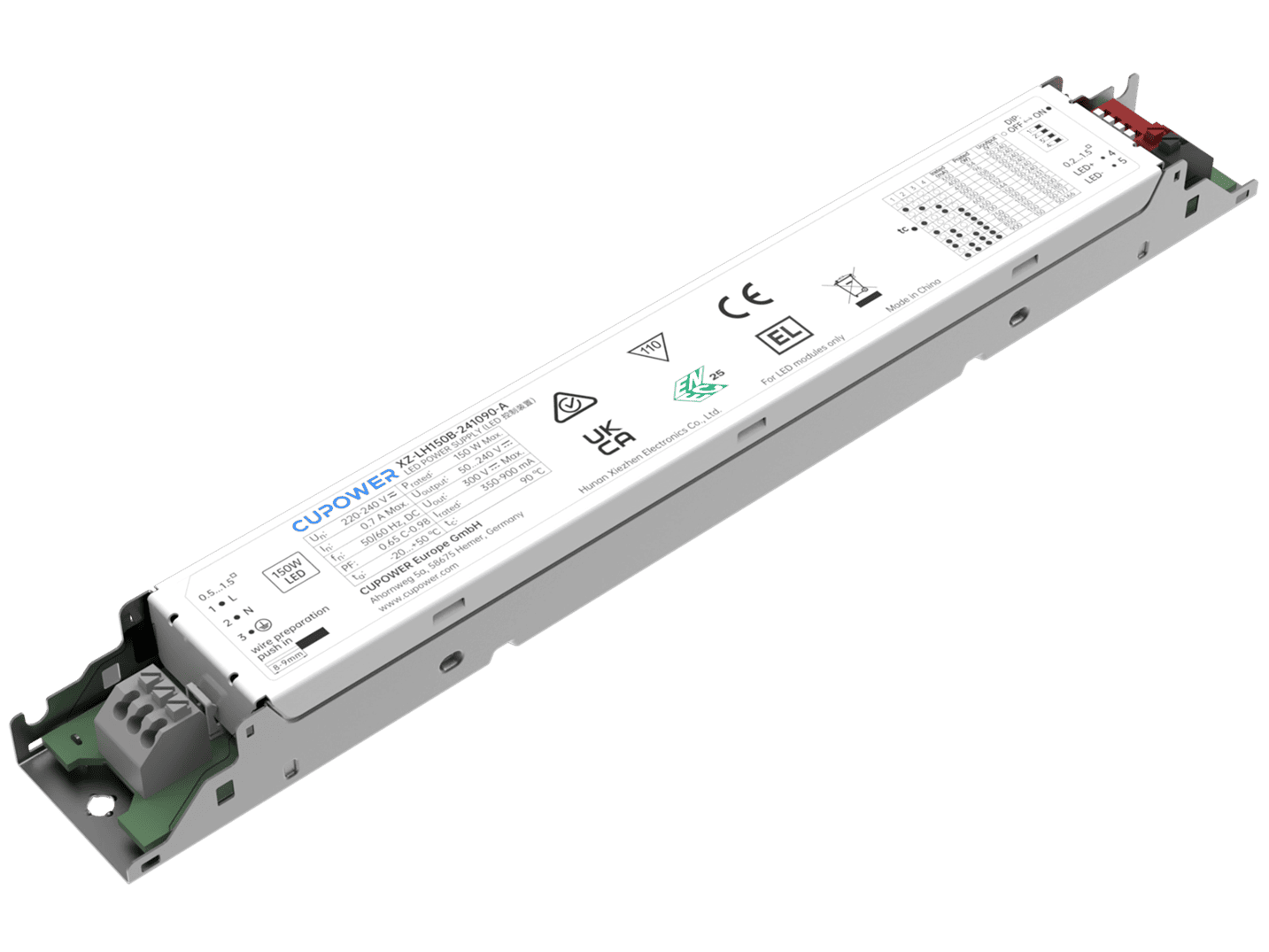

167111 XZ-LH150B-241090-T

< Back

L238x W30 x H21 mm

WT: 0.196 kg

Questions Order a Sample
Product description
• High power factor
• Flicker-free
• DIP switch for multi-current setting
• Support 3-step color temperature selection via sliding switch (optional)
• Suitable for Class I luminaires
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...280 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.9 A @ 230 Vac & 0.9 A @ 230 Vdc
THD:≤ 10%
Inrush current:

310 μs

MCB Quantity B10A:9
MCB Quantity C10A:11
MCB Quantity B16A:15
MCB Quantity C16A:18
Output current tolerance:

± 5%

Output voltage max:300 Vdc
Ripple:≤ 5%
Standby power consumption:N/A
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:N/A
Dimming range:N/A
Adjustable output current:DIP
Withstand voltage:

l/p-FG: 1.5 kVac, < 5 mA 60 sec

Product nameOutput
                 current		Input
               voltage		Output
               voltage		Efficiency                @full loadCurrent accuracyPower factor
XZ-LH150B-241090-T350...900 mA

220...240 Vac

220...240 Vdc

50...240 Vdc96%± 5%＞ 0.9


Operating temperature:

-20…+50°C

Storage temperature:

-25…+85°C

Working humidity:

10%…90%

Store humidity:

5%…95%

Driver lifetime:

at Tc 65°C: 100,000 hrs; at Tc 75°C: 50,000 hrs @ 230 Vac

Maximum Tc temperature:

85°C

Pcs./ carton:

60 pcs

Carton size:

317 x 248 x 175 mm

Gross weight:

12.46 kg

  • Download
