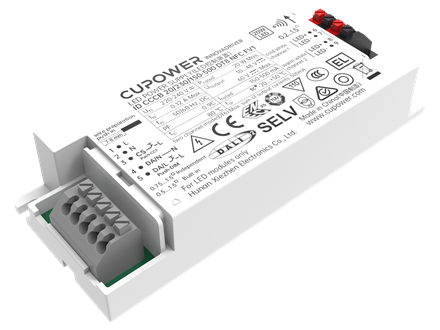

160853 ID CCCB 20/230/150-500 DT8 NFC FV1

< Back

L109 x W43 x H21 mm

WT: 0.079 kg

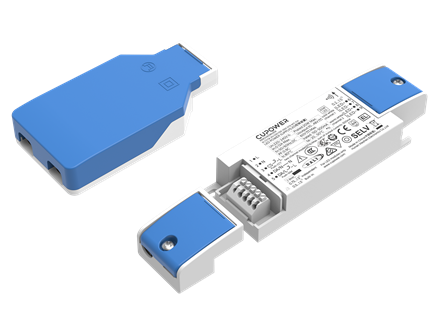

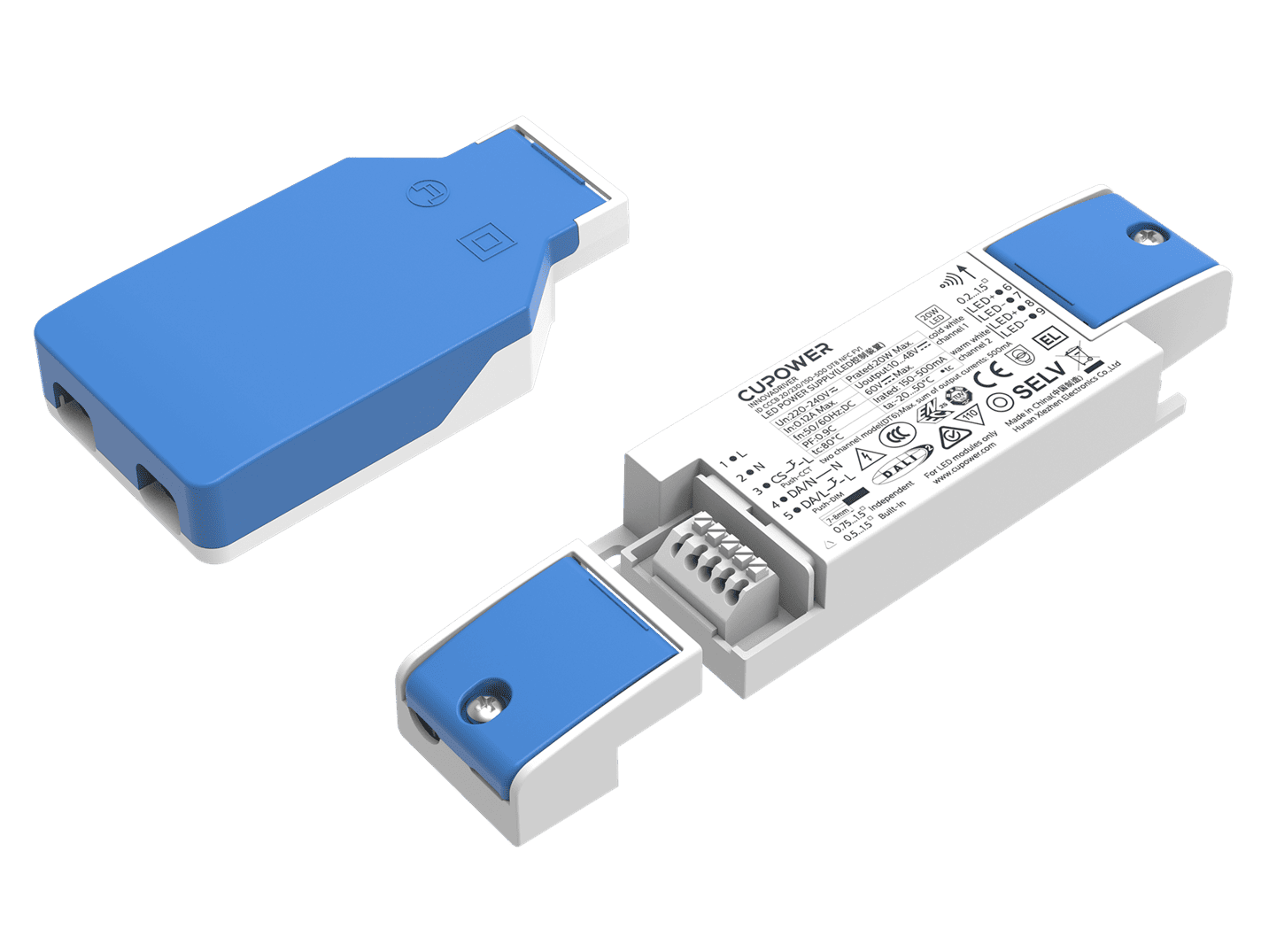

  • 新30 - 副本
Questions Order a Sample
Product description
Isolated adjustable power color temperature LED driver
Flicker-free LED driver
Supports DALI-2, push dimming, push CCT control
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Current adjustment via NFC
Output current 150…500 mA
Max. output power 20 W
DC emergency ：Current output default value 100%
For luminaires with IEC protection class l,II
5 years warranty
Swipe for more
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...278 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.12 A @ 230 Vac
THD:< 10%
Inrush current [Aµs]:Inrush current lpeak: 4.5 A, Inrush current Twidth: 38 μs
MCB Quantity B10A:77
MCB Quantity C10A:77
MCB Quantity B16A:123
MCB Quantity C16A:123
Output current tolerance:

± 5%

Output voltage max:≤ 60 Vdc
Ripple:5%
Standby power consumption:< 0.5 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/P-O/P: 3.75KVac,＜5mA 60 sec

Product nameOutput currentInput


               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID CCCB 20/230/150-500 DT8 NFC FV1150...500 mA

220...240 Vac

220...240 Vdc

10...48 V85%± 5%0.9


Operating temperature:-20…+50°C
Storage temperature: -40…+80°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 80°C: 50,000 hrs; at Tc 70°C: 100,000 hrs @ 230 Vac
Maximum Tc temperature:80°C
Pcs./ carton:24 pcs
Carton size:226 x 144 x 100 mm
Gross weight:2.5 kg
