680010 ID CCCB 60/230/700-1500 DT8 NFC FV1

< Back

L135 x W70 x H21 mm

WT: 0.242 kg

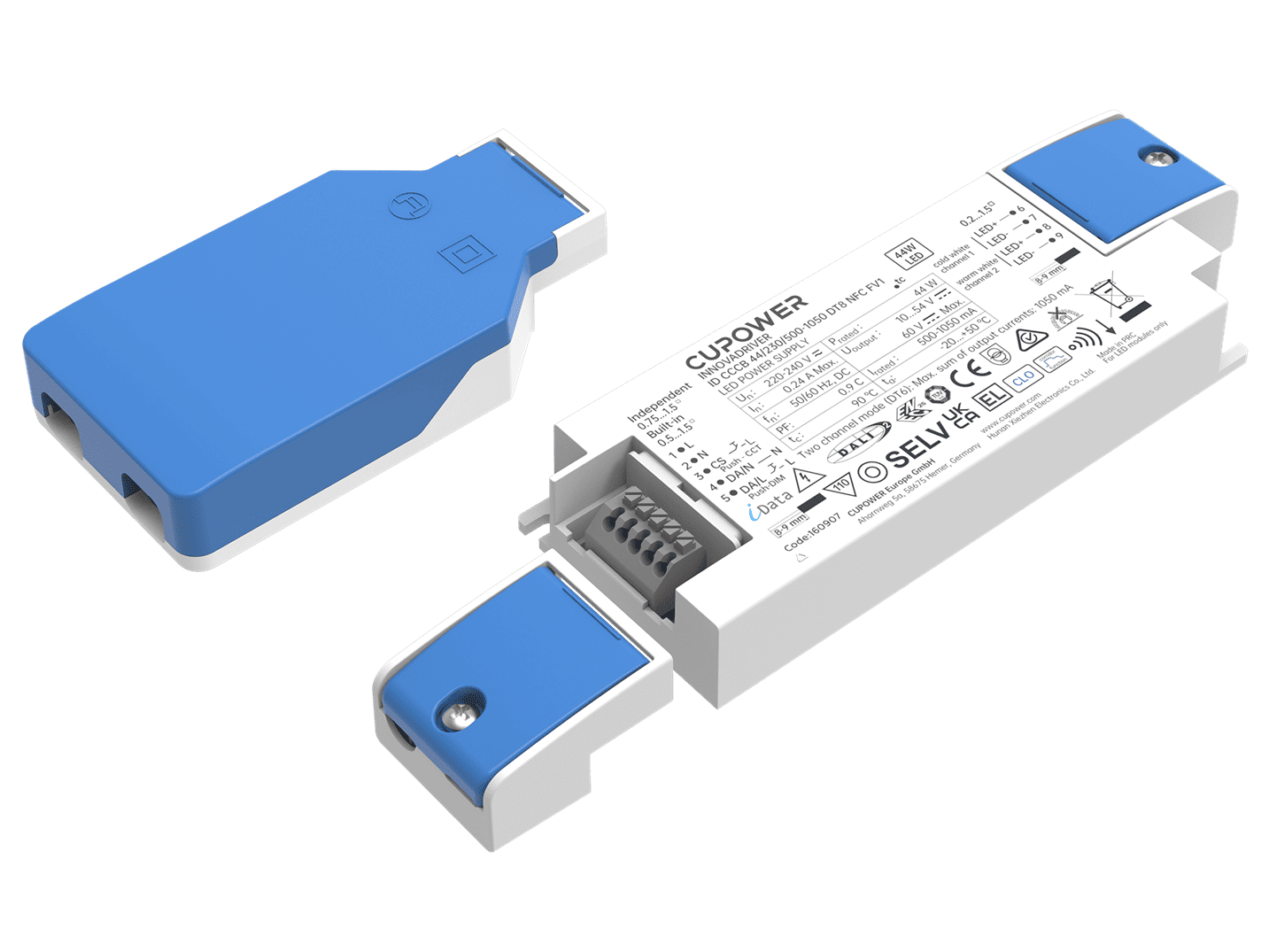

  • 新60 - 副本
Questions Order a Sample
Product description
Isolated adjustable power color temperature LED driver
Supports DALI-2, push DIM control, push CCT control
Usable as DT6 (2-channel) or DT8 (tunable white) driver
Current adjustment via NFC
Supports i-Data function (DALI part 251, 252, 253)
Output current 700…1500 mA
Max. output power 60 W
DC emergency
Flicker-free, dimming range 1%...100% (amplitude dimming)
Current output default value 100%
For luminaires with IEC protection class l, ll
Anti-glow
Rated input voltage range:220...240 Vac
Max.input voltage range:198...264 Vac
Rated input current DC range:220...240 Vdc
DC operation voltage range:176...276 Vdc
Safety frequency range:0/50/60 Hz
Rated input current:0.34 A @ 230 Vac & 0.34 A @ 230 Vdc
THD:≤ 10%
Inrush current:Inrush current lpeak: 8.04 A、Inrush current Twidth: 50 μs
MCB quantity B10A:27
MCB quantity C10A:27
MCB quantity B16A:43
MCB quantity C16A:43
Output current tolerance:

± 5%

Output voltage max:60 Vdc
Ripple:≤ 5%
Standby power consumption:≤ 0.3 W
Output PstLM:≤ 1 at full load @ rated input voltage
Output SVM:≤ 0.4 at full load @ rated input voltage
Dimming mode:DALI-2, Push Dimming
Dimming range:1％...100％
Adjustable output current:NFC
Withstand voltage:

I/P-O/P: 3.0KVac,＜5mA 60 sec,I/P-DA: 1.5KVac,＜5mA 60 sec；O/P-DA: 1.5VKac,＜5mA 60 sec

Product nameOutput

               current		Input


               voltage		Output

               voltage		Efficiency
               @full load		Current accuracyPower factor
ID CCCB 60/230/700-1500 DT8 NFC FV1700...1500 mA

220...240 Vac

220...240 Vdc

10...54 Vdc

90% ( @ 54 V 1100 mA)

± 5%> 0.9


Operating temperature: -20…+50°C
Storage temperature: -25…+85°C
Working humidity:10%…90%
Store humidity:5%...95%
Driver lifetime:at Tc 80°C: 50,000 hrs @230 Vac
Maximum Tc temperature:90°C
Pcs./ carton:24 pcs
Carton size:280 x 220 x 114 mm
Gross weight:6.4 kg
